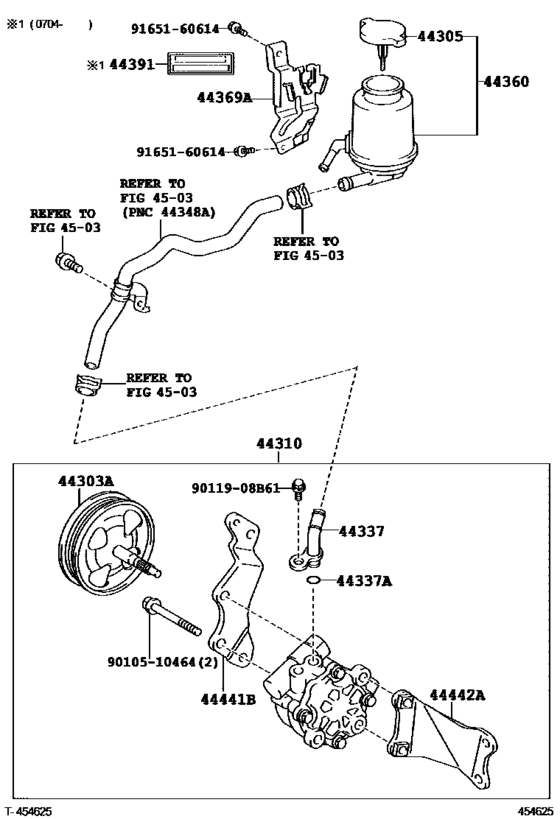

Vane Pump & Reservoir (Power Steering) ([08.2006 - ] (0608- )SCP4#) Diagram Toyota VIOS
- Year
- 2006 - 2008
- Sales region
- General
- Frame
- SCP42
- grade
- GLI
- ENGINE
- 3SZFE
- TRANSMISSION
- MTM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 08.2006
- To
- 02.2008
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44303A
|
44303A
44303-52050
Shaft Sub-Assy, W/pulley
[08.2006 -] SCP4# |
44303-52050 |
— | ||
|
44305
|
44305
44305-28030
Cap Sub-Assy, Vane Pump Oil Reservoir
[08.2006 - 01.2008] SCP4# |
44305-28030 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-28061 Cap Sub-Assy, Vane Pump Oil Reservoir[08.2006 - 01.2008] SCP4# |
44305-28061 |
from US $15.54 |
||
|
44310
|
44310
44310-0D030
Pump Assy, Vane
[08.2006 -] SCP4# |
44310-0D030 |
— | ||
|
44337
|
44337
44337-28120 Union, Power Steering Suction PortPOWER STEERING SUCTION PORT [08.2006 -] SCP4# |
44337-28120 |
US $22.42 |
||
|
44337A
|
44337A
90301-11020 Ring, O, No.1(For Vane Pump Housing)[08.2006 -] SCP4# |
90301-11020 |
from US $2.18 |
||
|
44360
|
44360
44360-52020
Reservoir Assy, Vane Pump Oil
[08.2006 -] SCP4# |
44360-52020 |
— | ||
|
44369A
|
44369A
44390-52010 Bracket, Oil Reservoir, No.1OIL RESERVOIR, NO.1 [08.2006 -] SCP4# |
44390-52010 |
US $23.15 |
||
|
44391
|
44391
44391-33010
Plate, Power Steering Oil Reservoir Caution
[04.2007 -] SCP4# |
44391-33010 |
— | ||
|
44441B
|
44441B
44441-52030
Bracket, Pump, Front
[08.2006 -] SCP4# |
44441-52030 |
— | ||
|
44442A
|
44442A
44442-52040
Bracket, Vane Pump, Rear
[08.2006 -] SCP4# |
44442-52040 |
— | ||
|
9011908B61
|
9011908B61
90119-08B61 New Genuine Part |
90119-08B61 |
US $0.87 |
||
|
9010510464
|
9010510464
90105-10464 New Genuine Part |
90105-10464 |
US $3.76 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
