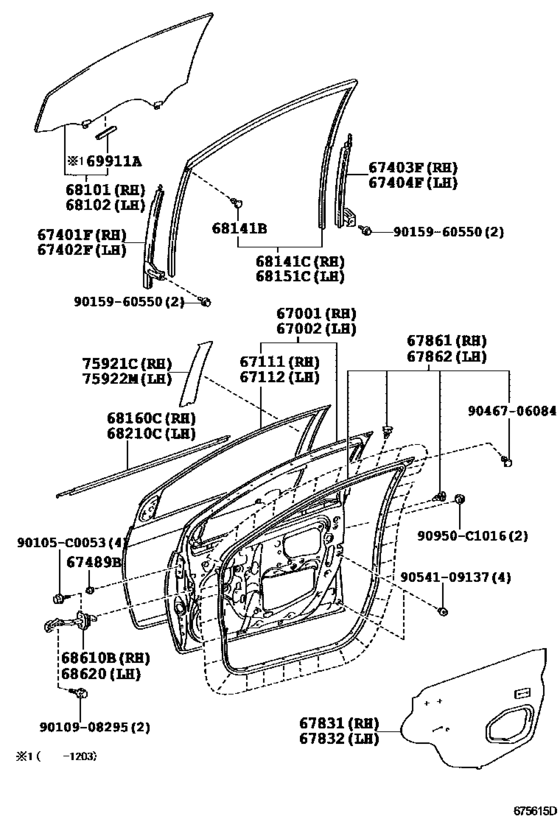

Front Door Panel & Glass ([02.2008 - ] DOOR PANEL (0802- )) Diagram Toyota VIOS
- Year
- 2008 - 2013
- Sales region
- General
- Frame
- ZSP92
- grade
- GLI
- ENGINE
- 1ZRFE
- TRANSMISSION
- ATM
- Model
- VIOS (CHINA)
- From
- 02.2008
- To
- 07.2013
- Gear Shift Type
- 4FC
- Vehicle Model
- VIOS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-0D210
Panel Sub-Assy, Front Door, Rh
[02.2008 - 08.2010] NCP92,ZSP92 |
67001-0D210 |
— | ||
|
67002
|
67002
67002-0D210 Panel Sub-Assy, Front Door, LhFRONT DOOR, LH [02.2008 - 08.2010] NCP92,ZSP92 |
67002-0D210 |
US $757.28 |
||
|
67111
|
67111
67111-0D090
Panel, Front Door, Outer Rh
[02.2008 - 08.2010] NCP92,ZSP92 |
67111-0D090 |
— | ||
|
67112
|
67112
67112-0D090
Panel, Front Door, Outer Lh
[02.2008 - 08.2010] NCP92,ZSP92 |
67112-0D090 |
— | ||
|
67401F
|
67401F
67401-0D030
Frame Sub-Assy, Front Door, Front Lower Rh
[02.2008 - 08.2010] NCP92,ZSP92 |
67401-0D030 |
— | ||
|
67402F
|
67402F
67402-0D030
Frame Sub-Assy, Front Door, Front Lower Lh
[02.2008 - 08.2010] NCP92,ZSP92 |
67402-0D030 |
— | ||
|
67403F
|
67403F
67403-0D060
Frame Sub-Assy, Front Door, Rear Lower Rh
[02.2008 - 08.2010] NCP92,ZSP92 |
67403-0D060 |
— | ||
|
67404F
|
67404F
67404-0D060
Frame Sub-Assy, Front Door, Rear Lower Lh
[02.2008 - 08.2010] NCP92,ZSP92 |
67404-0D060 |
— | ||
|
67489B
|
67489B
67489-0D020
Packing, Front Door Lower Cover
[02.2008 - 08.2010] NCP92,ZSP92 |
67489-0D020 |
— | ||
|
67831
|
67831
67831-0D140
Cover, Front Door Service Hole, Rh
[02.2008 - 08.2010] NCP92,ZSP92 |
67831-0D140 |
— | ||
|
67832
|
67832
67832-0D090
Cover, Front Door Service Hole, Lh
[02.2008 - 08.2010] NCP92,ZSP92 |
67832-0D090 |
— | ||
|
67861
|
67861
67861-0D110
Weatherstrip, Front Door, Rh
[02.2008 - 08.2010] NCP92,ZSP92 |
67861-0D110 |
— | ||
|
67862
|
67862
67862-0D110
Weatherstrip, Front Door, Lh
[02.2008 - 08.2010] NCP92,ZSP92 |
67862-0D110 |
— | ||
|
68101
|
68101
68110-0D140
Glass Sub-Assy, Front Door, Rh
[02.2008 - 08.2010] NCP92,ZSP92 *TEM,T=3.1,GREEN |
68110-0D140 |
— | ||
|
68101
|
68101
68110-0D141
Glass Sub-Assy, Front Door, Rh
[07.2012 - 07.2013] NCP92,ZSP92 *TEM,T=3.1,GREEN |
68110-0D141 |
— | ||
|
68102
|
68102
68120-0D140
Glass Sub-Assy, Front Door, Lh
[02.2008 - 08.2010] NCP92,ZSP92 *TEM,T=3.1,GREEN |
68120-0D140 |
— | ||
|
68102
|
68102
68120-0D141
Glass Sub-Assy, Front Door, Lh
[07.2012 - 07.2013] NCP92,ZSP92 *TEM,T=3.1,GREEN |
68120-0D141 |
— | ||
|
68141B
|
68141B
90467-06084 Clip(For Headlamp Cover Seal)[02.2008 - 08.2010] NCP92,ZSP92 |
90467-06084 |
from US $1.28 |
||
|
68141C
|
68141C
68141-0D130
Run, Front Door Glass, Rh
[02.2008 - 08.2010] NCP92,ZSP92 |
68141-0D130 |
— | ||
|
68151C
|
68151C
68151-0D130
Run, Front Door Glass, Lh
[02.2008 - 08.2010] NCP92,ZSP92 |
68151-0D130 |
— | ||
|
68160C
|
68160C
68160-0D120
Weatherstrip Assy, Front Door Glass, Outer Rh
[02.2008 - 08.2010] NCP92,ZSP92 |
68160-0D120 |
— | ||
|
68210C
|
68210C
68210-0D120
Weatherstrip Assy, Front Door Glass, Outer Lh
[02.2008 - 08.2010] NCP92,ZSP92 |
68210-0D120 |
— | ||
|
68610B
|
68610B
68610-0D020
Check Assy, Front Door, Rh
[02.2008 - 08.2010] NCP92,ZSP92 |
68610-0D020 |
— | ||
|
68610B
|
68610B
68610-0D021
Check Assy, Front Door, Rh
[01.2011 -] NCP92,ZSP92..GLI,GLXI |
68610-0D021 |
— | ||
|
68620
|
68620
68620-0D020
Check Assy, Front Door, Lh
[02.2008 - 08.2010] NCP92,ZSP92 |
68620-0D020 |
— | ||
|
68620
|
68620
68620-0D021
Check Assy, Front Door, Lh
[01.2011 -] NCP92,ZSP92..GLI,GLXI |
68620-0D021 |
— | ||
|
69911A
|
69911A
69911-0D020
Channel, Front Door Glass, No.1
[02.2008 - 08.2010] NCP92,ZSP92 |
69911-0D020 |
— | ||
|
75921C
|
75921C
75921-0D030
Tape, Black Out, No.1 Rh
[02.2008 - 08.2010] ZSP92 |
75921-0D030 |
— | ||
|
75922M
|
75922M
75922-0D030
Tape, Black Out, No.1 Lh
[02.2008 - 08.2010] ZSP92 |
75922-0D030 |
— | ||
|
90105C0053
|
90105C0053
90105-C0053
New Genuine Part
|
90105-C0053 |
— | ||
|
90950C1016
|
90950C1016
90950-C1016
New Genuine Part
|
90950-C1016 |
— | ||
|
9010908295
|
9010908295
90109-08295 BOLT |
90109-08295 |
from US $0.90 |
||
|
9015960550
|
9015960550
90159-60550 New Genuine Part |
90159-60550 |
US $1.44 |
||
|
9046706084
|
9046706084
90467-06084 Clip(For Headlamp Cover Seal) |
90467-06084 |
from US $1.28 |
||
|
9054109137
|
9054109137
90541-09137 Cushion, Front Door Panel |
90541-09137 |
from US $1.60 |
