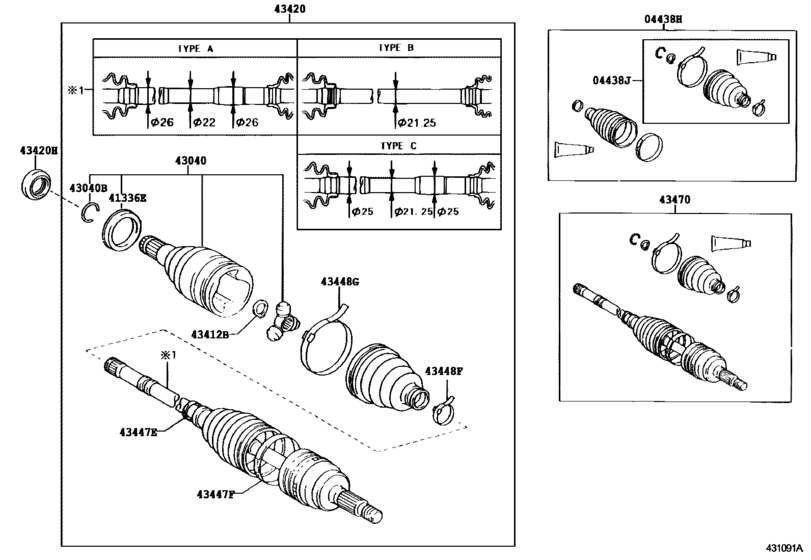

Front Drive Shaft ([09.1999 - ] ﾚﾌﾄ (9909- )NCP10,13,SCP13) Diagram Toyota VITZ
- Year
- 1999 - 2002
- Sales region
- Japan
- Frame
- NCP10
- grade
- CLA
- ENGINE
- 2NZFE
- TRANSMISSION
- ATM
- From
- 09.1999
- To
- 12.2002
- Gear Shift Type
- 4FC
- No.of Doors
- 3D
- Vehicle Model
- VITZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04438-52040 Boot Kit, Front Drive Shaft, In & Outboard, Rh[09.1999 - 12.2001] NCP10,13 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
04438-52040 |
US $145.60 |
||
| replacement | |||||
|
04438H
|
04438H
04438-52042 Boot Kit, Front Drive Shaft, In & Outboard, Rh[09.1999 - 12.2001] NCP10,13 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
04438-52042 |
US $141.52 |
||
|
04438H
|
04438H
04438-52041 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.2002 - 12.2002] NCP10 ＴＹＰＥ Ａ：イラスト参照; NCP10..RS TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
04438-52041 |
US $145.60 |
||
| replacement | |||||
|
04438H
|
04438H
04438-52042 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.2002 - 12.2002] NCP10 ＴＹＰＥ Ａ：イラスト参照; NCP10..RS TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
04438-52042 |
US $141.52 |
||
|
04438H
|
04438H
04438-52071 Boot Kit, Front Drive Shaft, In & Outboard, Rh[10.1999 - 12.2001] NCP10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
04438-52071 |
US $145.60 |
||
| replacement | |||||
|
04438H
|
04438H
04427-52240 Boot Kit, Front Drive Shaft, In & Outboard, Rh[10.1999 - 12.2001] NCP10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
04427-52240 |
from US $145.60 |
||
|
04438H
|
04438H
04438-52090 Boot Kit, Front Drive Shaft, In & Outboard, Rh[12.2001 - 08.2002] NCP10 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
04438-52090 |
US $145.60 |
||
| replacement | |||||
|
04438H
|
04438H
04438-52042 Boot Kit, Front Drive Shaft, In & Outboard, Rh[12.2001 - 08.2002] NCP10 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
04438-52042 |
US $141.52 |
||
|
04438H
|
04438H
04438-52122 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.2002 - 11.2002] NCP10..CLA,U TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
04438-52122 |
US $145.60 |
||
| replacement | |||||
|
04438H
|
04438H
04427-52171 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.2002 - 11.2002] NCP10..CLA,U TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
04427-52171 |
from US $100.46 |
||
|
04438J
|
04438J
04438-16101 Boot Kit, Front Drive Shaft Inboard Joint, Rh[10.1999 - 12.2001] NCP10 TYPE B OR TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
04438-16101 |
US $90.27 |
||
| replacement | |||||
|
04438J
|
04438J
04437-52140 Boot Kit, Front Drive Shaft Inboard Joint, Rh[10.1999 - 12.2001] NCP10 TYPE B OR TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
04437-52140 |
from US $70.01 |
||
|
04438J
|
04438J
04438-52030 Boot Kit, Front Drive Shaft Inboard Joint, Rh[09.1999 - 12.2001] NCP10,13 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
04438-52030 |
US $90.27 |
||
| replacement | |||||
|
04438J
|
04438J
04437-52191 Boot Kit, Front Drive Shaft Inboard Joint[09.1999 - 12.2001] NCP10,13 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
04437-52191 |
from US $75.70 |
||
|
41336E
|
41336E
41336-12010 Cover, Dust(For Differential Side Gear Shaft)[08.1999 - 12.2001] NCP1# |
41336-12010 |
from US $1.54 |
||
|
43040
|
43040
43403-10011
Joint Assy, Front Drive Inboard
[09.1999 - 12.2001] NCP10,13 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
43403-10011 |
— | ||
| replacement | |||||
|
43040
|
43040
43403-0W031 JOINT SET, FR AXLE[09.1999 - 12.2001] NCP10,13 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
43403-0W031 |
US $283.92 |
||
|
43040
|
43040
43403-16020 Joint Assy, Front Drive Inboard, Rh[12.2001 - 12.2002] NCP10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
43403-16020 |
US $211.41 |
||
|
43040B
|
43040B
90521-26004 Ring, Hole Snap (For Front Differential Side Gear Shaft)[01.1999 - 12.2001] NCP1#,SCP10 |
90521-26004 |
from US $1.60 |
||
|
43412B
|
43412B
43425-16010 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Lh)[12.2001 - 08.2002] NCP10 |
43425-16010 |
US $0.44 |
||
|
43412B
|
43412B
43425-16020 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[10.1999 - 12.2001] NCP10 TYPE B OR TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
43425-16020 |
US $0.44 |
||
|
43412B
|
43412B
90520-22001 Ring, Shaft Snap (For Front Drive Inner Shaft Inner)[09.1999 - 12.2001] NCP10,13 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
90520-22001 |
US $1.02 |
||
|
43420
|
43420
43420-52020 Shaft Assy, Front Drive, Lh[10.1999 - 08.2002] NCP10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
43420-52020 |
US $962.42 |
||
| replacement | |||||
|
43420
|
43420
43420-52131 Shaft Assy, Front Drive, LhFRONT DRIVE, LH [10.1999 - 08.2002] NCP10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
43420-52131 |
US $800.80 |
||
|
43420
|
43420
43420-52070 Shaft Assy, Front Drive, Lh[09.1999 - 12.2001] NCP10 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
43420-52070 |
US $666.85 |
||
|
43420
|
43420
43420-52130 Shaft Assy, Front Drive, Lh[08.2002 - 12.2002] NCP10..RS; NCP10..CLA,U TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
43420-52130 |
US $800.80 |
||
| replacement | |||||
|
43420
|
43420
43420-52131 Shaft Assy, Front Drive, LhFRONT DRIVE, LH [08.2002 - 12.2002] NCP10..RS; NCP10..CLA,U TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
43420-52131 |
US $800.80 |
||
|
43420H
|
43420H
90311-34026 Oil Seal, Front Drive Shaft, Lh[08.1999 - 12.2001] NCP10,15..4FC |
90311-34026 |
from US $7.52 |
||
|
43447E
|
43447E
42345-16170 Clamp (For Front Axle Outboard Joint Boot Rh)[12.2001 - 12.2002] NCP10 TYPE B OR TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
42345-16170 |
US $4.80 |
||
| replacement | |||||
|
43447E
|
43447E
42345-52240 Clamp (For Front Axle Outboard Joint Boot Rh)[12.2001 - 12.2002] NCP10 TYPE B OR TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
42345-52240 |
US $2.77 |
||
|
43447E
|
43447E
42345-52110 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[08.1999 - 12.2001] NCP1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
42345-52110 |
US $4.80 |
||
| replacement | |||||
|
43447E
|
43447E
42345-52260 Clamp (For Front Axle Outboard Joint Boot Rh)[08.1999 - 12.2001] NCP1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
42345-52260 |
US $3.52 |
||
|
43447F
|
43447F
42345-16180 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[12.2001 - 08.2002] NCP10..RS 内径＝８２．１,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ; NCP10 内径＝８２．１,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
42345-16180 |
US $6.84 |
||
|
43447F
|
43447F
42345-52100 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[08.1999 - 12.2001] NCP1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
42345-52100 |
US $6.99 |
||
| replacement | |||||
|
43447F
|
43447F
42345-52250 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[08.1999 - 12.2001] NCP1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
42345-52250 |
US $5.28 |
||
|
43447F
|
43447F
42345-52180 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[08.2002 - 12.2002] NCP10..CLA,U; NCP10..RS TYPE B OR TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
42345-52180 |
US $6.41 |
||
| replacement | |||||
|
43447F
|
43447F
42345-52230 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[08.2002 - 12.2002] NCP10..CLA,U; NCP10..RS TYPE B OR TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
42345-52230 |
US $4.22 |
||
|
43448F
|
43448F
42345-16140 Clamp (For Front Axle Outboard Joint Boot Rh)[12.2001 - 12.2002] NCP10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
42345-16140 |
US $2.48 |
||
|
43448F
|
43448F
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[09.1999 - 12.2001] NCP10,13 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
90949-01078 |
US $0.61 |
||
|
43448G
|
43448G
42345-16150 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[12.2001 - 12.2002] NCP10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
42345-16150 |
US $3.20 |
||
|
43448G
|
43448G
90949-01146 Clamp, No.2 (For Front Axle Inboard Joint Boot Setting)[09.1999 - 12.2001] NCP10,13 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
90949-01146 |
US $4.54 |
||
|
43470
|
43470
43470-59045 Shaft Assy, Front Drive Outboard Joint, Lh[09.1999 - 12.2001] NCP10,13 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
43470-59045 |
US $666.85 |
||
| replacement | |||||
|
43470
|
43470
43470-59456 Shaft Assy, Front Drive Outboard Joint, LhFRONT DRIVE OUTBOARD JOINT, LH [09.1999 - 12.2001] NCP10,13 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
43470-59456 |
US $444.08 |
||
|
43470
|
43470
43470-59065 Shaft Assy, Front Drive Outboard Joint, Lh[12.2001 - 08.2002] NCP10..RS TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ; NCP10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
43470-59065 |
US $653.74 |
||
| replacement | |||||
|
43470
|
43470
43470-59466 Shaft Assy, Front Drive Outboard Joint, LhFRONT DRIVE OUTBOARD JOINT, LH [12.2001 - 08.2002] NCP10..RS TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ; NCP10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
43470-59466 |
US $544.54 |
||
|
43470
|
43470
43470-59115 Shaft Assy, Front Drive Outboard Joint, Lh[08.2002 - 12.2002] NCP10 ＴＹＰＥ Ｂ：イラスト参照 |
43470-59115 |
US $655.20 |
||
| replacement | |||||
|
43470
|
43470
43470-59466 Shaft Assy, Front Drive Outboard Joint, LhFRONT DRIVE OUTBOARD JOINT, LH [08.2002 - 12.2002] NCP10 ＴＹＰＥ Ｂ：イラスト参照 |
43470-59466 |
US $544.54 |
||
