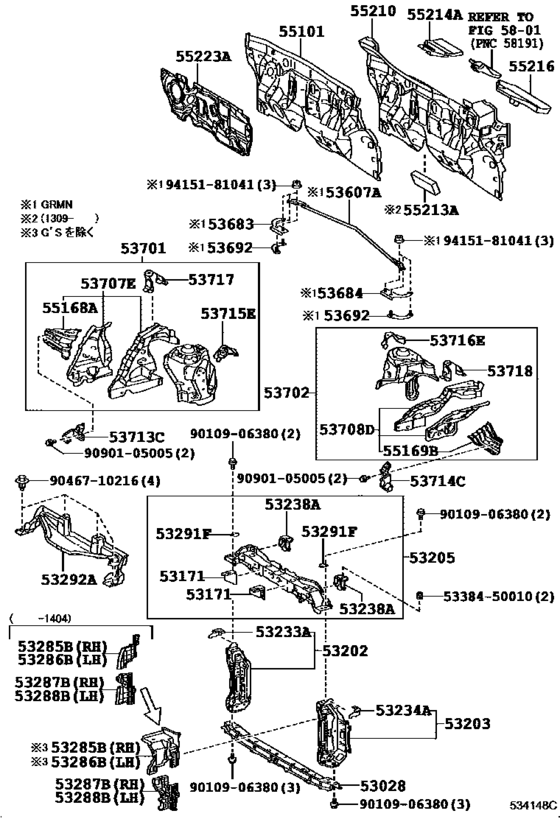

Front Fender Apron & Dash Panel ([12.2010 - ] (1012- )RS) Diagram Toyota VITZ
- Year
- 2010 - 2017
- Sales region
- Japan
- Frame
- NCP131
- grade
- RS
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- From
- 12.2010
- To
- 01.2017
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- VITZ
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53028
|
53028
53028-52070 Support Sub-Assy, Radiator, Lower[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
53028-52070 |
from US $110.72 |
||
|
53171
|
53171
53171-52030 Retainer, Radiator Support[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU 右側 |
53171-52030 |
US $14.27 |
||
|
53171
|
53171
53171-52070 Retainer, Radiator Support[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU 左側 |
53171-52070 |
US $7.43 |
||
|
53202
|
53202
53202-52908 Support Sub-Assy, Radiator, Rh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
53202-52908 |
from US $89.10 |
||
|
53203
|
53203
53203-52906 Support Sub-Assy, Radiator, Lh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
53203-52906 |
US $113.96 |
||
|
53205
|
53205
53205-52904 Support Sub-Assy, Radiator, Upper[12.2010 - 07.2013] KSP130,NCP131,NSP13#..CBU |
53205-52904 |
US $87.36 |
||
| replacement | |||||
|
53205
|
53205
53205-52907 Support Sub-Assy, Radiator, Upper[12.2010 - 07.2013] KSP130,NCP131,NSP13#..CBU |
53205-52907 |
US $137.64 |
||
|
53205
|
53205
53205-52907 Support Sub-Assy, Radiator, Upper[08.2013 - 04.2014] KSP130,NCP131,NSP13#..CBU |
53205-52907 |
US $137.64 |
||
|
53233A
|
53233A
53233-52050 Bracket, Headlamp, No.1 Rh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
53233-52050 |
US $11.07 |
||
|
53234A
|
53234A
53234-52060 Bracket, Headlamp, No.1 Lh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
53234-52060 |
US $11.07 |
||
|
53238A
|
53238A
53238-52030 Bracket, Hood Bumper Mounting[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
53238-52030 |
US $9.03 |
||
|
53285B
|
53285B
53285-52390 Seal, Radiator Side Air, No.1[12.2010 - 04.2014] NCP131..RS |
53285-52390 |
US $11.97 |
||
|
53285B
|
53285B
53285-52470 Seal, Radiator Side Air, No.1[04.2014 -] NCP131..RS |
53285-52470 |
US $15 |
||
|
53286B
|
53286B
53286-52310 Seal, Radiator Side Air, No.2[12.2010 - 04.2014] NCP131..RS |
53286-52310 |
US $11.97 |
||
|
53286B
|
53286B
53286-52390 Seal, Radiator Side Air, No.2[04.2014 -] NCP131..RS |
53286-52390 |
US $16.31 |
||
|
53287B
|
53287B
53287-52150 Extension, Radiator Support, Rh[12.2010 - 04.2014] NCP131..RS |
53287-52150 |
US $21 |
||
|
53287B
|
53287B
53287-52230 Extension, Radiator Support, Rh[04.2014 -] NCP131..RS |
53287-52230 |
US $16.60 |
||
|
53287B
|
53287B
53287-WY010 Extension, Radiator Support, Rh[10.2011 - 04.2014] NCP131..RS Ｇ’ｓ |
53287-WY010 |
US $13.69 |
||
|
53288B
|
53288B
53288-52150 Extension, Radiator Support, Lh[12.2010 - 04.2014] NCP131..RS |
53288-52150 |
US $14.27 |
||
|
53288B
|
53288B
53288-52220 Extension, Radiator Support, Lh[04.2014 -] NCP131..RS |
53288-52220 |
US $15.87 |
||
|
53288B
|
53288B
53288-WY010 Extension, Radiator Support, Lh[10.2011 - 04.2014] NCP131..RS Ｇ’ｓ |
53288-WY010 |
US $11.07 |
||
|
53291F
|
53291F
53291-52070 Seal, Radiator Support To Frame[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
53291-52070 |
US $4.80 |
||
|
53292A
|
53292A
53292-52040 Seal, Radiator Support, Upper[04.2014 -] NCP131..RS |
53292-52040 |
US $33.31 |
||
|
53607A
|
53607A
53607-52010 Brace Sub-Assy, Front Suspension, Upper Center[09.2013 - 02.2014] NCP131..5F ＧＲＭＮ |
53607-52010 |
US $88.82 |
||
|
53683
|
53683
53683-52010 Bracket, Front Suspension Upper To Cowl Brace, Rh[09.2013 - 02.2014] NCP131..5F ＧＲＭＮ |
53683-52010 |
US $22.28 |
||
|
53684
|
53684
53684-52010 Bracket, Front Suspension Upper To Cowl Brace, Lh[09.2013 - 02.2014] NCP131..5F ＧＲＭＮ |
53684-52010 |
US $22.28 |
||
|
53692
|
53692
53692-52010 Bracket, Front Suspension Upper Brace[09.2013 - 02.2014] NCP131..5F ＧＲＭＮ |
53692-52010 |
US $15.14 |
||
|
53701
|
53701
53701-52190 Apron Sub-Assy, Front Fender, Rh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
53701-52190 |
US $245.31 |
||
|
53702
|
53702
53702-52190 Apron Sub-Assy, Front Fender, Lh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
53702-52190 |
US $245.31 |
||
|
53707E
|
53707E
53707-52030 Apron Sub-Assy, Fender Side, Rh[12.2010 - 10.2011] KSP130,NCP131,NSP13#..CBU |
53707-52030 |
US $131.04 |
||
|
53707E
|
53707E
53707-52060 Apron Sub-Assy, Fender Side, Rh[10.2011 - 04.2014] KSP130,NCP131,NSP13#..CBU |
53707-52060 |
US $97.68 |
||
|
53708D
|
53708D
53708-52030 Apron Sub-Assy, Fender Side, Lh[12.2010 - 10.2011] KSP130,NCP131,NSP13#..CBU |
53708-52030 |
US $131.04 |
||
|
53708D
|
53708D
53708-52060 Apron Sub-Assy, Fender Side, Lh[10.2011 - 04.2014] KSP130,NCP131,NSP13#..CBU |
53708-52060 |
US $116.92 |
||
|
53713C
|
53713C
53713-52070 Extension, Front Fender Apron, Front Rh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
53713-52070 |
US $20.22 |
||
|
53714C
|
53714C
53714-52080 Extension, Front Fender Apron, Front Lh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
53714-52080 |
US $15 |
||
| replacement | |||||
|
53714C
|
53714C
53714-52100 Extension, Front Fender Apron, Front Lh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
53714-52100 |
US $20.37 |
||
|
53714C
|
53714C
53714-52100 Extension, Front Fender Apron, Front Lh[10.2016 -] NCP131..RS |
53714-52100 |
US $20.37 |
||
|
53715E
|
53715E
53715-52030 Extension, Front Fender Apron, Rear Rh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
53715-52030 |
US $11.84 |
||
|
53716E
|
53716E
53716-52030 Extension, Front Fender Apron, Rear Lh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
53716-52030 |
US $14.40 |
||
|
53717
|
53717
53717-52110 Plate, Fender Apron, Rh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
53717-52110 |
US $10.72 |
||
|
53718
|
53718
53718-52110 Plate, Fender Apron, Lh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
53718-52110 |
US $10.72 |
||
|
55101
|
55101
55101-52511 Panel Sub-Assy, Dash[04.2014 -] NCP131..5F |
55101-52511 |
US $170.35 |
||
|
55101
|
55101
55101-52690
Panel Sub-Assy, Dash
[12.2010 - 04.2014] NCP131..5F |
55101-52690 |
— | ||
| replacement | |||||
|
55101
|
55101
55101-52471
Panel Sub-Assy, Dash
[12.2010 - 04.2014] NCP131..5F |
55101-52471 |
— | ||
|
55168A
|
55168A
55168-52130 Bracket, Front Fender Mounting, Rh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
55168-52130 |
US $22.19 |
||
|
55169B
|
55169B
55169-52130 Bracket, Front Fender Mounting, Lh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
55169-52130 |
US $22.19 |
||
|
55210
|
55210
55210-52310 Insulator Assy, Dash Panel[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
55210-52310 |
US $112.11 |
||
|
55210
|
55210
55210-52400 Insulator Assy, Dash Panel[04.2014 -] NCP131..RS |
55210-52400 |
US $112.11 |
||
|
55213A
|
55213A
55213-52190 Pad, Dash Panel Silencer[09.2013 - 04.2014] KSP130,NCP131,NSP13#..CBU |
55213-52190 |
US $2.77 |
||
|
55214A
|
55214A
55214-52160 Pad, Dash Panel Insulator, No.2[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
55214-52160 |
US $11.84 |
||
|
55216
|
55216
55216-52010 Pad, Dash Panel Insulator, No.4[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
55216-52010 |
US $37.85 |
||
|
55223A
|
55223A
55223-52101 Insulator, Dash Panel, Outer[09.2013 - 02.2014] NCP131..5F ＧＲＭＮ |
55223-52101 |
US $51.83 |
||
|
55223A
|
55223A
55223-52120 Insulator, Dash Panel, Outer[12.2010 - 07.2013] NCP131,NSP13#..(RS,U)..CBU |
55223-52120 |
US $78.62 |
||
| replacement | |||||
|
55223A
|
55223A
55223-52121 Insulator, Dash Panel, Outer[12.2010 - 07.2013] NCP131,NSP13#..(RS,U)..CBU |
55223-52121 |
US $70.76 |
||
|
55223A
|
55223A
55223-52121 Insulator, Dash Panel, Outer[08.2013 - 04.2014] NCP131,NSP13#..(RS,U)..CBU |
55223-52121 |
US $70.76 |
||
|
5338450010
|
5338450010
53384-50010 Cushion, Hood Bumper |
53384-50010 |
from US $5.44 |
||
|
9010906380
|
9010906380
90109-06380 BOLT |
90109-06380 |
US $0.96 |
||
|
9046710216
|
9046710216
90467-10216 Clip, Engine Under Cover, No.2 |
90467-10216 |
from US $1.19 |
||
|
9090105005
|
9090105005
90901-05005 New Genuine Part |
90901-05005 |
US $1.44 |
||
|
9415181041
|
9415181041
94151-81041 New Genuine Part |
94151-81041 |
US $1.60 |
||
