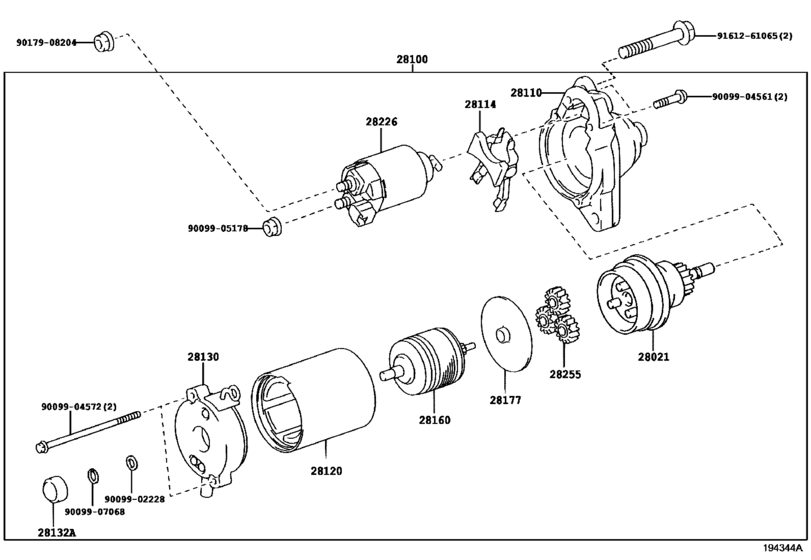

Starter ([04.2014 - ] 12V 1.3KW (1404- )1NZFE) Diagram Toyota VITZ
- Year
- 2010 - 2017
- Sales region
- Japan
- Frame
- NCP131
- grade
- RS
- ENGINE
- 1NZFE
- TRANSMISSION
- MTM
- From
- 12.2010
- To
- 01.2017
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- VITZ
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28021
|
28021
28021-21060 Clutch Sub-Assy, Starter Center Bearing[04.2014 -] 1NZFE..NCP131..RS 寒冷地仕様 |
28021-21060 |
from US $63.73 |
||
|
28021
|
28021
28021-21070 Clutch Sub-Assy, Starter Center Bearing[07.2016 -] 1NZFE..NCP131..RS |
28021-21070 |
US $90.27 |
||
|
28100
|
28100
28100-21070 Starter Assy[12.2010 - 04.2014] 1NZFE..NCP131 １２Ｖ １．０ＫＷ |
28100-21070 |
US $687.23 |
||
|
28100
|
28100
28100-21080 Starter Assy[12.2010 - 04.2014] 1NZFE..NCP131 １２Ｖ １．２ＫＷ,寒冷地仕様 |
28100-21080 |
US $739.65 |
||
|
28100
|
28100
28100-21110 Starter Assy[04.2014 -] 1NZFE..NCP131..RS １２Ｖ １．３ＫＷ,寒冷地仕様 |
28100-21110 |
US $739.65 |
||
|
28110
|
28110
28110-21061
Housing Assy, Starter Drive
[04.2014 -] 1NZFE..NCP131..RS 寒冷地仕様 |
28110-21061 |
— | ||
|
28114
|
28114
28114-21060 Pin, Starter Drive Lever Set[04.2014 -] 1NZFE..NCP131..RS 寒冷地仕様 |
28114-21060 |
from US $0.92 |
||
|
28120
|
28120
28120-28080 Yoke Assy, Starter[04.2014 -] 1NZFE..NCP131..RS 寒冷地仕様 |
28120-28080 |
US $111.82 |
||
|
28130
|
28130
28130-21061 Frame Assy, Starter Commutator EndSTARTER COMMUTATOR END [04.2014 -] 1NZFE..NCP131..RS 寒冷地仕様 |
28130-21061 |
US $16.60 |
||
|
28132A
|
28132A
28132-28040 Cover, Starter Bearing(For Drive Housing)[04.2014 -] 1NZFE..NCP131..RS 寒冷地仕様 |
28132-28040 |
US $1.75 |
||
|
28160
|
28160
28160-21060 Armature Assy, Starter[04.2014 -] 1NZFE..NCP131..RS 寒冷地仕様 |
28160-21060 |
from US $97.60 |
||
|
28160
|
28160
28160-21070 Armature Assy, Starter[12.2010 - 04.2014] 1N#..NCP131,NSP13#..CBU |
28160-21070 |
US $125.80 |
||
|
28160
|
28160
28160-21080 Armature Assy, Starter[12.2010 - 04.2014] 1N#..NCP131,NSP13#..CBU 寒冷地仕様 |
28160-21080 |
US $138.32 |
||
|
28177
|
28177
28177-28040 Plate(For Starter Armature)[04.2014 -] 1NZFE..NCP131..RS 寒冷地仕様 |
28177-28040 |
US $4.19 |
||
|
28226
|
28226
28226-21080
Starter Kit, Battery Terminal
[12.2010 - 04.2014] 1N#..NCP131,NSP13#..CBU |
28226-21080 |
— | ||
| replacement | |||||
|
28226
|
28226
28226-21081
Starter Kit, Battery Terminal
[12.2010 - 04.2014] 1N#..NCP131,NSP13#..CBU |
28226-21081 |
— | ||
|
28226
|
28226
28226-21081
Starter Kit, Battery Terminal
[09.2014 -] 1NZFE..NCP131..RS |
28226-21081 |
— | ||
|
28226
|
28226
28226-22061 Starter Kit, Battery Terminal[04.2014 -] 1NZFE..NCP131..RS 寒冷地仕様 |
28226-22061 |
US $103.08 |
||
|
28255
|
28255
28255-28040 Gear, Planet[04.2014 -] 1NZFE..NCP131..RS 寒冷地仕様 |
28255-28040 |
from US $4.10 |
||
|
9009902228
|
9009902228
90099-02228 WASHER |
90099-02228 |
US $0.55 |
||
|
9009904561
|
9009904561
90099-04561
BOLT
|
90099-04561 |
— | ||
|
9009904572
|
9009904572
90099-04572
BOLT
|
90099-04572 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9009907068
|
9009907068
90099-07068 RING SNAP |
90099-07068 |
US $0.28 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9161261065
|
9161261065
91612-61065 Bolt(For Transaxle & Engine Setting) |
91612-61065 |
US $2.56 |
||
| replacement | |||||
|
9161261065
|
9161261065
90119-A0104 Bolt with Washer |
90119-A0104 |
US $3.72 |
||
