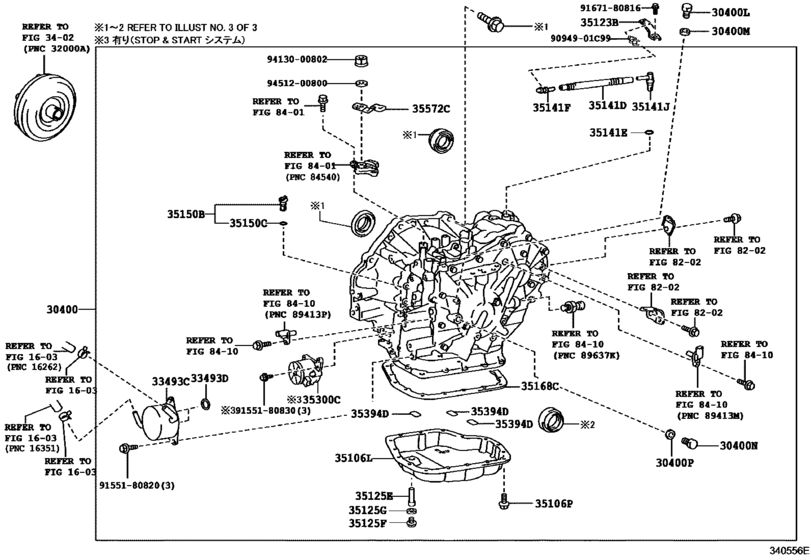

Transaxle Assy(Cvt) ([04.2014 - ] K312 (1404- )NCP131..CVT) Diagram Toyota VITZ
- Year
- 2010 - 2017
- Sales region
- Japan
- Frame
- NCP131
- grade
- U
- ENGINE
- 1NZFE
- TRANSMISSION
- CVT
- From
- 12.2010
- To
- 01.2017
- No.of Doors
- 5D
- Vehicle Model
- VITZ
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30400
|
30400
30400-12130 Transaxle Assy, Continuously Variable[04.2014 - 01.2017] NCP131..U Ｋ３１２,”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ） |
30400-12130 |
US $4,673.76 |
||
|
30400
|
30400
30400-12140 Transaxle Assy, Continuously Variable[04.2014 - 01.2017] NCP131..U Ｋ３１２ |
30400-12140 |
US $4,236.96 |
||
|
30400
|
30400
30400-52240 Transaxle Assy, Continuously Variable[12.2010 - 05.2012] NCP131..CVT Ｋ３１０ |
30400-52240 |
US $5,620.16 |
||
| replacements | |||||
|
30400
|
30400
30400-52242 Transaxle Assy, Continuously Variable[12.2010 - 05.2012] NCP131..CVT Ｋ３１０ |
30400-52242 |
US $4,673.76 |
||
|
30400
|
30400
82711-1E660 Wire, Fuse To Fuse(for Combustion Heater)[12.2010 - 05.2012] NCP131..CVT Ｋ３１０ |
82711-1E660 |
US $3.49 |
||
|
30400
|
30400
30400-52242 Transaxle Assy, Continuously Variable[05.2012 - 04.2014] NCP131..CVT Ｋ３１０ |
30400-52242 |
US $4,673.76 |
||
|
30400L
|
30400L
90341-12025 Plug, No.4[12.2010 - 04.2014] NCP131,NSP135..CVT..CBU |
90341-12025 |
US $3.04 |
||
|
30400M
|
30400M
90430-12221 Gasket[12.2010 - 04.2014] NCP131,NSP135..CVT..CBU |
90430-12221 |
from US $1.13 |
||
|
30400N
|
30400N
90341-18061 Plug, Hole (CVT TC)[12.2010 - 03.2012] NCP131,NSP135..CVT..CBU 識別記号＝ＴＣ |
90341-18061 |
US $4.96 |
||
|
30400N
|
30400N
90341-18077 Plug , Filler(CVT FE)[03.2012 - 04.2014] NCP131,NSP135..CVT..CBU 識別記号＝ＦＥ |
90341-18077 |
US $3.04 |
||
|
30400P
|
30400P
90430-18008 Gasket[12.2010 - 04.2014] NSP135..CBU; KSP130,NCP131,NSP130..CVT..CBU |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
30400P
|
30400P
90430-T0021
Gasket(For Manual Transmission Filler Plug)
[12.2010 - 04.2014] NSP135..CBU; KSP130,NCP131,NSP130..CVT..CBU |
90430-T0021 |
— | ||
|
33493C
|
33493C
33493-52010 Cooler, Oil[04.2014 - 01.2017] NCP131,NSP135..(F,JEWL,U)..CBU |
33493-52010 |
US $96.20 |
||
|
33493C
|
33493C
33493-52040 Cooler, Transmission Oil[12.2010 - 04.2014] NCP131..CVT |
33493-52040 |
US $137.64 |
||
|
33493D
|
33493D
90301-20012 Ring, O (For Transmission Oil Cooler)[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CVT..CBU |
90301-20012 |
from US $2.65 |
||
|
35106L
|
35106L
35106-12130 Pan Sub-Assy, Transaxle Oil(Cvt)[12.2010 - 04.2014] NCP131,NSP135..CVT..CBU |
35106-12130 |
US $47.17 |
||
| replacement | |||||
|
35106L
|
35106L
35106-12131 Pan Sub-Assy, Transaxle Oil(Cvt)[12.2010 - 04.2014] NCP131,NSP135..CVT..CBU |
35106-12131 |
US $48.34 |
||
|
35106L
|
35106L
35106-12170 Pan Sub-Assy, Transaxle Oil(Cvt)[04.2014 - 01.2016] NCP131..CVT |
35106-12170 |
US $48.48 |
||
| replacement | |||||
|
35106L
|
35106L
35106-12171 Pan Sub-Assy, Transaxle Oil(Cvt)[04.2014 - 01.2016] NCP131..CVT |
35106-12171 |
US $49.70 |
||
|
35106L
|
35106L
35106-12171 Pan Sub-Assy, Transaxle Oil(Cvt)[02.2016 - 01.2017] NCP131..U |
35106-12171 |
US $49.70 |
||
|
35106P
|
35106P
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[12.2010 - 04.2014] NCP131,NSP135..CVT..CBU |
90119-06173 |
from US $0.82 |
||
|
35123B
|
35123B
35123-52030 Skirt,transmission Breather[12.2010 - 04.2014] NCP131..CVT |
35123-52030 |
US $4.08 |
||
|
35125E
|
35125E
35125-12400 Tube, Transmission Oil Filler, No.1[12.2010 - 04.2014] NSP135..CBU; NCP131..CVT |
35125-12400 |
from US $1.35 |
||
|
35125E
|
35125E
35125-12430 Tube, Transmission Oil Filler, No.1[04.2014 -] NCP131..CVT |
35125-12430 |
US $2.08 |
||
|
35125F
|
35125F
90341-12034 Plug Sub-Assy, Drain (Atm)[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CVT..CBU |
90341-12034 |
from US $3.04 |
||
|
35125G
|
35125G
90430-12008 Gasket (For Shift Inter Lock Plate)[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CVT..CBU |
90430-12008 |
from US $0.88 |
||
|
35141D
|
35141D
35121-52020 Hose(For Breather Plug)[12.2010 - 04.2014] NCP131,NSP135..CVT..CBU |
35121-52020 |
US $7.86 |
||
|
35141E
|
35141E
90301-06005 Ring, O (For Breather Plug)[12.2010 - 04.2014] NCP131,NSP135..CVT..CBU |
90301-06005 |
from US $2.40 |
||
|
35141E
|
35141E
90301-06021 Ring, O (For Breather Plug)[05.2016 - 01.2017] NCP131,NSP135..(F,JEWL,U)..CBU |
90301-06021 |
US $2.24 |
||
|
35141F
|
35141F
90930-03149 Plug Sub-Assy, Breather(For Transmission)[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CVT..CBU |
90930-03149 |
from US $3.52 |
||
|
35141J
|
35141J
90930-03191 Plug, Breather, No.1(Cvt)[12.2010 - 04.2014] NCP131,NSP135..CVT..CBU |
90930-03191 |
US $4.16 |
||
|
35150B
|
35150B
35150-44010 Plug(For Transmission Case)[12.2010 - 07.2012] NCP131..CVT |
35150-44010 |
from US $5.44 |
||
|
35150B
|
35150B
35150-48010 Plug, Transaxle Hole[07.2012 - 04.2014] NCP131..CVT |
35150-48010 |
US $4.48 |
||
|
35150C
|
35150C
90301-09173 Ring, O(For Transmission Oil Filler Tube)[07.2012 - 04.2014] NCP131..CVT |
90301-09173 |
from US $2.18 |
||
|
35168C
|
35168C
35168-12090
Gasket, Transaxle Oil Pan(Cvt)
[12.2010 - 02.2014] NCP131,NSP135..CVT..CBU |
35168-12090 |
— | ||
| replacement | |||||
|
35168C
|
35168C
35168-12091 Gasket, Transaxle Oil Pan(Cvt)[12.2010 - 02.2014] NCP131,NSP135..CVT..CBU |
35168-12091 |
from US $5.92 |
||
|
35168C
|
35168C
35168-12091 Gasket, Transaxle Oil Pan(Cvt)[02.2014 - 04.2014] NCP131,NSP135..CVT..CBU |
35168-12091 |
from US $5.92 |
||
|
35300C
|
35300C
35300-12011 Pump Assy, Oil W/motor[04.2014 - 01.2017] NCP131..U ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ） |
35300-12011 |
US $595 |
||
|
35394D
|
35394D
35394-30011 Magnet, Oil Cleaner (For Transmission)[12.2010 - 04.2014] NCP131,NSP135..CVT..CBU |
35394-30011 |
from US $5.76 |
||
|
35572C
|
35572C
35572-12160 Lever, Transmission Control Shaft[12.2010 - 04.2014] NCP131..CVT |
35572-12160 |
US $5.24 |
||
|
35572C
|
35572C
35572-12170 Lever, Transmission Control Shaft[04.2014 - 01.2017] NCP131,NSP135..(F,JEWL,U)..CBU |
35572-12170 |
US $4.95 |
||
|
9094901C99
|
9094901C99
90949-01C99 Clip, Radiator Hose, No.5 |
90949-01C99 |
US $1.31 |
||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.78 |
||
|
9155180830
|
9155180830
91551-80830 Bolt, Compressor, No.2 |
91551-80830 |
from US $0.92 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.84 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
| replacement | |||||
|
9413000802
|
9413000802
90170-A0001 New Genuine Part |
90170-A0001 |
US $1.59 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
