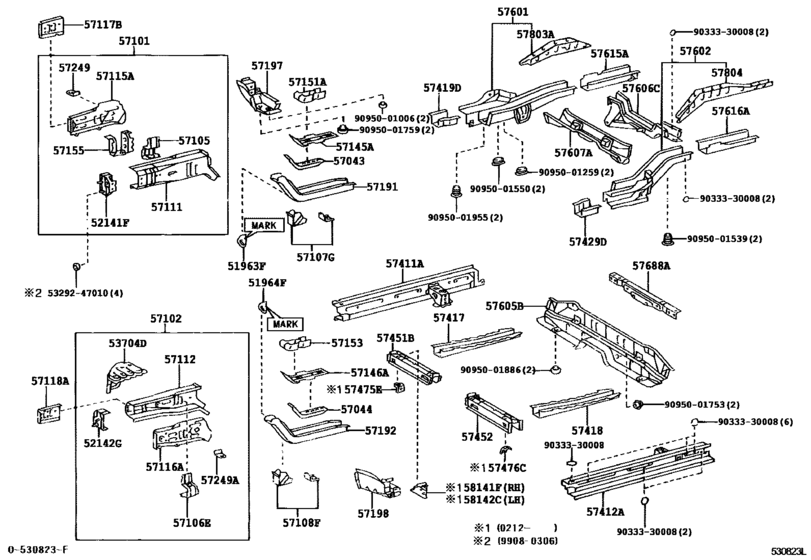

Floor Side Member ([08.1999 - ] (9908- )NCP15) Diagram Toyota VITZ
- Year
- 1999 - 2002
- Sales region
- Japan
- Frame
- NCP15
- grade
- CLA
- ENGINE
- 2NZFE
- TRANSMISSION
- ATM
- From
- 09.1999
- To
- 12.2002
- Gear Shift Type
- 4FC
- No.of Doors
- 3D
- Vehicle Model
- VITZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51963F
|
51963F
51963-52010 Hook, Transport[01.1999 - 12.2001] NCP1#,SCP10 |
51963-52010 |
US $7.86 |
||
|
51964F
|
51964F
51963-52010 Hook, Transport[01.1999 - 12.2001] NCP1#,SCP10 |
51963-52010 |
US $7.86 |
||
|
52141F
|
52141F
52141-52010 Arm, Front Bumper, Rh[01.1999 - 12.2001] NCP1#,SCP10 |
52141-52010 |
US $22.86 |
||
|
52141F
|
52141F
52141-52070 Arm, Front Bumper, Rh[12.2001 - 12.2002] NCP1#,SCP10 |
52141-52070 |
US $32.40 |
||
|
52142G
|
52142G
52142-52010 Arm, Front Bumper, Lh[01.1999 - 12.2001] NCP1#,SCP10 |
52142-52010 |
US $28.64 |
||
|
53704D
|
53704D
53704-52010 Support Sub-Assy, Battery, Lh[01.1999 - 12.2001] NCP1#,SCP10 |
53704-52010 |
US $40.91 |
||
|
57043
|
57043
57044-52010 Reinforcement Sub-Assy, Front Side Member, Rear Rh[12.1999 - 12.2001] NCP1#,SCP10 |
57044-52010 |
US $101.92 |
||
|
57044
|
57044
57044-52010 Reinforcement Sub-Assy, Front Side Member, Rear Rh[12.1999 - 12.2001] NCP1#,SCP10 |
57044-52010 |
US $101.92 |
||
|
57101
|
57101
57101-52901 Member Sub-Assy, Front Side, Rh[01.1999 - 05.2000] NCP1#,SCP10 |
57101-52901 |
US $318.86 |
||
| replacement | |||||
|
57101
|
57101
57101-52917 Member Sub-Assy, Front Side, Rh[01.1999 - 05.2000] NCP1#,SCP10 |
57101-52917 |
US $292.66 |
||
|
57101
|
57101
57101-52904 Member Sub-Assy, Front Side, Rh[05.2000 - 12.2001] NCP1#,SCP10 |
57101-52904 |
US $318.86 |
||
| replacement | |||||
|
57101
|
57101
57101-52917 Member Sub-Assy, Front Side, Rh[05.2000 - 12.2001] NCP1#,SCP10 |
57101-52917 |
US $292.66 |
||
|
57101
|
57101
57101-52908 Member Sub-Assy, Front Side, Rh[12.2001 - 12.2002] NCP1#,SCP10 |
57101-52908 |
US $320.32 |
||
| replacement | |||||
|
57101
|
57101
57101-52917 Member Sub-Assy, Front Side, Rh[12.2001 - 12.2002] NCP1#,SCP10 |
57101-52917 |
US $292.66 |
||
|
57102
|
57102
57102-52902 Member Sub-Assy, Front Side, Lh[08.1999 - 12.2001] NCP1# |
57102-52902 |
US $347.98 |
||
|
57105
|
57105
57105-52010 Bracket Sub-Assy, Front Suspension Member Mounting, Front Rh[01.1999 - 12.2001] NCP1#,SCP10 |
57105-52010 |
US $30.28 |
||
|
57106E
|
57106E
57105-52010 Bracket Sub-Assy, Front Suspension Member Mounting, Front Rh[01.1999 - 12.2001] NCP1#,SCP10 |
57105-52010 |
US $30.28 |
||
|
57107G
|
57107G
57107-52010 Bracket Sub-Assy, Front Suspension Member Mounting, Rear Rh[01.1999 - 12.2001] NCP1#,SCP10 |
57107-52010 |
US $40.77 |
||
| replacement | |||||
|
57107G
|
57107G
57107-52020 Bracket Sub-Assy, Front Suspension Member Mounting, Rear Rh[01.1999 - 12.2001] NCP1#,SCP10 |
57107-52020 |
from US $28.10 |
||
|
57107G
|
57107G
57107-52020 Bracket Sub-Assy, Front Suspension Member Mounting, Rear Rh[08.2002 - 12.2002] NCP10,15,SCP10 |
57107-52020 |
from US $28.10 |
||
|
57108F
|
57108F
57108-52010 Bracket Sub-Assy, Front Suspension Member Mounting, Rear Lh[01.1999 - 12.2001] NCP1#,SCP10 |
57108-52010 |
US $40.77 |
||
| replacement | |||||
|
57108F
|
57108F
57108-52020 Bracket Sub-Assy, Front Suspension Member Mounting, Rear Lh[01.1999 - 12.2001] NCP1#,SCP10 |
57108-52020 |
from US $28.10 |
||
|
57108F
|
57108F
57108-52020 Bracket Sub-Assy, Front Suspension Member Mounting, Rear Lh[08.2002 - 12.2002] NCP1#,SCP10 |
57108-52020 |
from US $28.10 |
||
|
57111
|
57111
57111-52010 Member, Front Side, Rh[01.1999 - 12.2001] NCP1#,SCP10 |
57111-52010 |
US $178.87 |
||
|
57112
|
57112
57112-52010 Member, Front Side, Lh[08.1999 - 12.2001] NCP1# |
57112-52010 |
US $178.87 |
||
|
57115A
|
57115A
57115-52010 Plate, Front Side Member, Outer Rh[01.1999 - 12.2001] NCP1#,SCP10 |
57115-52010 |
US $105.62 |
||
|
57116A
|
57116A
57116-52010 Plate, Front Side Member, Outer Lh[01.1999 - 12.2001] NCP1#,SCP10 |
57116-52010 |
US $105.62 |
||
|
57117B
|
57117B
57117-52010 Plate Sub-Assy, Front Side Member, Front Rh[01.1999 - 07.2001] NCP1#,SCP10 |
57117-52010 |
US $33.92 |
||
| replacement | |||||
|
57117B
|
57117B
57117-52020 Plate Sub-Assy, Front Side Member, Front Rh[01.1999 - 07.2001] NCP1#,SCP10 |
57117-52020 |
from US $22.56 |
||
|
57117B
|
57117B
57117-52020 Plate Sub-Assy, Front Side Member, Front Rh[07.2001 - 12.2001] NCP1#,SCP10 |
57117-52020 |
from US $22.56 |
||
|
57118A
|
57118A
57118-52010 Reinforcement, Front Bumper Mounting, Lh[01.1999 - 12.2001] NCP1#,SCP10 |
57118-52010 |
US $30.20 |
||
|
57145A
|
57145A
57145-52011 Reinforcement, Front Side Member, Rear Rh[09.1999 - 12.2001] NCP1#,SCP10 |
57145-52011 |
US $81.54 |
||
|
57146A
|
57146A
57145-52011 Reinforcement, Front Side Member, Rear Rh[09.1999 - 12.2001] NCP1#,SCP10 |
57145-52011 |
US $81.54 |
||
|
57151A
|
57151A
57151-52010 Reinforcement, Front Side Member, No.1 Rh[01.1999 - 12.2001] NCP1#,SCP10 |
57151-52010 |
US $23.44 |
||
|
57153
|
57153
57153-52010 Reinforcement, Front Side Member, No.1 Lh[09.1999 - 12.2001] NCP1#,SCP10 |
57153-52010 |
US $23.44 |
||
|
57155
|
57155
57155-52010 Reinforcement, Front Side Member, No.3, Rh[01.1999 - 08.2000] NCP1#,SCP10 |
57155-52010 |
US $28.39 |
||
| replacement | |||||
|
57155
|
57155
57155-52012 Reinforcement, Front Side Member, No.3, Rh[01.1999 - 08.2000] NCP1#,SCP10 |
57155-52012 |
from US $19.66 |
||
|
57155
|
57155
57155-52011 Reinforcement, Front Side Member, No.3, Rh[08.2000 - 12.2001] NCP1#,SCP10 |
57155-52011 |
US $28.54 |
||
| replacement | |||||
|
57155
|
57155
57155-52012 Reinforcement, Front Side Member, No.3, Rh[08.2000 - 12.2001] NCP1#,SCP10 |
57155-52012 |
from US $19.66 |
||
|
57191
|
57191
57191-52900 Plate, Front Side Member, Outer Rear Rh[01.1999 - 12.2001] NCP1#,SCP10 |
57191-52900 |
US $164.53 |
||
|
57192
|
57192
57192-52011 Plate, Front Side Member, Outer Rear Lh[09.1999 - 12.2001] NCP1#,SCP10 |
57192-52011 |
US $115.02 |
||
|
57197
|
57197
57077-52020 Box, Torque, Front Rh[01.1999 - 12.2001] NCP1#,SCP10 |
57077-52020 |
US $63.19 |
||
|
57198
|
57198
57078-52020 Box, Torque, Front Lh[01.1999 - 12.2001] NCP1#,SCP10 |
57078-52020 |
from US $63.19 |
||
|
57249
|
57249
57249-10040 Bracket, Front Side Member, Rh[01.1999 - 12.2001] NCP1#,SCP10 |
57249-10040 |
US $4.37 |
||
|
57249A
|
57249A
57249-10040 Bracket, Front Side Member, Rh[01.1999 - 12.2001] NCP1#,SCP10 |
57249-10040 |
US $4.37 |
||
|
57411A
|
57411A
57401-52020 Member, Floor Side, Inner Rh[01.1999 - 12.2001] NCP1#,SCP10 |
57401-52020 |
US $214.03 |
||
|
57412A
|
57412A
57402-52020 Member, Floor Side, Inner Lh[01.1999 - 12.2001] NCP1#,SCP10 |
57402-52020 |
US $214.03 |
||
|
57417
|
57417
57417-52021 Reinforcement, Front Floor Under, Rh[09.1999 - 12.2001] NCP15 |
57417-52021 |
US $35.24 |
||
|
57418
|
57418
57417-52021 Reinforcement, Front Floor Under, Rh[09.1999 - 12.2001] NCP15 |
57417-52021 |
US $35.24 |
||
|
57419D
|
57419D
57419-52020 Reinforcement, Front Floor Under, Rear Rh[08.1999 - 12.2001] NCP15 |
57419-52020 |
US $18.05 |
||
|
57429D
|
57429D
57429-52020 Reinforcement, Front Floor Under, Rear Lh[08.1999 - 12.2001] NCP15 |
57429-52020 |
US $18.05 |
||
|
57451B
|
57451B
57451-52020 Member, Front Floor Cross, Rh[08.1999 - 05.2000] NCP15 |
57451-52020 |
US $63.34 |
||
| replacement | |||||
|
57451B
|
57451B
57451-52021 Member, Front Floor Cross, Rh[08.1999 - 05.2000] NCP15 |
57451-52021 |
US $43.97 |
||
|
57451B
|
57451B
57451-52021 Member, Front Floor Cross, Rh[05.2000 - 12.2001] NCP15 |
57451-52021 |
US $43.97 |
||
|
57452
|
57452
57452-52030 Member, Front Floor Cross, Lh[08.1999 - 12.2001] NCP15 |
57452-52030 |
US $53.87 |
||
|
57601
|
57601
57601-52901 Member Sub-Assy, Rear Floor Side, Rh[08.1999 - 12.2001] NCP15 |
57601-52901 |
US $304.30 |
||
| replacement | |||||
|
57601
|
57601
57601-52923 Member Sub-Assy, Rear Floor Side, Rh[08.1999 - 12.2001] NCP15 |
57601-52923 |
US $304.30 |
||
|
57602
|
57602
57602-52901 Member Sub-Assy, Rear Floor Side, Lh[08.1999 - 12.2001] NCP15 |
57602-52901 |
US $304.30 |
||
| replacement | |||||
|
57602
|
57602
57602-52927 Member Sub-Assy, Rear Floor Side, Lh[08.1999 - 12.2001] NCP15 |
57602-52927 |
US $304.30 |
||
|
57605B
|
57605B
57605-52040 Member Sub-Assy, Rear Floor Cross, No.1[08.1999 - 12.2001] NCP15 |
57605-52040 |
US $209.66 |
||
|
57606C
|
57606C
57606-52020 Member Sub-Assy, Rear Floor Cross, No.2[08.1999 - 12.2001] NCP15 |
57606-52020 |
US $148.51 |
||
|
57607A
|
57607A
57607-52010 Member Sub-Assy, Rear Floor Cross, No.3[08.1999 - 12.2000] NCP15 |
57607-52010 |
US $251.89 |
||
| replacements | |||||
|
57607A
|
57607A
57607-52011 Member Sub-Assy, Rear Floor Cross, No.3[08.1999 - 12.2000] NCP15 |
57607-52011 |
US $251.89 |
||
|
57607A
|
57607A
91651-B0814 Bolt with washer[08.1999 - 12.2000] NCP15 |
91651-B0814 |
from US $0.88 |
||
|
57607A
|
57607A
57607-52020 Member Sub-Assy, Rear Floor Cross, No.3[12.2000 - 12.2001] NCP15 |
57607-52020 |
US $286.83 |
||
| replacements | |||||
|
57607A
|
57607A
57607-52021 Member Sub-Assy, Rear Floor Cross, No.3[12.2000 - 12.2001] NCP15 |
57607-52021 |
US $238.78 |
||
|
57607A
|
57607A
91651-B0814 Bolt with washer[12.2000 - 12.2001] NCP15 |
91651-B0814 |
from US $0.88 |
||
|
57615A
|
57615A
57615-52901 Member, Rear Floor Side, Rear Rh[08.1999 - 12.2001] NCP15 |
57615-52901 |
US $119.39 |
||
|
57616A
|
57616A
57616-52901 Member, Rear Floor Side, Rear Lh[08.1999 - 12.2001] NCP15 |
57616-52901 |
US $122.30 |
||
|
57688A
|
57688A
57688-52030 Reinforcement, Rear Floor Crossmember[08.1999 - 12.2001] NCP15..3D |
57688-52030 |
US $78.62 |
||
|
57803A
|
57803A
57803-16021 Reinforcement Sub-Assy, Rear Floor Side Member, Rear Rh[08.1999 - 12.2001] NCP15 |
57803-16021 |
US $24.32 |
||
|
57804
|
57804
57804-52010 Reinforcement Sub-Assy, Rear Floor Side Member, Rear Lh[08.1999 - 12.2001] NCP15 |
57804-52010 |
US $38 |
||
|
5329247010
|
5329247010
53292-47010 Seal, Radiator Support, Upper |
53292-47010 |
US $0.73 |
||
|
9033330008
|
9033330008
90333-30008 PLUG PLATE |
90333-30008 |
from US $1.12 |
||
|
9095001006
|
9095001006
90950-01006 Plug, Hole(For Front Fender) |
90950-01006 |
from US $2.16 |
||
|
9095001259
|
9095001259
90950-01259 PLUG |
90950-01259 |
from US $1.92 |
||
|
9095001539
|
9095001539
90950-01539 PLUG HOLE |
90950-01539 |
from US $1.42 |
||
|
9095001550
|
9095001550
90950-01550 PLUG HOLE |
90950-01550 |
US $2.08 |
||
|
9095001753
|
9095001753
90950-01753 Plug, Hole(For Rear Body Side Panel) |
90950-01753 |
US $1.46 |
||
|
9095001759
|
9095001759
90950-01759 PLUG |
90950-01759 |
from US $1.92 |
||
|
9095001886
|
9095001886
90950-01886 PLUG HOLE |
90950-01886 |
US $1.60 |
||
|
9095001955
|
9095001955
90950-01955 Plug, Hole, No.1(For Dash Panel) |
90950-01955 |
from US $1.60 |
||
