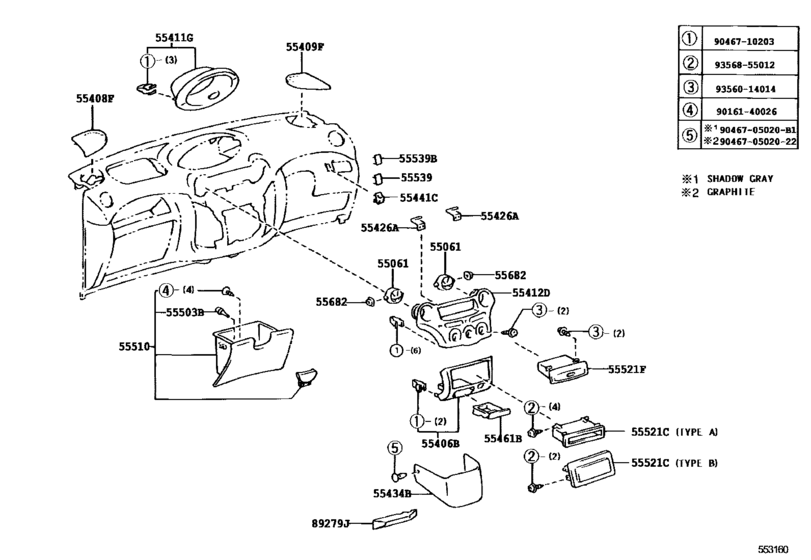

Instrument Panel & Glove Compartment ([01.1999 - 12.2002] (9901-0212)) Diagram Toyota VITZ
- Year
- 1999 - 2002
- Sales region
- Japan
- Frame
- NCP15
- grade
- CLA
- ENGINE
- 2NZFE
- TRANSMISSION
- ATM
- From
- 09.1999
- To
- 12.2002
- Gear Shift Type
- 4FC
- No.of Doors
- 3D
- Vehicle Model
- VITZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55061
|
55061
55061-52020-B0 Register Sub-Assy, Instrument Panel, No.1[09.1999 - 12.2001] NCP10,15..CLA SHADOW GRAY,TRIM1# |
55061-52020-B0 |
US $36.25 |
||
|
55406B
|
55406B
55406-52010-B0
Panel Sub-Assy, Instrument Cluster Finish, Lower Center
[01.1999 - 12.2001] NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
55406-52010-B0 |
— | ||
|
55408F
|
55408F
55472-52010-B0
Panel Sub-Assy, Instrument Panel Speaker, No.1
[01.1999 - 12.2001] NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
55472-52010-B0 |
— | ||
| replacement | |||||
|
55408F
|
55408F
55472-52010-B2 Panel Sub-Assy, Instrument Panel Speaker, No.1INSTRUMENT PANEL SPEAKER, NO.1 [01.1999 - 12.2001] NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
55472-52010-B2 |
US $24.64 |
||
|
55409F
|
55409F
55473-52010-B0
Panel Sub-Assy, Instrument Panel Speaker, No.2
[01.1999 - 12.2001] NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
55473-52010-B0 |
— | ||
| replacement | |||||
|
55409F
|
55409F
55473-52010-B2 Panel Sub-Assy, Instrument Panel Speaker, No.2INSTRUMENT PANEL SPEAKER, NO.2 [01.1999 - 12.2001] NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
55473-52010-B2 |
US $24.29 |
||
|
55411G
|
55411G
55411-52020-B0 Panel, Instrument Cluster Finish, No.1[01.1999 - 12.2001] NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
55411-52020-B0 |
US $100.46 |
||
|
55412D
|
55412D
55412-52011-B0 Panel, Instrument Cluster Finish, Center[08.2000 - 12.2002] NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
55412-52011-B0 |
US $85.90 |
||
| replacement | |||||
|
55412D
|
55412D
55412-52011-B2 Panel, Instrument Cluster Finish, Center[08.2000 - 12.2002] NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
55412-52011-B2 |
US $69.19 |
||
|
55412D
|
55412D
55412-52020-B0 Panel, Instrument Cluster Finish, Center[01.1999 - 04.2000] NCP1#,SCP10..CLA,F,U ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1# |
55412-52020-B0 |
US $85.90 |
||
| replacement | |||||
|
55412D
|
55412D
55412-52021-B0 Panel, Instrument Cluster Finish, Center[01.1999 - 04.2000] NCP1#,SCP10..CLA,F,U ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1# |
55412-52021-B0 |
US $85.90 |
||
|
55412D
|
55412D
55412-52021-B0 Panel, Instrument Cluster Finish, Center[04.2000 - 12.2001] NCP10,15,SCP10..CLA,F,U ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1# |
55412-52021-B0 |
US $85.90 |
||
|
55426A
|
55426A
55426-52010 Bracket, Cluster Finish Panel, No.1[01.1999 - 12.2001] NCP1#,SCP10 |
55426-52010 |
US $3.20 |
||
|
55434B
|
55434B
55434-52020-B0 Panel, Instrument Panel Finish, Lower Center[01.1999 - 12.2001] NCP10,15,SCP10..B,CLA,F,U MD.GRAY,TRIM1# |
55434-52020-B0 |
US $58.24 |
||
| replacement | |||||
|
55434B
|
55434B
55434-52090-B3
Panel, Instrument Panel Finish, Lower Center
[01.1999 - 12.2001] NCP10,15,SCP10..B,CLA,F,U MD.GRAY,TRIM1# |
55434-52090-B3 |
— | ||
|
55434B
|
55434B
55434-52090-B0
Panel, Instrument Panel Finish, Lower Center
[12.2001 - 12.2002] NCP10,13..RS SHADOW GRAY,TRIM9#; NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
55434-52090-B0 |
— | ||
| replacement | |||||
|
55434B
|
55434B
55434-52090-B3
Panel, Instrument Panel Finish, Lower Center
[12.2001 - 12.2002] NCP10,13..RS SHADOW GRAY,TRIM9#; NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
55434-52090-B3 |
— | ||
|
55441C
|
55441C
55441-20140-B4 Box, Instrument Panel[01.1999 - 12.2001] NCP10,15,SCP10..CLA,F,U MD.GRAY,TRIM1# |
55441-20140-B4 |
US $12.67 |
||
| replacement | |||||
|
55441C
|
55441C
55441-20140-C0 Box, Instrument Panel Coin[01.1999 - 12.2001] NCP10,15,SCP10..CLA,F,U MD.GRAY,TRIM1# |
55441-20140-C0 |
US $15.04 |
||
|
55461B
|
55461B
55461-52010-B0 Box, Instrument Panel, Center[01.1999 - 12.2001] NCP10,15,SCP10..CLA,F,U SHADOW GRAY,TRIM1# |
55461-52010-B0 |
US $23.88 |
||
| replacement | |||||
|
55461B
|
55461B
55461-52900-B0 Box, Instrument Panel, Center[01.1999 - 12.2001] NCP10,15,SCP10..CLA,F,U SHADOW GRAY,TRIM1# |
55461-52900-B0 |
US $23.88 |
||
|
55503B
|
55503B
90541-05020 Cushion(For Glove Compartment)[01.1999 - 12.1999] NCP1#,SCP10 |
90541-05020 |
US $0.87 |
||
|
55503B
|
55503B
90541-05080 Cushion(For Glove Compartment)[12.1999 - 12.2001] NCP1#,SCP10 |
90541-05080 |
from US $1.49 |
||
|
55510
|
55510
55550-52010-B0 Door Assy, Glove Compartment[01.1999 - 12.2001] NCP10,15,SCP10..B,CLA,F,U MD.GRAY,TRIM1# |
55550-52010-B0 |
US $158.70 |
||
| replacement | |||||
|
55510
|
55510
55550-52130-B4 Door Assy, Glove Compartment[01.1999 - 12.2001] NCP10,15,SCP10..B,CLA,F,U MD.GRAY,TRIM1# |
55550-52130-B4 |
US $152.88 |
||
|
55521C
|
55521C
55522-52020 Cover, Stereo Opening[01.1999 - 12.2001] NCP1#,SCP10 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
55522-52020 |
from US $14.14 |
||
|
55521F
|
55521F
55520-52010-B0
Cover, Stereo Opening, No.2
[01.1999 - 12.2001] NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
55520-52010-B0 |
— | ||
| replacement | |||||
|
55521F
|
55521F
55520-52030-B0 Cover, Stereo Opening, No.2[01.1999 - 12.2001] NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
55520-52030-B0 |
US $57.13 |
||
|
55521F
|
55521F
55520-52030-B0 Cover, Stereo Opening, No.2[12.2001 - 12.2002] NCP10,13..RS SHADOW GRAY,TRIM9#; NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
55520-52030-B0 |
US $57.13 |
||
|
55539
|
55539
55539-52010-B0 Cover, Spare Switch Hole[01.1999 - 12.2001] NCP10,15,SCP10..B,CLA,F,U MD.GRAY,TRIM1# |
55539-52010-B0 |
US $4.95 |
||
| replacement | |||||
|
55539
|
55539
55539-52010-B4
Cover, Spare Switch Hole
[01.1999 - 12.2001] NCP10,15,SCP10..B,CLA,F,U MD.GRAY,TRIM1# |
55539-52010-B4 |
— | ||
|
55682
|
55682
55682-52010 Spring, Instrument Panel Register Support[01.1999 - 12.2001] NCP1#,SCP10 |
55682-52010 |
US $3.06 |
||
|
89279J
|
89279J
89279-52020 Cover[01.1999 - 12.2001] NCP1#,SCP10 |
89279-52020 |
US $25.33 |
||
|
9016140026
|
9016140026
90161-40026 New Genuine Part |
90161-40026 |
US $1.02 |
||
|
9046705020B1
|
9046705020B1
90467-05020-B1 Clip, Heater To Register Duct |
90467-05020-B1 |
US $0.70 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9356014014
|
9356014014
93560-14014 SCREW |
93560-14014 |
from US $0.96 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
from US $0.96 |
||
|
904670502022
|
904670502022
90467-05020-22 Clip, Instrument Panel (Black) |
90467-05020-22 |
US $0.96 |
||
