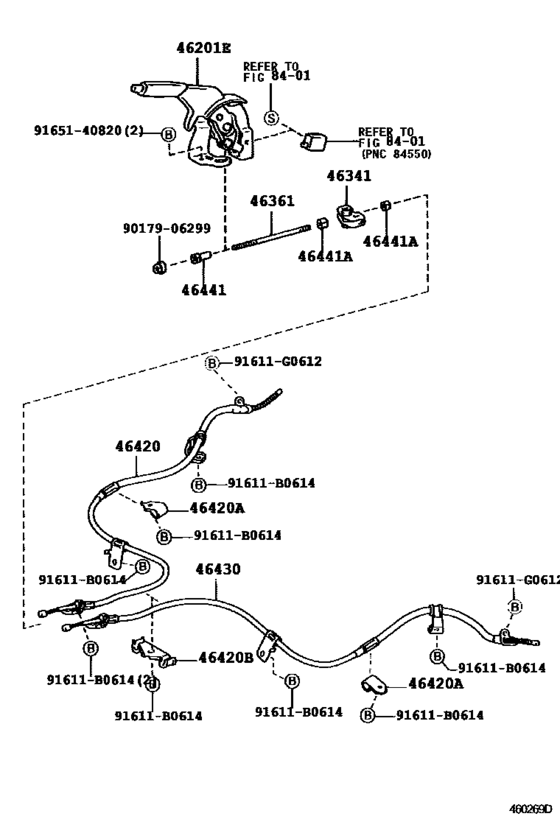

Parking Brake & Cable ([08.1999 - 02.2003] (9908-0302)NCP15) Diagram Toyota VITZ
- Year
- 1999 - 2002
- Sales region
- Japan
- Frame
- NCP15
- grade
- CLA
- ENGINE
- 2NZFE
- TRANSMISSION
- ATM
- From
- 09.1999
- To
- 12.2002
- Gear Shift Type
- 4FC
- No.of Doors
- 3D
- Vehicle Model
- VITZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46201E
|
46201E
46201-52010-B0 Lever Sub-Assy, Parking Brake[01.1999 - 12.2001] NCP10,15,SCP10..B,CLA,F,U MD.GRAY,TRIM1# |
46201-52010-B0 |
US $110.66 |
||
|
46201E
|
46201E
46201-52050-B0 Lever Sub-Assy, Parking Brake[12.2001 - 12.2002] NCP15,SCP10..F;NCP15..5D..4FC..(CLA,U) ｸﾛﾑ ﾒﾂｷ ﾉﾌﾞ,SHADOW GRAY,TRIM1#; NCP10,13..RS SHADOW GRAY,TRIM9#; NCP10,15,SCP10..CLA,F,U ｸﾛﾑ ﾒﾂｷ ﾉﾌﾞ,SHADOW GRAY,TRIM1# |
46201-52050-B0 |
US $110.66 |
||
| replacement | |||||
|
46201E
|
46201E
46201-52050-B1 Lever Sub-Assy, Parking Brake[12.2001 - 12.2002] NCP15,SCP10..F;NCP15..5D..4FC..(CLA,U) ｸﾛﾑ ﾒﾂｷ ﾉﾌﾞ,SHADOW GRAY,TRIM1#; NCP10,13..RS SHADOW GRAY,TRIM9#; NCP10,15,SCP10..CLA,F,U ｸﾛﾑ ﾒﾂｷ ﾉﾌﾞ,SHADOW GRAY,TRIM1# |
46201-52050-B1 |
US $112.11 |
||
|
46341
|
46341
46341-52010 Equalizer, Parking Brake[01.1999 - 12.2001] NCP1#,SCP10 |
46341-52010 |
US $5.53 |
||
|
46361
|
46361
46361-52010 Rod, Parking Brake Pull[01.1999 - 12.2001] NCP1#,SCP10 |
46361-52010 |
US $5.42 |
||
|
46420
|
46420
46420-52030 Cable Assy, Parking Brake, No.2[08.1999 - 12.2001] NCP15 |
46420-52030 |
US $62.32 |
||
| replacement | |||||
|
46420
|
46420
46420-52031 Cable Assy, Parking Brake, No.2[08.1999 - 12.2001] NCP15 |
46420-52031 |
US $60.63 |
||
|
46420A
|
46420A
90949-01B83 Clamp, No.1(For Parking Brake Cable)[08.1999 - 12.2001] NCP15 |
90949-01B83 |
US $5.53 |
||
| replacement | |||||
|
46420A
|
46420A
90949-01C31 Clamp, No.1(For Parking Brake Cable)[08.1999 - 12.2001] NCP15 |
90949-01C31 |
US $6.56 |
||
|
46420B
|
46420B
46451-52010 Clamp, No.2(For Parking Brake Cable)[03.2002 - 12.2002] NCP15 |
46451-52010 |
US $3.79 |
||
|
46420B
|
46420B
90949-01B84 Clamp, No.2(For Parking Brake Cable)[08.1999 - 12.2001] NCP15 |
90949-01B84 |
US $4.22 |
||
| replacement | |||||
|
46420B
|
46420B
46451-52010 Clamp, No.2(For Parking Brake Cable)[08.1999 - 12.2001] NCP15 |
46451-52010 |
US $3.79 |
||
|
46430
|
46430
46430-52030
Cable Assy, Parking Brake, No.3
[08.1999 - 12.2001] NCP15 |
46430-52030 |
— | ||
| replacement | |||||
|
46430
|
46430
46430-52031 Cable Assy, Parking Brake, No.3[08.1999 - 12.2001] NCP15 |
46430-52031 |
US $60.63 |
||
|
46441
|
46441
46441-52010 Nut, Wire Adjusting, No.1[01.1999 - 12.2001] NCP1#,SCP10 |
46441-52010 |
US $2.62 |
||
|
46441A
|
46441A
90170-06014 Nut, Wire Adjusting, No.2[01.1999 - 12.2001] NCP1#,SCP10 |
90170-06014 |
US $2.08 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.76 |
||
|
91611G0612
|
91611G0612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
