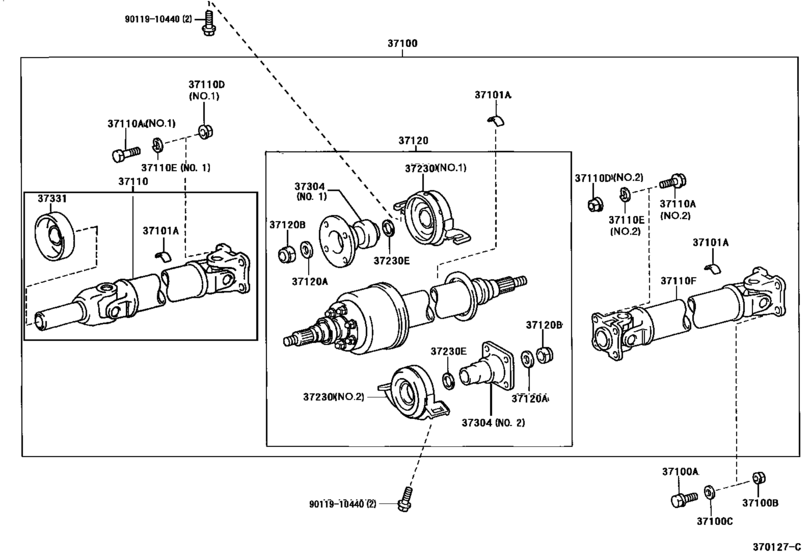

Propeller Shaft & Universal Joint ([08.1999 - 12.2001] (9908-0112)NCP15) Diagram Toyota VITZ
- Year
- 1999 - 2002
- Sales region
- Japan
- Frame
- NCP15
- grade
- CLA
- ENGINE
- 2NZFE
- TRANSMISSION
- ATM
- From
- 09.1999
- To
- 12.2002
- Gear Shift Type
- 4FC
- No.of Doors
- 3D
- Vehicle Model
- VITZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
37100
|
37100
37100-52010 Shaft Assy, Propeller W/center Bearing[08.1999 - 05.2000] NCP15 |
37100-52010 |
US $2,213.12 |
||
|
37100A
|
37100A
90105-08244 Bolt, No.1 (For Propeller Shaft & Differential Setting)[08.1999 - 12.2001] NCP15 |
90105-08244 |
from US $1.60 |
||
|
37100B
|
37100B
90179-08197 Nut, No.1 (For Propeller Shaft & Differential Setting)[08.1999 - 12.2001] NCP15 |
90179-08197 |
US $1.44 |
||
|
37100C
|
37100C
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)[08.1999 - 12.2001] NCP15 |
94512-00800 |
from US $0.76 |
||
|
37101A
|
37101A
90937-01338 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 ３Ｇ，厚さ＝１．０，長さ＝１９．１ |
90937-01338 |
US $1.60 |
||
|
37101A
|
37101A
90937-01339 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 ５Ｇ，厚さ＝１．０，長さ＝３１．８ |
90937-01339 |
US $1.60 |
||
|
37101A
|
37101A
90937-01340 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 ７Ｇ，厚さ＝２．０ |
90937-01340 |
US $1.60 |
||
|
37101A
|
37101A
90937-01355 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 ２Ｇ，厚さ＝１．０，長さ＝１２．７ |
90937-01355 |
US $2.77 |
||
|
37101A
|
37101A
90937-01356 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 ４Ｇ，厚さ＝１．０，長さ＝２５．４ |
90937-01356 |
US $2.77 |
||
|
37101A
|
37101A
90937-01357 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 ６Ｇ，厚さ＝２．０ |
90937-01357 |
US $2.77 |
||
|
37101A
|
37101A
90937-01358 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 ８Ｇ，厚さ＝２．０ |
90937-01358 |
US $3.93 |
||
|
37101A
|
37101A
90937-01359 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 １０Ｇ，厚さ＝２．０ |
90937-01359 |
US $3.93 |
||
|
37101A
|
37101A
90937-01360 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 １２Ｇ，厚さ＝２．０ |
90937-01360 |
US $3.93 |
||
|
37101A
|
37101A
90937-01361 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 １４Ｇ，厚さ＝２．０ |
90937-01361 |
US $3.93 |
||
|
37101A
|
37101A
90937-01362 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 １６Ｇ，厚さ＝２．０ |
90937-01362 |
US $3.93 |
||
|
37101A
|
37101A
90937-01363 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 １８Ｇ，厚さ＝２．０ |
90937-01363 |
US $5.10 |
||
|
37101A
|
37101A
90937-01364 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 ２０Ｇ，厚さ＝２．０，長さ＝４２．４ |
90937-01364 |
US $5.10 |
||
|
37101A
|
37101A
90937-01365 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 １Ｇ，厚さ＝１．０，長さ＝６．４ |
90937-01365 |
US $2.77 |
||
|
37101A
|
37101A
90937-01385 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 ２２Ｇ，厚さ＝２．０，長さ＝４６．６ |
90937-01385 |
US $5.10 |
||
|
37101A
|
37101A
90937-01386 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 ２４Ｇ，厚さ＝２．０，長さ＝５０．８ |
90937-01386 |
US $5.10 |
||
|
37101A
|
37101A
90937-01423 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 １Ｇ，厚さ＝１．０，長さ＝４．２ |
90937-01423 |
US $1.31 |
||
|
37101A
|
37101A
90937-01424 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 ２Ｇ，厚さ＝１．０，長さ＝８．５ |
90937-01424 |
US $1.31 |
||
|
37101A
|
37101A
90937-01425 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 ３Ｇ，厚さ＝１．０，長さ＝１２．７ |
90937-01425 |
US $1.31 |
||
|
37101A
|
37101A
90937-01426 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 ４Ｇ，厚さ＝１．０，長さ＝１７．０ |
90937-01426 |
US $1.31 |
||
|
37101A
|
37101A
90937-01427 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 ５Ｇ，厚さ＝３．２ |
90937-01427 |
US $1.31 |
||
|
37101A
|
37101A
90937-01428 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 ６Ｇ，厚さ＝３．２ |
90937-01428 |
US $1.60 |
||
|
37101A
|
37101A
90937-01429 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 ７Ｇ，厚さ＝３．２ |
90937-01429 |
US $1.60 |
||
|
37101A
|
37101A
90937-01430 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 ８Ｇ，厚さ＝３．２ |
90937-01430 |
US $1.60 |
||
|
37101A
|
37101A
90937-01431 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 １０Ｇ，厚さ＝３．２ |
90937-01431 |
US $1.60 |
||
|
37101A
|
37101A
90937-01432 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 １２Ｇ，厚さ＝３．２ |
90937-01432 |
US $2.04 |
||
|
37101A
|
37101A
90937-01433 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 １４Ｇ，厚さ＝３．２ |
90937-01433 |
US $2.04 |
||
|
37101A
|
37101A
90937-01434 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 １６Ｇ，厚さ＝３．２ |
90937-01434 |
US $2.48 |
||
|
37101A
|
37101A
90937-01435 Piece, Balance, No.1 (For Propeller Shaft)[08.1999 - 12.2001] NCP15 １８Ｇ，厚さ＝３．２ |
90937-01435 |
US $2.48 |
||
|
37110
|
37110
37110-52010 Shaft Assy, Propeller[08.1999 - 12.2001] NCP15 |
37110-52010 |
US $454.08 |
||
|
37110A
|
37110A
90105-08244 Bolt, No.1 (For Propeller Shaft & Differential Setting)[08.1999 - 12.2001] NCP15 ＊８−１．２５ＰＸ２６−１３,ＮＯ．２ |
90105-08244 |
from US $1.60 |
||
|
37110A
|
37110A
90105-10085 Bolt, No.1 (For Propeller Shaft & Differential Setting)[08.1999 - 12.2001] NCP15 ＊１０−１．００ＰＸ２７−１３,ＮＯ．１ |
90105-10085 |
from US $1.21 |
||
| replacement | |||||
|
37110A
|
37110A
90080-10294 Bolt, No.1 (For Propeller Shaft & Differential Setting)[08.1999 - 12.2001] NCP15 ＊１０−１．００ＰＸ２７−１３,ＮＯ．１ |
90080-10294 |
US $6.47 |
||
|
37110D
|
37110D
90179-08197 Nut, No.1 (For Propeller Shaft & Differential Setting)[08.1999 - 12.2001] NCP15 ＮＯ．２ |
90179-08197 |
US $1.44 |
||
|
37110D
|
37110D
90179-10059 Nut, No.1 (For Propeller Shaft & Differential Setting)[08.1999 - 12.2001] NCP15 ＮＯ．１ |
90179-10059 |
from US $2.28 |
||
| replacement | |||||
|
37110D
|
37110D
90080-17239 Nut, No.2 (For Propeller Shaft & Differential Setting)[08.1999 - 12.2001] NCP15 ＮＯ．１ |
90080-17239 |
US $8.96 |
||
|
37110E
|
37110E
90204-10002
Washer, No.1 (For Propeller Shaft & Differential Setting)
[08.1999 - 12.2001] NCP15 ＮＯ．１ |
90204-10002 |
— | ||
| replacement | |||||
|
37110E
|
37110E
90560-10H00 Washer, No.1 (For Propeller Shaft & Differential Setting)[08.1999 - 12.2001] NCP15 ＮＯ．１ |
90560-10H00 |
from US $1.64 |
||
|
37110E
|
37110E
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)[08.1999 - 12.2001] NCP15 ＮＯ．２ |
94512-00800 |
from US $0.76 |
||
|
37110F
|
37110F
37110-16020 Shaft Assy, Propeller, Rear[08.1999 - 12.2001] NCP15 |
37110-16020 |
US $524.16 |
||
|
37120
|
37120
37120-52010 Shaft Assy, Propeller Intermediate[08.1999 - 05.2000] NCP15 |
37120-52010 |
US $1,179.36 |
||
|
37120A
|
37120A
90201-18182 Washer, Plate (For Propeller Intermediate Shaft Set)[08.1999 - 12.2001] NCP15 外径＝３３．５，厚さ＝４．０ |
90201-18182 |
from US $2.88 |
||
|
37120B
|
37120B
90179-18009 Nut (For Propeller Intermediate Shaft Setting)[08.1999 - 12.2001] NCP15 |
90179-18009 |
from US $1.72 |
||
|
37230
|
37230
37230-10031 Bearing Assy, Center Support, No.1[08.1999 - 12.2001] NCP15 ＮＯ．２ |
37230-10031 |
US $129.58 |
||
|
37230
|
37230
37230-52010 Bearing Assy, Center Support, No.1[08.1999 - 12.2001] NCP15 ＮＯ．１ |
37230-52010 |
US $147.06 |
||
|
37230
|
37230
37230-59025 Bearing Assy, Center Support, No.1[12.2001 - 12.2002] NCP15 リヤ |
37230-59025 |
US $167.04 |
||
|
37230
|
37230
37230-59035 Bearing Assy, Center Support, No.1[12.2001 - 12.2002] NCP15 フロント |
37230-59035 |
US $190.08 |
||
|
37230E
|
37230E
90201-25005 Washer, Plate (For Propeller Intermediate Shaft Set)[08.1999 - 12.2001] NCP15 |
90201-25005 |
US $0.70 |
||
|
37304
|
37304
37304-12010 Flange Sub-Assy, Universal Joint[08.1999 - 12.2001] NCP15 ＮＯ．２ |
37304-12010 |
US $33.34 |
||
|
37304
|
37304
37304-20010 Flange Sub-Assy, Universal Joint[08.1999 - 12.2001] NCP15 ＮＯ．１ |
37304-20010 |
US $42.81 |
||
|
37331
|
37331
37331-30010 Cover, Sliding Shaft Dust[08.1999 - 12.2001] NCP15 |
37331-30010 |
US $10.48 |
||
|
9011910440
|
9011910440
90119-10440 Bolt, No.1 (For Center Support Bearing) |
90119-10440 |
US $4.48 |
||
