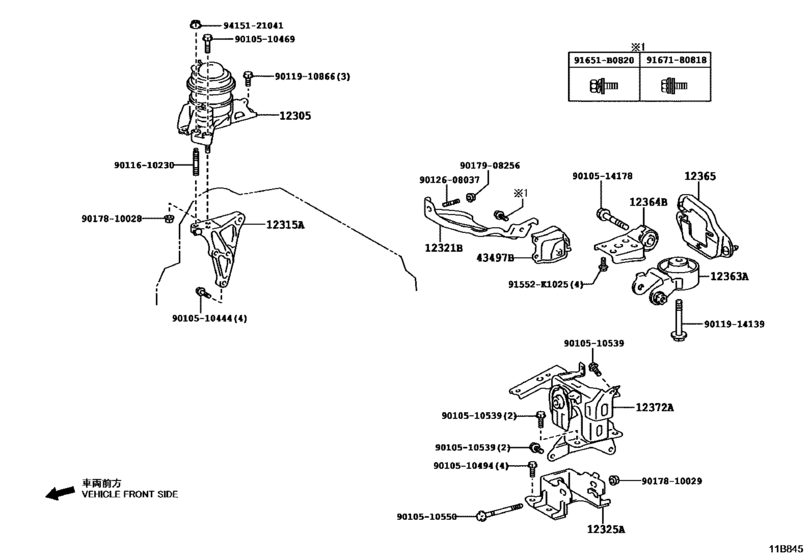

Mounting ([01.2017 - ] (1701- )1NZFXE) Diagram Toyota VITZ
- Year
- 2017 - 2018
- Sales region
- Japan
- Frame
- NHP130
- grade
- U
- ENGINE
- 1NZFXE
- TRANSMISSION
- CVT
- From
- 01.2017
- No.of Doors
- 5D
- Vehicle Model
- VITZ
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12305
|
12305
12305-21451
Insulator Sub-Assy, Engine Mounting, Rh
[01.2017 -] 1NZFXE..NHP130..CBU |
12305-21451 |
— | ||
| replacement | |||||
|
12305
|
12305
12305-21570 Insulator Sub-Assy, Engine Mounting[01.2017 -] 1NZFXE..NHP130..CBU |
12305-21570 |
US $172.80 |
||
|
12315A
|
12315A
12315-21060 Bracket, Engine Mounting, Rh(For Transverse Engine)[01.2017 -] 1NZFXE..NHP130..CBU |
12315-21060 |
US $52.29 |
||
|
12321B
|
12321B
43498-52090 Insulator Sub-Assy, Drive Shaft Heat[01.2017 -] 1NZFXE..NHP130..CBU |
43498-52090 |
US $18.49 |
||
|
12325A
|
12325A
12325-21260 Bracket, Engine Mounting, Lh(For Transverse Engine)[01.2017 -] 1NZFXE..NHP130..CBU |
12325-21260 |
US $43.62 |
||
|
12363A
|
12363A
12363-21200 Rod, Engine Moving Control[01.2017 -] 1NZFXE..NHP130..CBU |
12363-21200 |
US $50.67 |
||
|
12364B
|
12364B
12364-21130 Rod, Engine Lateral Control[01.2017 -] 1NZFXE..NHP130..CBU |
12364-21130 |
US $51.83 |
||
|
12365
|
12365
12365-40010 Cover, Engine Moving Control Rod[01.2017 -] 1KRFE..KSP130..CBU 寒冷地仕様; 1NZFXE,1NR#..NHP130,NSP13#..CBU 寒冷地仕様 |
12365-40010 |
US $10.56 |
||
|
12372A
|
12372A
12372-21390 Insulator, Engine Mounting, Lh(For Transverse Engine)[01.2017 -] 1NZFXE..NHP130..CBU |
12372-21390 |
US $116.92 |
||
|
43497B
|
43497B
43497-52050 Bracket, Drive Shaft Heat Insulator[01.2017 -] NHP130..CBU |
43497-52050 |
US $10.19 |
||
|
91552K1025
|
91552K1025
91552-K1025 BOLT FLANGE |
91552-K1025 |
US $1.60 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.11 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $2.48 |
||
|
9010510444
|
9010510444
90105-10444 Shaft, Clutch Pedal |
90105-10444 |
from US $1.40 |
||
|
9010510469
|
9010510469
90105-10469 Bolt (For Rear Axle Bearing Case Rh) |
90105-10469 |
from US $1.44 |
||
|
9010510494
|
9010510494
90105-10494 BOLT FLANGE |
90105-10494 |
US $1.60 |
||
|
9010510539
|
9010510539
90105-10539 New Genuine Part |
90105-10539 |
US $1.76 |
||
|
9010510550
|
9010510550
90105-10550 BOLT FLANGE |
90105-10550 |
US $3.84 |
||
|
9010514178
|
9010514178
90105-14178 Bolt |
90105-14178 |
US $4.96 |
||
|
9011610230
|
9011610230
90116-10230 New Genuine Part |
90116-10230 |
US $3.04 |
||
|
9011910866
|
9011910866
90119-10866 BOLT WWASHER |
90119-10866 |
from US $1.05 |
||
|
9011914139
|
9011914139
90119-14139 New Genuine Part |
90119-14139 |
US $5.76 |
||
|
9012608037
|
9012608037
90126-08037 Bolt, Stud(For Oil Strainer) |
90126-08037 |
from US $3.90 |
||
|
9017810028
|
9017810028
90178-10028 New Genuine Part |
90178-10028 |
US $1.92 |
||
|
9017810029
|
9017810029
90178-10029 Nut(For Front Suspension Support) |
90178-10029 |
from US $0.96 |
||
|
9017908256
|
9017908256
90179-08256 NUT |
90179-08256 |
US $1.28 |
||
|
9167180818
|
9167180818
91671-80818 BOLT FLANGE |
91671-80818 |
from US $0.88 |
||
|
9415121041
|
9415121041
94151-21041 NUT FLANGE |
94151-21041 |
from US $1.07 |
||
