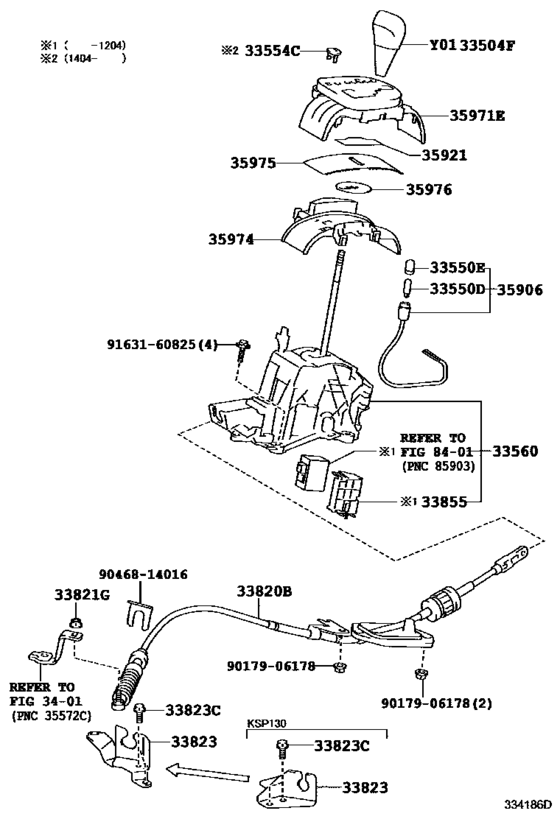

Shift Lever & Retainer ([12.2010 - ] (1012- )KSP130,NSP130) Diagram Toyota VITZ
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- NSP130
- grade
- U
- ENGINE
- 1NRFKE
- TRANSMISSION
- CVT
- From
- 04.2014
- No.of Doors
- 5D
- Vehicle Model
- VITZ
- Fuel Induction
- HTWCB
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-52160-C0 Knob Sub-Assy, Shift Lever[04.2014 - 01.2017] NCP131,NSP13#..U..CBU BLACK,TRIM2# |
33504-52160-C0 |
US $52.12 |
||
|
33550D
|
33550D
35955-74010 Bulb, Position Indicator LampPOSITION INDICATOR LAMP [04.2014 - 01.2017] KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU １２Ｖ １．４Ｗ |
35955-74010 |
US $4.16 |
||
|
33550E
|
33550E
35956-52010 Cap, Position Indicator Lamp[04.2014 - 01.2017] KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
35956-52010 |
US $1.60 |
||
|
33554C
|
33554C
33554-52120 Cover, Shift Lock Release Button[04.2014 - 01.2017] KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
33554-52120 |
US $0.55 |
||
|
33554C
|
33554C
33554-52170 Cover, Shift Lock Release Button[01.2017 -] KSP130,NHP130,NSP13#..(JEWL,U)..CBU |
33554-52170 |
US $0.87 |
||
|
33560
|
33560
33560-52422 Unit Assy, Shift Lock Control[04.2014 - 01.2017] KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
33560-52422 |
US $247.52 |
||
|
33820B
|
33820B
33820-52750 Cable Assy, Transmission Control[04.2014 - 01.2017] NSP130..CBU |
33820-52750 |
US $126.67 |
||
|
33821G
|
33821G
94151-80800 Nut (For Transmission Control Cable)[04.2014 - 01.2017] KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
94151-80800 |
from US $0.80 |
||
|
33823
|
33823
33823-52100 Bracket, Transmission Control Cable, No.1[04.2014 - 01.2017] NSP130..CBU |
33823-52100 |
US $7.28 |
||
|
33823C
|
33823C
91611-B0816 Bolt[04.2014 - 01.2017] KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
91611-B0816 |
from US $1.09 |
||
|
35906
|
35906
35906-52150 Wire Sub-Assy, Indicator Lamp[04.2014 - 01.2017] KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
35906-52150 |
US $6.70 |
||
|
35921
|
35921
35921-52130 Plate, Control Position Indicator[04.2014 - 01.2017] KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
35921-52130 |
US $10.19 |
||
|
35971E
|
35971E
35971-52710 Housing, Position Indicator[04.2014 - 01.2017] KSP130,NCP131,NSP13#..(JEWL,U)..CBU |
35971-52710 |
US $24.75 |
||
|
35971E
|
35971E
35971-52780 Housing, Position Indicator[01.2017 -] KSP130,NSP13#..(JEWL,U)..CBU |
35971-52780 |
US $24.75 |
||
|
35974
|
35974
35974-52050 Housing, Position Indicator, Lower[04.2014 - 01.2017] KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
35974-52050 |
US $32.91 |
||
|
35975
|
35975
35975-52140 Cover, Slide (For Position Indicator)[04.2014 - 01.2017] KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
35975-52140 |
US $6.99 |
||
|
35976
|
35976
35976-52140 Cover, Slide, No.2 (For Position Indicator)[04.2014 - 01.2017] KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
35976-52140 |
US $4.40 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9163160825
|
9163160825
91631-60825 BOLT WWASHER |
91631-60825 |
from US $0.84 |
