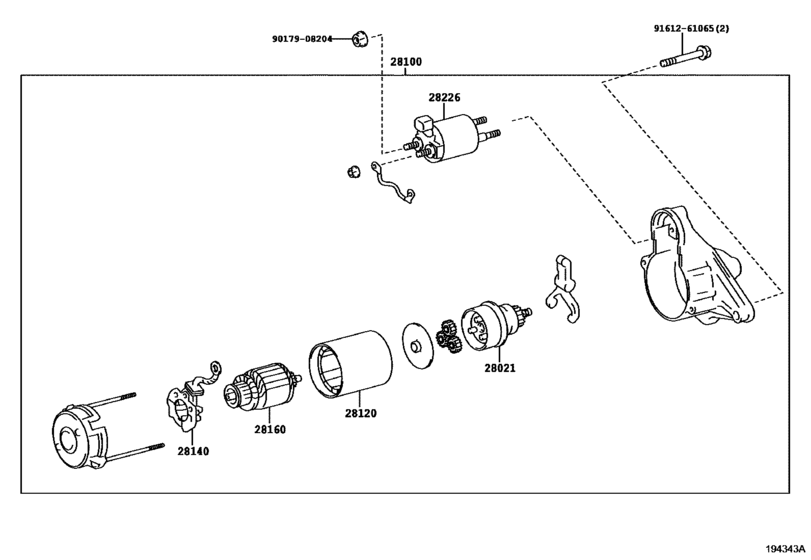

Starter ([04.2014 - ] 12V 1.6KW (1404- )1NRFKE) Diagram Toyota VITZ
- Year
- 2014 - 2018
- Sales region
- Japan
- Frame
- NSP130
- grade
- U
- ENGINE
- 1NRFKE
- TRANSMISSION
- CVT
- From
- 04.2014
- No.of Doors
- 5D
- Vehicle Model
- VITZ
- Fuel Induction
- HTWCB
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28021
|
28021
28021-21100 Clutch Sub-Assy, Starter Center Bearing[04.2014 - 01.2017] 1NRFKE..NSP130; 1NZFE..NCP131..U ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）; 1NZFE..NCP131..U ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）＆寒冷地仕様 |
28021-21100 |
US $77.17 |
||
|
28100
|
28100
28100-47210 Starter Assy[04.2014 - 01.2017] 1NRFKE..NSP130 １２Ｖ １．６ＫＷ |
28100-47210 |
US $885.25 |
||
|
28120
|
28120
28120-47210
Yoke Assy, Starter
[04.2014 - 01.2017] 1NRFKE..NSP130 |
28120-47210 |
— | ||
|
28140
|
28140
28140-21100
Holder Assy, Starter Brush
[04.2014 - 01.2017] 1NRFKE..NSP130; 1NZFE..NCP131..U ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）; 1NZFE..NCP131..U ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）＆寒冷地仕様 |
28140-21100 |
— | ||
|
28160
|
28160
28160-21100 Armature Assy, Starter[03.2015 - 01.2017] 1NRFKE..NSP130 |
28160-21100 |
US $176.18 |
||
|
28160
|
28160
28160-47210 Armature Assy, Starter[04.2014 - 03.2015] 1NRFKE..NSP130 |
28160-47210 |
US $176.18 |
||
|
28226
|
28226
28226-47210
Starter Kit, Battery Terminal
[04.2014 - 01.2017] 1NRFKE..NSP130 |
28226-47210 |
— | ||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9161261065
|
9161261065
91612-61065 Bolt(For Transaxle & Engine Setting) |
91612-61065 |
US $2.56 |
||
| replacement | |||||
|
9161261065
|
9161261065
90119-A0104 Bolt with Washer |
90119-A0104 |
US $3.72 |
||
