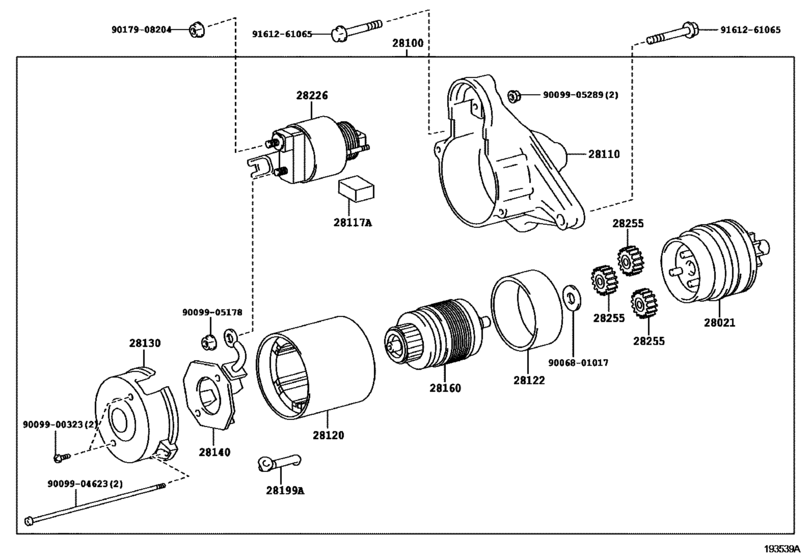

Starter ([12.2010 - 04.2014] 12V 1.6KW (1012-1404)1NRFE..NSP130) Diagram Toyota VITZ
- Year
- 2010 - 2014
- Sales region
- Japan
- Frame
- NSP130
- grade
- U
- ENGINE
- 1NRFE
- TRANSMISSION
- CVT
- From
- 12.2010
- To
- 04.2014
- No.of Doors
- 5D
- Vehicle Model
- VITZ
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28021
|
28021
28021-47110 Clutch Sub-Assy, Starter Center BearingSTARTER CENTER BEARING [06.2011 - 04.2014] 1NRFE..NSP130..(JEWL,U)..CBU ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）; 1NRFE..NSP130..(JEWL,U)..CBU ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）＆寒冷地仕様 |
28021-47110 |
US $167.44 |
||
|
28100
|
28100
28100-47170 Starter Assy[12.2010 - 03.2014] 1NRFE..NSP13#..CBU １２Ｖ １．０ＫＷ |
28100-47170 |
US $757.12 |
||
| replacement | |||||
|
28100
|
28100
28100-47171 Starter Assy[12.2010 - 03.2014] 1NRFE..NSP13#..CBU １２Ｖ １．０ＫＷ |
28100-47171 |
US $687.23 |
||
|
28100
|
28100
28100-47180 Starter Assy[12.2010 - 03.2014] 1NRFE..NSP13#..CBU １２Ｖ １．２ＫＷ,寒冷地仕様 |
28100-47180 |
US $813.90 |
||
| replacement | |||||
|
28100
|
28100
28100-47181 Starter Assy[12.2010 - 03.2014] 1NRFE..NSP13#..CBU １２Ｖ １．２ＫＷ,寒冷地仕様 |
28100-47181 |
US $739.65 |
||
|
28100
|
28100
28100-47190 Starter Assy[06.2011 - 04.2014] 1NRFE..NSP130..(JEWL,U)..CBU １２Ｖ １．６ＫＷ,”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）; 1NRFE..NSP130..(JEWL,U)..CBU １２Ｖ １．６ＫＷ,”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）＆寒冷地仕様 |
28100-47190 |
US $974.06 |
||
|
28110
|
28110
28110-47191 Housing Assy, Starter Drive[06.2011 - 04.2014] 1NRFE..NSP130..(JEWL,U)..CBU ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）; 1NRFE..NSP130..(JEWL,U)..CBU ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）＆寒冷地仕様 |
28110-47191 |
US $45.43 |
||
|
28117A
|
28117A
28117-47110
Seal, Rubber
[06.2011 - 04.2014] 1NRFE..NSP130..(JEWL,U)..CBU ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）; 1NRFE..NSP130..(JEWL,U)..CBU ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）＆寒冷地仕様 |
28117-47110 |
— | ||
|
28120
|
28120
28120-47110
Yoke Assy, Starter
[06.2011 - 04.2014] 1NRFE..NSP130..(JEWL,U)..CBU ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）; 1NRFE..NSP130..(JEWL,U)..CBU ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）＆寒冷地仕様 |
28120-47110 |
— | ||
|
28122
|
28122
28122-47110
Collar, Space
[06.2011 - 04.2014] 1NRFE..NSP130..(JEWL,U)..CBU ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）; 1NRFE..NSP130..(JEWL,U)..CBU ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）＆寒冷地仕様 |
28122-47110 |
— | ||
|
28130
|
28130
28130-47110 Frame Assy, Starter Commutator EndSTARTER COMMUTATOR END [06.2011 - 04.2014] 1NRFE..NSP130..(JEWL,U)..CBU ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）; 1NRFE..NSP130..(JEWL,U)..CBU ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）＆寒冷地仕様 |
28130-47110 |
US $31.16 |
||
|
28140
|
28140
28140-21070 Holder Assy, Starter Brush[12.2010 - 04.2014] 1N#..NCP131,NSP13#..CBU |
28140-21070 |
from US $13.53 |
||
|
28140
|
28140
28140-47110
Holder Assy, Starter Brush
[06.2011 - 04.2014] 1NRFE..NSP130..(JEWL,U)..CBU ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）; 1NRFE..NSP130..(JEWL,U)..CBU ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）＆寒冷地仕様 |
28140-47110 |
— | ||
|
28160
|
28160
28160-21070 Armature Assy, Starter[12.2010 - 04.2014] 1N#..NCP131,NSP13#..CBU |
28160-21070 |
US $125.80 |
||
|
28160
|
28160
28160-21080 Armature Assy, Starter[12.2010 - 04.2014] 1N#..NCP131,NSP13#..CBU 寒冷地仕様 |
28160-21080 |
US $138.32 |
||
|
28160
|
28160
28180-47110
Armature Assy, Starter
[06.2011 - 04.2014] 1NRFE..NSP130..(JEWL,U)..CBU ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）; 1NRFE..NSP130..(JEWL,U)..CBU ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）＆寒冷地仕様 |
28180-47110 |
— | ||
|
28199A
|
28199A
28199-31090
Protector, Dust Starter
[06.2011 - 04.2014] 1NRFE..NSP130..(JEWL,U)..CBU ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）; 1NRFE..NSP130..(JEWL,U)..CBU ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）＆寒冷地仕様 |
28199-31090 |
— | ||
|
28226
|
28226
28226-21080
Starter Kit, Battery Terminal
[12.2010 - 04.2014] 1N#..NCP131,NSP13#..CBU |
28226-21080 |
— | ||
| replacement | |||||
|
28226
|
28226
28226-21081
Starter Kit, Battery Terminal
[12.2010 - 04.2014] 1N#..NCP131,NSP13#..CBU |
28226-21081 |
— | ||
|
28226
|
28226
28226-47190
Starter Kit, Battery Terminal
[06.2011 - 04.2014] 1NRFE..NSP130..(JEWL,U)..CBU ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）; 1NRFE..NSP130..(JEWL,U)..CBU ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）＆寒冷地仕様 |
28226-47190 |
— | ||
|
28255
|
28255
28255-47110
Gear, Planet
[06.2011 - 04.2014] 1NRFE..NSP130..(JEWL,U)..CBU ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）; 1NRFE..NSP130..(JEWL,U)..CBU ”ＳＭＡＲＴ ＳＴＯＰパッケージ”＊（Ｉ）＆寒冷地仕様 |
28255-47110 |
— | ||
|
9006801017
|
9006801017
90068-01017
New Genuine Part
|
90068-01017 |
— | ||
|
9009900323
|
9009900323
90099-00323
Screw, Starter
|
90099-00323 |
— | ||
|
9009904623
|
9009904623
90099-04623
New Genuine Part
|
90099-04623 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9009905289
|
9009905289
90099-05289
New Genuine Part
|
90099-05289 |
— | ||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9161261065
|
9161261065
91612-61065 Bolt(For Transaxle & Engine Setting) |
91612-61065 |
US $2.56 |
||
| replacement | |||||
|
9161261065
|
9161261065
90119-A0104 Bolt with Washer |
90119-A0104 |
US $3.72 |
||
