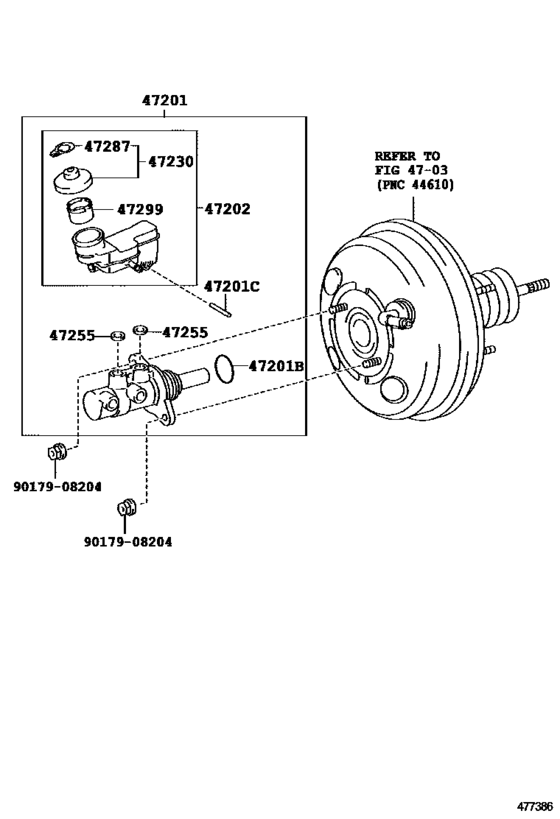

Brake Master Cylinder ([12.2010 - ] (1012- )KSP130,NCP131,NSP13#) Diagram Toyota VITZ
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- NSP135
- grade
- U
- ENGINE
- 1NRFE
- TRANSMISSION
- CVT
- From
- 12.2010
- No.of Doors
- 5D
- Vehicle Model
- VITZ
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47201
|
47201
47201-52580 Cylinder Sub-Assy, Brake Master[12.2010 - 04.2014] NCP131,NSP135..(F,JEWL,U)..CBU |
47201-52580 |
US $301.39 |
||
|
47201
|
47201
47201-52590 Cylinder Sub-Assy, Brake Master[04.2014 - 01.2017] KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
47201-52590 |
US $262.08 |
||
|
47201B
|
47201B
90015-AH002 Ring, O(For Brake Master Cylinder)[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
90015-AH002 |
US $3.20 |
||
|
47201C
|
47201C
90029-15803 Ring Pin, Brake Master Cylinder[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
90029-15803 |
US $1.05 |
||
|
47202
|
47202
47220-52260 Reservoir Sub-Assy, Brake Master Cylinder[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
47220-52260 |
US $80.08 |
||
|
47230
|
47230
47230-20140 Cap Assy, Brake Master Cylinder Reservoir Filler[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
47230-20140 |
from US $7.22 |
||
|
47255
|
47255
90029-48001 Grommet, Master Cylinder Reservoir[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
90029-48001 |
US $5.76 |
||
|
47287
|
47287
47287-20010 Label, Brake Fluid Information[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
47287-20010 |
US $2.08 |
||
|
47299
|
47299
47299-25010 Strainer, Master Cylinder Reservoir[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
47299-25010 |
US $5.42 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
