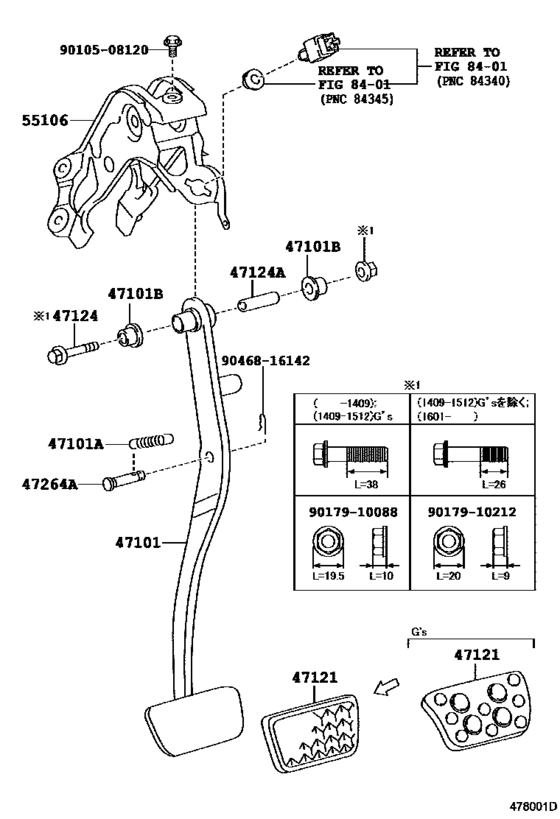

Brake Pedal & Bracket ([12.2010 - ] (1012- )KSP130,NCP131,NSP13#) Diagram Toyota VITZ
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- NSP135
- grade
- U
- ENGINE
- 1NRFE
- TRANSMISSION
- CVT
- From
- 12.2010
- No.of Doors
- 5D
- Vehicle Model
- VITZ
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101
|
47101
47101-52240
Pedal Sub-Assy, Brake
[12.2010 - 12.2011] KSP130,NCP131,NSP13#..CVT..CBU |
47101-52240 |
— | ||
| replacement | |||||
|
47101
|
47101
47101-52241 Pedal Sub-Assy, Brake[12.2010 - 12.2011] KSP130,NCP131,NSP13#..CVT..CBU |
47101-52241 |
US $33.02 |
||
|
47101
|
47101
47101-52241 Pedal Sub-Assy, Brake[01.2012 - 04.2014] KSP130,NCP131,NSP13#..CVT..CBU |
47101-52241 |
US $33.02 |
||
|
47101
|
47101
47101-52370 Pedal Sub-Assy, Brake[04.2014 - 01.2017] KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
47101-52370 |
US $23.59 |
||
|
47101A
|
47101A
90506-14077 Spring(For Brake Pedal Return)[12.2010 - 05.2012] KSP130,NCP131,NSP13#..CBU |
90506-14077 |
US $1.40 |
||
|
47101A
|
47101A
90506-14088 Spring(For Brake Pedal Return)[05.2012 - 04.2014] KSP130,NCP131,NSP13#..CBU |
90506-14088 |
US $1.92 |
||
|
47101B
|
47101B
90386-13015 Bush(For Clutch Pedal)[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
90386-13015 |
from US $0.78 |
||
|
47121
|
47121
47121-52010 Pad, Brake Pedal[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CVT..CBU |
47121-52010 |
from US $3.34 |
||
|
47121
|
47121
47121-52020 Pad, Brake Pedal[09.2014 - 01.2017] KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
47121-52020 |
US $4.16 |
||
|
47124
|
47124
90105-10444 Shaft, Clutch Pedal[04.2011 - 04.2014] KSP130,NCP131,NSP13#..CBU |
90105-10444 |
from US $1.40 |
||
|
47124
|
47124
90109-10167 Shaft, Clutch Pedal[12.2010 - 04.2011] KSP130,NCP131,NSP13#..CBU |
90109-10167 |
US $3.04 |
||
|
47124
|
47124
91552-81055 Shaft, Brake Pedal[09.2014 - 01.2017] KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU |
91552-81055 |
US $2.56 |
||
|
47124A
|
47124A
90387-10003 Collar, Clutch Pedal Shaft[04.2011 - 04.2014] KSP130,NCP131,NSP13#..CBU |
90387-10003 |
from US $4.11 |
||
|
47264A
|
47264A
90249-08051 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
90249-08051 |
US $2.72 |
||
|
55106
|
55106
55106-52130 Support Sub-Assy, Brake Pedal[12.2010 - 04.2011] KSP130,NCP131,NSP13#..CBU |
55106-52130 |
US $37.86 |
||
| replacement | |||||
|
55106
|
55106
55106-52H01 Support Sub-Assy, Brake Pedal[12.2010 - 04.2011] KSP130,NCP131,NSP13#..CBU |
55106-52H01 |
US $46.16 |
||
|
55106
|
55106
55106-52131 Support Sub-Assy, Brake Pedal[04.2011 - 04.2014] KSP130,NCP131,NSP13#..CBU |
55106-52131 |
US $28.54 |
||
|
9010508120
|
9010508120
90105-08120 New Genuine Part |
90105-08120 |
US $1.44 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $1.13 |
||
|
9017910212
|
9017910212
90179-10212 Nut(For Front Suspension Support) |
90179-10212 |
from US $1.21 |
||
|
9046816142
|
9046816142
90468-16142 Clip(For Push Rod Clevis Pin) |
90468-16142 |
from US $0.88 |
||
