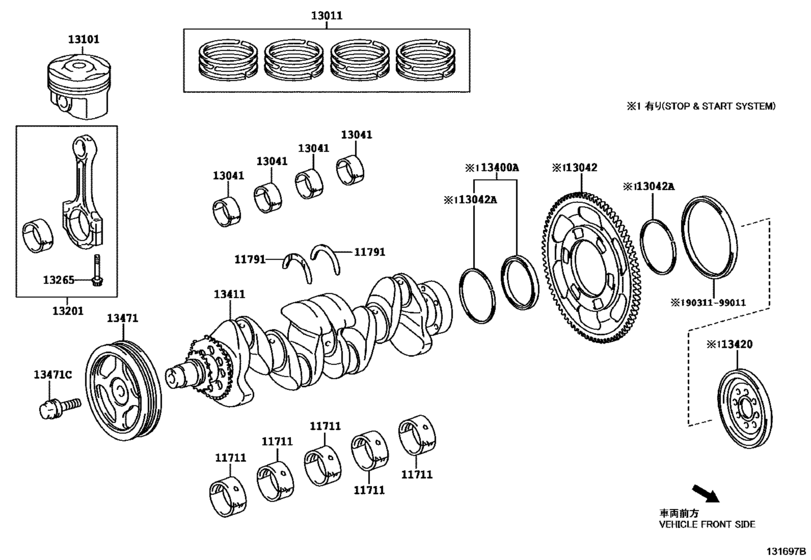

Crankshaft & Piston ([12.2010 - ] (1012- )1NRFE) Diagram Toyota VITZ
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- NSP135
- grade
- U
- ENGINE
- 1NRFE
- TRANSMISSION
- CVT
- From
- 12.2010
- No.of Doors
- 5D
- Vehicle Model
- VITZ
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11711
|
11711
11701-47011-02
Bearing, Crankshaft
[12.2010 - 06.2012] 1NRFE..NSP13#..CBU MARK2,修理書参照 |
11701-47011-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-47012-02
Bearing, Crankshaft
[12.2010 - 06.2012] 1NRFE..NSP13#..CBU MARK2,修理書参照 |
11701-47012-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-47013-02 Bearing, Crankshaft[12.2010 - 06.2012] 1NRFE..NSP13#..CBU MARK2,修理書参照 |
11701-47013-02 |
from US $15.27 |
||
|
11711
|
11711
11701-47011-03 Bearing, CrankshaftCRANKSHAFT [12.2010 - 06.2012] 1NRFE..NSP13#..CBU MARK3,修理書参照 |
11701-47011-03 |
US $34.94 |
||
| replacement | |||||
|
11711
|
11711
11701-47012-03 Bearing, Crankshaft[12.2010 - 06.2012] 1NRFE..NSP13#..CBU MARK3,修理書参照 |
11701-47012-03 |
US $26.35 |
||
|
11711
|
11711
11701-47011-04 Bearing, CrankshaftCRANKSHAFT [12.2010 - 06.2012] 1NRFE..NSP13#..CBU MARK4,修理書参照 |
11701-47011-04 |
US $34.94 |
||
| replacement | |||||
|
11711
|
11711
11701-47012-04 Bearing, Crankshaft[12.2010 - 06.2012] 1NRFE..NSP13#..CBU MARK4,修理書参照 |
11701-47012-04 |
US $26.35 |
||
|
11711
|
11711
11701-47011-05 Bearing, CrankshaftCRANKSHAFT [12.2010 - 06.2012] 1NRFE..NSP13#..CBU MARK5,修理書参照 |
11701-47011-05 |
US $34.94 |
||
| replacement | |||||
|
11711
|
11711
11701-47012-05 Bearing, Crankshaft[12.2010 - 06.2012] 1NRFE..NSP13#..CBU MARK5,修理書参照 |
11701-47012-05 |
US $26.35 |
||
|
11711
|
11711
11701-47012-02
Bearing, Crankshaft
[06.2012 - 12.2013] 1NRFE..NSP13#..CBU MARK2,修理書参照 |
11701-47012-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-47013-02 Bearing, Crankshaft[06.2012 - 12.2013] 1NRFE..NSP13#..CBU MARK2,修理書参照 |
11701-47013-02 |
from US $15.27 |
||
|
11711
|
11711
11701-47012-03 Bearing, Crankshaft[06.2012 - 12.2013] 1NRFE..NSP13#..CBU MARK3,修理書参照 |
11701-47012-03 |
US $26.35 |
||
|
11711
|
11711
11701-47012-04 Bearing, Crankshaft[06.2012 - 12.2013] 1NRFE..NSP13#..CBU MARK4,修理書参照 |
11701-47012-04 |
US $26.35 |
||
|
11711
|
11711
11701-47012-05 Bearing, Crankshaft[06.2012 - 12.2013] 1NRFE..NSP13#..CBU MARK5,修理書参照 |
11701-47012-05 |
US $26.35 |
||
|
11711
|
11711
11701-47013-02 Bearing, Crankshaft[01.2017 -] 1NRFE..NSP135..CBU MARK2,修理書参照 |
11701-47013-02 |
from US $15.27 |
||
|
11711
|
11711
11701-47013-03 Bearing, Crankshaft[01.2017 -] 1NRFE..NSP135..CBU MARK3,修理書参照 |
11701-47013-03 |
from US $14.08 |
||
|
11711
|
11711
11701-47013-04 Bearing, Crankshaft[01.2017 -] 1NRFE..NSP135..CBU MARK4,修理書参照 |
11701-47013-04 |
from US $14.12 |
||
|
11711
|
11711
11701-47013-05 Bearing, Crankshaft[01.2017 -] 1NRFE..NSP135..CBU MARK5,修理書参照 |
11701-47013-05 |
US $26.35 |
||
|
11711
|
11711
11701-47030-02
Bearing, Crankshaft
[12.2013 - 04.2014] 1NRFE..NSP13#..CBU MARK2,修理書参照 |
11701-47030-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-47032-02 Bearing, Crankshaft[12.2013 - 04.2014] 1NRFE..NSP13#..CBU MARK2,修理書参照 |
11701-47032-02 |
US $23.46 |
||
|
11711
|
11711
11701-47030-03 Bearing, Crankshaft[12.2013 - 04.2014] 1NRFE..NSP13#..CBU MARK3,修理書参照 |
11701-47030-03 |
US $29.12 |
||
| replacement | |||||
|
11711
|
11711
11701-47031-03 Bearing, Crankshaft[12.2013 - 04.2014] 1NRFE..NSP13#..CBU MARK3,修理書参照 |
11701-47031-03 |
US $29.12 |
||
|
11711
|
11711
11701-47030-04 Bearing, Crankshaft[12.2013 - 04.2014] 1NRFE..NSP13#..CBU MARK4,修理書参照 |
11701-47030-04 |
US $29.12 |
||
| replacement | |||||
|
11711
|
11711
11701-47031-04 Bearing, Crankshaft[12.2013 - 04.2014] 1NRFE..NSP13#..CBU MARK4,修理書参照 |
11701-47031-04 |
US $29.12 |
||
|
11711
|
11711
11701-47030-05 Bearing, Crankshaft[12.2013 - 04.2014] 1NRFE..NSP13#..CBU MARK5,修理書参照 |
11701-47030-05 |
US $29.12 |
||
| replacement | |||||
|
11711
|
11711
11701-47032-05 Bearing, Crankshaft[12.2013 - 04.2014] 1NRFE..NSP13#..CBU MARK5,修理書参照 |
11701-47032-05 |
US $23.46 |
||
|
11791
|
11791
11791-47010 Washer, Crankshaft Thrust, UpperCRANKSHAFT THRUST, UPPER [12.2010 - 12.2013] 1NRFE..NSP13#..CBU ＳＴＤ |
11791-47010 |
from US $19.52 |
||
|
11791
|
11791
11791-47011 Washer, Crankshaft Thrust, Upper[01.2017 -] 1NRFE..NSP135..CBU ＳＴＤ |
11791-47011 |
US $23.44 |
||
|
11791
|
11791
11791-47030 Washer, Crankshaft Thrust, Upper[12.2013 - 04.2014] 1NRFE..NSP13#..CBU ＳＴＤ |
11791-47030 |
US $25.92 |
||
| replacement | |||||
|
11791
|
11791
11791-47031 Washer, Crankshaft Thrust, Upper[12.2013 - 04.2014] 1NRFE..NSP13#..CBU ＳＴＤ |
11791-47031 |
US $23.44 |
||
|
13011
|
13011
13011-47030 Ring Set, PistonPISTON [12.2010 - 09.2011] 1NRFE..NSP13#..CBU ＳＴＤ |
13011-47030 |
US $220.15 |
||
| replacement | |||||
|
13011
|
13011
13011-47031 Ring Set, Piston[12.2010 - 09.2011] 1NRFE..NSP13#..CBU ＳＴＤ |
13011-47031 |
from US $142.78 |
||
|
13011
|
13011
13011-47031 Ring Set, Piston[09.2011 - 01.2013] 1NRFE..NSP13#..CBU ＳＴＤ |
13011-47031 |
from US $142.78 |
||
|
13011
|
13011
13011-47032 Ring Set, Piston[01.2013 - 09.2013] 1NRFE..NSP13#..CBU ＳＴＤ |
13011-47032 |
US $144.14 |
||
| replacement | |||||
|
13011
|
13011
13011-47033 Ring Set, Piston[01.2013 - 09.2013] 1NRFE..NSP13#..CBU ＳＴＤ |
13011-47033 |
US $118.80 |
||
|
13011
|
13011
13011-47033 Ring Set, Piston[09.2013 - 04.2014] 1NRFE..NSP13#..CBU ＳＴＤ |
13011-47033 |
US $118.80 |
||
|
13041
|
13041
13041-47010-01
Bearing, Connecting Rod
[12.2010 - 08.2012] 1NRFE..NSP13#..CBU MARK1,修理書参照 |
13041-47010-01 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-47011-01
Bearing, Connecting Rod
[12.2010 - 08.2012] 1NRFE..NSP13#..CBU MARK1,修理書参照 |
13041-47011-01 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-47012-01 Bearing, Connecting Rod[12.2010 - 08.2012] 1NRFE..NSP13#..CBU MARK1,修理書参照 |
13041-47012-01 |
from US $11.27 |
||
|
13041
|
13041
13041-47010-02
Bearing, Connecting Rod
[12.2010 - 08.2012] 1NRFE..NSP13#..CBU MARK2,修理書参照 |
13041-47010-02 |
— | ||
| replacements | |||||
|
13041
|
13041
13041-47011-02 Bearing, Connecting Rod[12.2010 - 08.2012] 1NRFE..NSP13#..CBU MARK2,修理書参照 |
13041-47011-02 |
US $16.89 |
||
|
13041
|
13041
13041-47012-02 Bearing, Connecting Rod[12.2010 - 08.2012] 1NRFE..NSP13#..CBU MARK2,修理書参照 |
13041-47012-02 |
from US $11.27 |
||
|
13041
|
13041
13041-47010-03 Bearing, Connecting RodCONNECTING ROD [12.2010 - 08.2012] 1NRFE..NSP13#..CBU MARK3,修理書参照 |
13041-47010-03 |
US $22.42 |
||
| replacement | |||||
|
13041
|
13041
13041-47011-03 Bearing, Connecting Rod[12.2010 - 08.2012] 1NRFE..NSP13#..CBU MARK3,修理書参照 |
13041-47011-03 |
US $16.89 |
||
|
13041
|
13041
13041-47011-01
Bearing, Connecting Rod
[08.2012 - 04.2014] 1NRFE..NSP13#..CBU MARK1,修理書参照 |
13041-47011-01 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-47012-01 Bearing, Connecting Rod[08.2012 - 04.2014] 1NRFE..NSP13#..CBU MARK1,修理書参照 |
13041-47012-01 |
from US $11.27 |
||
|
13041
|
13041
13041-47011-02 Bearing, Connecting Rod[08.2012 - 04.2014] 1NRFE..NSP13#..CBU MARK2,修理書参照 |
13041-47011-02 |
US $16.89 |
||
|
13041
|
13041
13041-47011-03 Bearing, Connecting Rod[08.2012 - 04.2014] 1NRFE..NSP13#..CBU MARK3,修理書参照 |
13041-47011-03 |
US $16.89 |
||
|
13041
|
13041
13041-47012-01 Bearing, Connecting Rod[01.2017 -] 1NR#..NSP13#..CBU MARK1,修理書参照 |
13041-47012-01 |
from US $11.27 |
||
|
13041
|
13041
13041-47012-02 Bearing, Connecting Rod[01.2017 -] 1NR#..NSP13#..CBU MARK2,修理書参照 |
13041-47012-02 |
from US $11.27 |
||
|
13041
|
13041
13041-47012-03 Bearing, Connecting Rod[01.2017 -] 1NR#..NSP13#..CBU MARK3,修理書参照 |
13041-47012-03 |
from US $11.27 |
||
|
13101
|
13101
13101-47020
Piston Sub-Assy, W/pin
[12.2010 - 03.2012] 1NRFE..NSP13#..CBU ＳＴＤ |
13101-47020 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-47021 Piston Sub-Assy, W/pin (STD)[12.2010 - 03.2012] 1NRFE..NSP13#..CBU ＳＴＤ |
13101-47021 |
from US $65.91 |
||
|
13101
|
13101
13101-47021 Piston Sub-Assy, W/pin (STD)[03.2012 - 01.2013] 1NRFE..NSP13#..CBU ＳＴＤ |
13101-47021 |
from US $65.91 |
||
|
13101
|
13101
13101-47022 Piston Sub-Assy, W/pin[01.2013 - 04.2013] 1NRFE..NSP13#..CBU ＳＴＤ |
13101-47022 |
US $77.93 |
||
|
13101
|
13101
13101-47110 Piston Sub-Assy, W/pin[04.2013 - 04.2014] 1NRFE..NSP13#..CBU ＳＴＤ |
13101-47110 |
US $57.83 |
||
|
13201
|
13201
13201-49085 Rod Sub-Assy, ConnectingCONNECTING [12.2010 - 08.2012] 1NRFE..NSP13#..CBU |
13201-49085 |
US $112.11 |
||
| replacement | |||||
|
13201
|
13201
13201-49086
Rod Sub-Assy, Connecting
[12.2010 - 08.2012] 1NRFE..NSP13#..CBU |
13201-49086 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-49087 Rod Sub-Assy, Connecting[12.2010 - 08.2012] 1NRFE..NSP13#..CBU |
13201-49087 |
US $93.24 |
||
|
13201
|
13201
13201-49086
Rod Sub-Assy, Connecting
[08.2012 - 04.2014] 1NRFE..NSP13#..CBU |
13201-49086 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-49087 Rod Sub-Assy, Connecting[08.2012 - 04.2014] 1NRFE..NSP13#..CBU |
13201-49087 |
US $93.24 |
||
|
13201
|
13201
13201-49087 Rod Sub-Assy, Connecting[08.2016 - 01.2017] 1NR#..NSP13#..CBU |
13201-49087 |
US $93.24 |
||
|
13265
|
13265
13265-21020 Bolt, Connecting Rod[12.2010 - 04.2014] 1N#..NCP131,NSP13#..CBU |
13265-21020 |
US $4.80 |
||
|
13411
|
13411
13401-47011 Crankshaft[04.2014 - 01.2017] 1NRFE..NSP135..CBU |
13401-47011 |
US $684.90 |
||
|
13411
|
13411
13401-47020 Crankshaft[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
13401-47020 |
US $709.07 |
||
| replacement | |||||
|
13411
|
13411
13401-47011 Crankshaft[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
13401-47011 |
US $684.90 |
||
|
13471
|
13471
13470-47070 Pulley, Crankshaft[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
13470-47070 |
US $109.20 |
||
|
13471C
|
13471C
90119-12345 Bolt(For Crankshaft Pulley Set)[12.2010 - 04.2014] 1N#..NCP131,NSP13#..CBU |
90119-12345 |
US $3.84 |
||
|
9031199011
|
9031199011
90311-99011 SEAL TYPE T OIL |
90311-99011 |
US $61.41 |
||
