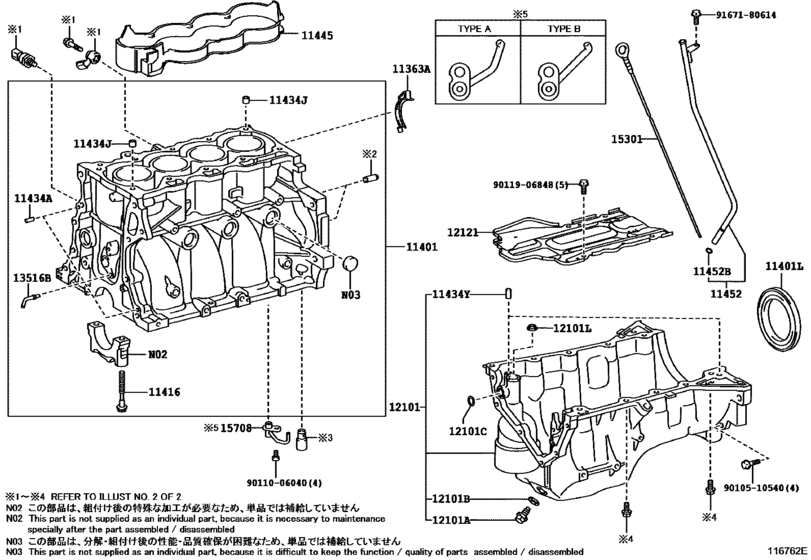

Cylinder Block ([12.2010 - ] (1012- )1NRFE) Diagram Toyota VITZ
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- NSP135
- grade
- U
- ENGINE
- 1NRFE
- TRANSMISSION
- CVT
- From
- 12.2010
- No.of Doors
- 5D
- Vehicle Model
- VITZ
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11363A
|
11363A
11363-40010 Cover, Flywheel Housing Side[12.2010 - 04.2014] 1NRFE..NSP13#..CBU; 1KRFE..KSP130..CBU |
11363-40010 |
US $3.64 |
||
|
11401
|
11401
11410-49025 Block Sub-Assy, Cylinder[12.2010 - 07.2013] 1NRFE..NSP13#..CBU |
11410-49025 |
US $1,528.80 |
||
| replacements | |||||
|
11401
|
11401
11410-49045 Block Sub-Assy, Cylinder[12.2010 - 07.2013] 1NRFE..NSP13#..CBU |
11410-49045 |
US $1,387.57 |
||
|
11401
|
11401
13011-47033 Ring Set, Piston[12.2010 - 07.2013] 1NRFE..NSP13#..CBU |
13011-47033 |
US $118.80 |
||
|
11401
|
11401
13101-47022 Piston Sub-Assy, W/pin[12.2010 - 07.2013] 1NRFE..NSP13#..CBU |
13101-47022 |
US $77.93 |
||
|
11401
|
11401
11410-49026 Block Sub-Assy, Cylinder[07.2013 - 09.2013] 1NRFE..NSP13#..CBU |
11410-49026 |
US $1,528.80 |
||
| replacements | |||||
|
11401
|
11401
11410-49045 Block Sub-Assy, Cylinder[07.2013 - 09.2013] 1NRFE..NSP13#..CBU |
11410-49045 |
US $1,387.57 |
||
|
11401
|
11401
13011-47033 Ring Set, Piston[07.2013 - 09.2013] 1NRFE..NSP13#..CBU |
13011-47033 |
US $118.80 |
||
|
11401
|
11401
13101-47022 Piston Sub-Assy, W/pin[07.2013 - 09.2013] 1NRFE..NSP13#..CBU |
13101-47022 |
US $77.93 |
||
|
11401
|
11401
11410-49028 Block Sub-Assy, Cylinder[09.2013 - 04.2014] 1NRFE..NSP13#..CBU |
11410-49028 |
US $1,528.80 |
||
| replacement | |||||
|
11401
|
11401
11410-49045 Block Sub-Assy, Cylinder[09.2013 - 04.2014] 1NRFE..NSP13#..CBU |
11410-49045 |
US $1,387.57 |
||
|
11401
|
11401
11410-49045 Block Sub-Assy, Cylinder[04.2014 - 01.2017] 1NRFE..NSP135..CBU |
11410-49045 |
US $1,387.57 |
||
|
11401L
|
11401L
90311-78003
Seal, Engine Rear Oil
[12.2010 - 05.2013] 1NRFE..NSP13#..CBU |
90311-78003 |
— | ||
| replacement | |||||
|
11401L
|
11401L
90311-78005 Seal, Engine Rear Oil[12.2010 - 05.2013] 1NRFE..NSP13#..CBU |
90311-78005 |
from US $53.66 |
||
|
11401L
|
11401L
90311-78005 Seal, Engine Rear Oil[05.2013 - 04.2014] 1NRFE..NSP13#..CBU |
90311-78005 |
from US $53.66 |
||
|
11416
|
11416
90910-02175 Bolt(For Crankshaft Bearing Cap Set)[12.2010 - 09.2013] 1NRFE..NSP13#..CBU |
90910-02175 |
US $3.04 |
||
|
11434A
|
11434A
90250-04097 Pin, Straight(For Camshaft Housing Rh)[12.2010 - 04.2014] 1NRFE..NSP13#..CBU 長さ＝１２，外径＝４．０ |
90250-04097 |
US $0.80 |
||
|
11434J
|
11434J
90253-13017 Pin, Ring W/head[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
90253-13017 |
from US $1.40 |
||
|
11434Y
|
11434Y
90250-08074 Pin, Straight(For Timing Gear Case)[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
90250-08074 |
US $1.60 |
||
|
11445
|
11445
11445-47010 Spacer, Cylinder Block Water JacketCYLINDER BLOCK WATER JACKET [12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
11445-47010 |
US $22.86 |
||
|
11452
|
11452
11409-47011 Guide, Oil Level Gage[12.2010 - 07.2012] 1NRFE..NSP13#..CBU |
11409-47011 |
US $21.69 |
||
| replacement | |||||
|
11452
|
11452
11409-47012 Guide, Oil Level Gage[12.2010 - 07.2012] 1NRFE..NSP13#..CBU |
11409-47012 |
US $16.31 |
||
|
11452
|
11452
11409-47012 Guide, Oil Level Gage[07.2012 - 04.2014] 1NRFE..NSP13#..CBU |
11409-47012 |
US $16.31 |
||
|
11452B
|
11452B
96741-19010 Ring, O(For Oil Level Gage Guide)[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
96741-19010 |
from US $2.32 |
||
|
12101
|
12101
12101-47130 Pan Sub-Assy, Oil[07.2011 - 12.2011] 1NRFE..NSP135..CBU |
12101-47130 |
US $445.54 |
||
| replacements | |||||
|
12101
|
12101
12101-47131 Pan Sub-Assy, Oil[07.2011 - 12.2011] 1NRFE..NSP135..CBU |
12101-47131 |
US $468.25 |
||
|
12101
|
12101
91551-F0855 Bolt(For Cylinder Head Set Sub)[07.2011 - 12.2011] 1NRFE..NSP135..CBU |
91551-F0855 |
from US $0.98 |
||
|
12101
|
12101
12101-47131 Pan Sub-Assy, Oil[12.2011 - 04.2014] 1NRFE..NSP135..CBU |
12101-47131 |
US $468.25 |
||
|
12101
|
12101
12101-47150 Pan Sub-Assy, Oil[12.2010 - 07.2011] 1NRFE..NSP135..CBU |
12101-47150 |
US $445.54 |
||
| replacements | |||||
|
12101
|
12101
12101-47131 Pan Sub-Assy, Oil[12.2010 - 07.2011] 1NRFE..NSP135..CBU |
12101-47131 |
US $468.25 |
||
|
12101
|
12101
91551-F0855 Bolt(For Cylinder Head Set Sub)[12.2010 - 07.2011] 1NRFE..NSP135..CBU |
91551-F0855 |
from US $0.98 |
||
|
12101A
|
12101A
90341-12032 Plug(For Oil Pan Drain)[12.2010 - 04.2014] 1NRFE..NSP13#..CBU; 1KRFE..KSP130..CBU |
90341-12032 |
from US $3.04 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[12.2010 - 04.2014] 1KRFE..KSP130..CBU; 1N#..NCP131,NSP13#..CBU |
90430-12031 |
from US $0.88 |
||
|
12101C
|
12101C
90301-19023 Ring, O(For Oil Pan)[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
90301-19023 |
from US $2.72 |
||
|
12101L
|
12101L
90430-12039 Ring, O(For Oil Pan)O(FOR OIL PAN) [12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
90430-12039 |
US $1.28 |
||
|
12121
|
12121
12121-B1060 Plate, Oil Pan Baffle, No.1OIL PAN BAFFLE, NO.1 [12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
12121-B1060 |
US $32.50 |
||
|
13516B
|
13516B
13516-40010 Jet, Oil[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
13516-40010 |
US $4.80 |
||
|
15301
|
15301
15301-47050 Gage Sub-Assy, Oil LevelOIL LEVEL [12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
15301-47050 |
US $9.49 |
||
|
15708
|
15708
15708-47030 Nozzle Sub-Assy, Oil, No.1OIL, NO.1 [12.2010 - 02.2011] 1NRFE..NSP13#..CBU ＴＹＰＥ Ａ：イラスト参照 |
15708-47030 |
US $13.54 |
||
| replacements | |||||
|
15708
|
15708
15708-47031 Nozzle Sub-Assy, Oil, No.1[12.2010 - 02.2011] 1NRFE..NSP13#..CBU ＴＹＰＥ Ａ：イラスト参照 |
15708-47031 |
US $13.54 |
||
| replacement | |||||
|
15708
|
15708
15708-47081 NOZZLE SUBASSY OIL[12.2010 - 02.2011] 1NRFE..NSP13#..CBU ＴＹＰＥ Ａ：イラスト参照 |
15708-47081 |
US $10.83 |
||
|
15708
|
15708
15708-47081 NOZZLE SUBASSY OIL[12.2010 - 02.2011] 1NRFE..NSP13#..CBU ＴＹＰＥ Ａ：イラスト参照 |
15708-47081 |
US $10.83 |
||
|
15708
|
15708
15708-47031 Nozzle Sub-Assy, Oil, No.1[07.2013 - 04.2014] 1NRFE..NSP13#..CBU ＴＹＰＥ Ａ：イラスト参照 |
15708-47031 |
US $13.54 |
||
| replacement | |||||
|
15708
|
15708
15708-47081 NOZZLE SUBASSY OIL[07.2013 - 04.2014] 1NRFE..NSP13#..CBU ＴＹＰＥ Ａ：イラスト参照 |
15708-47081 |
US $10.83 |
||
|
15708
|
15708
15708-47040 Nozzle Sub-Assy, Oil, No.1OIL, NO.1 [02.2011 - 03.2012] 1NRFE..NSP13#..CBU ＴＹＰＥ Ｂ：イラスト参照 |
15708-47040 |
US $14.71 |
||
| replacement | |||||
|
15708
|
15708
15708-47031 Nozzle Sub-Assy, Oil, No.1[02.2011 - 03.2012] 1NRFE..NSP13#..CBU ＴＹＰＥ Ｂ：イラスト参照 |
15708-47031 |
US $13.54 |
||
| replacement | |||||
|
15708
|
15708
15708-47081 NOZZLE SUBASSY OIL[02.2011 - 03.2012] 1NRFE..NSP13#..CBU ＴＹＰＥ Ｂ：イラスト参照 |
15708-47081 |
US $10.83 |
||
|
15708
|
15708
15708-47080 Nozzle Sub-Assy, Oil, No.1[02.2015 - 01.2017] 1NRFE..NSP135..CBU ＴＹＰＥ Ｂ：イラスト参照; 1NRFKE..NSP130 |
15708-47080 |
US $9.71 |
||
|
9010510540
|
9010510540
90105-10540 New Genuine Part |
90105-10540 |
US $1.31 |
||
|
9011006040
|
9011006040
90110-06040 BOLT HEXAGON SOCKET |
90110-06040 |
US $0.96 |
||
|
9011906848
|
9011906848
90119-06848 BOLT WWASHER |
90119-06848 |
US $0.96 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.68 |
||
