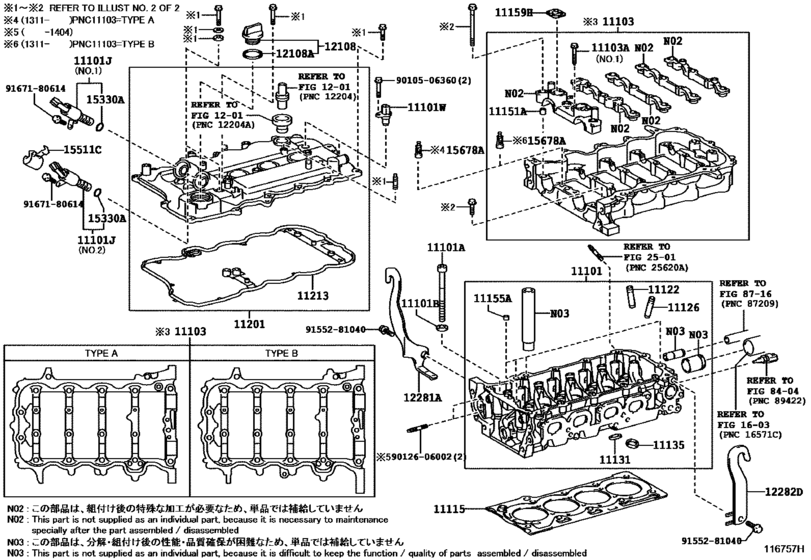

Cylinder Head ([12.2010 - ] (1012- )1NRFE) Diagram Toyota VITZ
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- NSP135
- grade
- U
- ENGINE
- 1NRFE
- TRANSMISSION
- CVT
- From
- 12.2010
- No.of Doors
- 5D
- Vehicle Model
- VITZ
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-49465 Head Sub-Assy, CylinderCYLINDER [12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
11101-49465 |
US $953.68 |
||
|
11101A
|
11101A
90910-02174 Bolt(For Cylinder Head Set)[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
90910-02174 |
from US $3.84 |
||
|
11101B
|
11101B
90201-10344 Washer, Plate(For Cylinder Head Set)[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
90201-10344 |
US $1.76 |
||
|
11101J
|
11101J
15330-47010 Valve Assy, Camshaft Timing Oil ControlCAMSHAFT TIMING OIL CONTROL [12.2010 - 04.2014] 1NRFE..NSP13#..CBU ＮＯ．１ |
15330-47010 |
from US $74.35 |
||
|
11101J
|
11101J
15330-47020 Valve Assy, Camshaft Timing Oil ControlCAMSHAFT TIMING OIL CONTROL [12.2010 - 04.2014] 1NRFE..NSP13#..CBU ＮＯ．２ |
15330-47020 |
from US $74.18 |
||
|
11101W
|
11101W
90919-05060 Sensor, Cam Position[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
90919-05060 |
from US $62.78 |
||
|
11103
|
11103
11103-47010 Housing Sub-Assy, CamshaftCAMSHAFT [12.2010 - 08.2013] 1NRFE..NSP13#..CBU |
11103-47010 |
US $343.62 |
||
| replacement | |||||
|
11103
|
11103
11103-47012 Housing Sub-Assy, Camshaft[12.2010 - 08.2013] 1NRFE..NSP13#..CBU |
11103-47012 |
US $343.62 |
||
|
11103
|
11103
11103-47011 Housing Sub-Assy, Camshaft[09.2013 - 01.2014] 1NRFE..NSP13#..CBU ＴＹＰＥ Ａ：イラスト参照 |
11103-47011 |
US $343.62 |
||
| replacement | |||||
|
11103
|
11103
11103-47012 Housing Sub-Assy, Camshaft[09.2013 - 01.2014] 1NRFE..NSP13#..CBU ＴＹＰＥ Ａ：イラスト参照 |
11103-47012 |
US $343.62 |
||
|
11103
|
11103
11103-47012 Housing Sub-Assy, Camshaft[01.2014 - 04.2014] 1NRFE..NSP13#..CBU ＴＹＰＥ Ａ：イラスト参照 |
11103-47012 |
US $343.62 |
||
|
11103
|
11103
11103-47040 Housing Sub-Assy, Camshaft[08.2013 - 11.2013] 1NRFE..NSP13#..CBU ＴＹＰＥ Ｂ：イラスト参照 |
11103-47040 |
US $343.62 |
||
| replacement | |||||
|
11103
|
11103
11103-47012 Housing Sub-Assy, Camshaft[08.2013 - 11.2013] 1NRFE..NSP13#..CBU ＴＹＰＥ Ｂ：イラスト参照 |
11103-47012 |
US $343.62 |
||
|
11103
|
11103
11103-47041 Housing Sub-Assy, Camshaft[12.2016 - 01.2017] 1NRFE..NSP135..CBU |
11103-47041 |
US $311.58 |
||
| replacement | |||||
|
11103
|
11103
11103-47012 Housing Sub-Assy, Camshaft[12.2016 - 01.2017] 1NRFE..NSP135..CBU |
11103-47012 |
US $343.62 |
||
|
11103
|
11103
11103-47901 Housing Sub-Assy, Camshaft[11.2013 - 04.2014] 1NRFE..NSP13#..CBU ＴＹＰＥ Ｂ：イラスト参照 |
11103-47901 |
US $343.62 |
||
| replacement | |||||
|
11103
|
11103
11103-47012 Housing Sub-Assy, Camshaft[11.2013 - 04.2014] 1NRFE..NSP13#..CBU ＴＹＰＥ Ｂ：イラスト参照 |
11103-47012 |
US $343.62 |
||
|
11103A
|
11103A
90105-08455 Bolt(For Camshaft Housing Set)[12.2010 - 04.2014] 1NRFE..NSP13#..CBU ＮＯ．２ |
90105-08455 |
US $1.92 |
||
|
11103A
|
11103A
90119-07009 Bolt(For Camshaft Housing Set)[12.2010 - 04.2014] 1NRFE..NSP13#..CBU ＮＯ．１ |
90119-07009 |
from US $0.86 |
||
|
11115
|
11115
11115-47050 Gasket, Cylinder HeadCYLINDER HEAD [12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
11115-47050 |
US $46.06 |
||
|
11122
|
11122
11122-31041 Bush, Intake Valve Guide[12.2010 - 04.2014] 1NRFE..NSP13#..CBU ＳＴＤ |
11122-31041 |
US $7.02 |
||
|
11122
|
11122
11123-31041 Bush, Intake Valve Guide[12.2010 - 04.2014] 1NRFE..NSP13#..CBU Ｏ／Ｓ ０．０５ |
11123-31041 |
US $7.02 |
||
|
11126
|
11126
11122-31041 Bush, Intake Valve Guide[12.2010 - 04.2014] 1NRFE..NSP13#..CBU ＳＴＤ |
11122-31041 |
US $7.02 |
||
|
11126
|
11126
11123-31041 Bush, Intake Valve Guide[12.2010 - 04.2014] 1NRFE..NSP13#..CBU Ｏ／Ｓ ０．０５ |
11123-31041 |
US $7.02 |
||
|
11131
|
11131
11131-47010 Seat, Intake ValveINTAKE VALVE [12.2010 - 04.2014] 1NRFE..NSP13#..CBU ＳＴＤ |
11131-47010 |
US $4.51 |
||
|
11131
|
11131
11132-47010 Seat, Intake ValveINTAKE VALVE [12.2010 - 04.2014] 1NRFE..NSP13#..CBU Ｏ／Ｓ ０．０３ |
11132-47010 |
US $9.46 |
||
|
11135
|
11135
11135-47010 Seat, Exhaust ValveEXHAUST VALVE [12.2010 - 04.2014] 1NRFE..NSP13#..CBU ＳＴＤ |
11135-47010 |
US $4.51 |
||
|
11135
|
11135
11136-47010 Seat, Exhaust ValveEXHAUST VALVE [12.2010 - 04.2014] 1NRFE..NSP13#..CBU Ｏ／Ｓ ０．０３ |
11136-47010 |
US $4.51 |
||
|
11151A
|
11151A
90253-13005 Pin, Ring(For Camshaft Bearing Cap Setting)[12.2010 - 04.2014] 1NRFE..NSP13#..CBU 長さ＝１２．５，外径＝８ |
90253-13005 |
from US $0.60 |
||
|
11155A
|
11155A
90253-11004 Pin, Ring[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
90253-11004 |
from US $0.92 |
||
|
11159H
|
11159H
11159-47010 Gasket, Camshaft Bearing Cap Oil HoleCAMSHAFT BEARING CAP OIL HOLE [12.2010 - 11.2013] 1NRFE..NSP13#..CBU |
11159-47010 |
US $8.80 |
||
|
11159H
|
11159H
11159-47020 Gasket, Camshaft Bearing Cap Oil Hole[11.2013 - 04.2014] 1NRFE..NSP13#..CBU |
11159-47020 |
US $6.08 |
||
|
11201
|
11201
11201-47100
Cover Sub-Assy, Cylinder Head
[12.2010 - 08.2011] 1NRFE..NSP13#..CBU |
11201-47100 |
— | ||
| replacement | |||||
|
11201
|
11201
11201-47130 Cover Sub-Assy, Cylinder Head[12.2010 - 08.2011] 1NRFE..NSP13#..CBU |
11201-47130 |
US $174.24 |
||
|
11201
|
11201
11201-47101
Cover Sub-Assy, Cylinder Head
[08.2011 - 04.2014] 1NRFE..NSP13#..CBU |
11201-47101 |
— | ||
| replacement | |||||
|
11201
|
11201
11201-47130 Cover Sub-Assy, Cylinder Head[08.2011 - 04.2014] 1NRFE..NSP13#..CBU |
11201-47130 |
US $174.24 |
||
|
11201
|
11201
11201-47130 Cover Sub-Assy, Cylinder Head[07.2014 - 01.2017] 1NRFE..NSP135..CBU |
11201-47130 |
US $174.24 |
||
|
11213
|
11213
11213-47020 Gasket, Cylinder Head CoverCYLINDER HEAD COVER [12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
11213-47020 |
from US $12.64 |
||
|
12108
|
12108
12180-38010 Cap Sub-Assy, Oil Filler[12.2010 - 04.2014] 1KRFE..KSP130..CBU; 1N#..NCP131,NSP13#..CBU |
12180-38010 |
from US $10.24 |
||
|
12108A
|
12108A
90430-35001 Gasket(For Oil Filler Cap)[12.2010 - 04.2014] 1KRFE..KSP130..CBU; 1N#..NCP131,NSP13#..CBU |
90430-35001 |
from US $1.21 |
||
|
12281A
|
12281A
12281-47022 Hanger, Engine, No.1ENGINE, NO.1 [12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
12281-47022 |
US $32.61 |
||
| replacement | |||||
|
12281A
|
12281A
12281-47023 Hanger, Engine, No.1[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
12281-47023 |
US $29.56 |
||
|
12281A
|
12281A
12281-47023 Hanger, Engine, No.1[04.2014 - 01.2017] 1NR#..NSP13#..CBU |
12281-47023 |
US $29.56 |
||
|
12282D
|
12282D
12282-47010 Hanger, Engine, No.2ENGINE, NO.2 [12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
12282-47010 |
US $20.68 |
||
|
15330A
|
15330A
90099-14137 Ring, O(For Cam Timing Oil Control Valve)[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
90099-14137 |
from US $2.22 |
||
|
15511C
|
15511C
15511-B1010 Cover, Oil Control Valve[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
15511-B1010 |
US $3.20 |
||
|
15678A
|
15678A
15678-31020 Filter, Oil Control Valve[11.2013 - 04.2014] 1NRFE..NSP13#..CBU |
15678-31020 |
from US $3.45 |
||
|
9010506360
|
9010506360
90105-06360 Bolt(For Head To Camshaft Bearing Cap) |
90105-06360 |
US $0.79 |
||
|
9012606002
|
9012606002
90126-06002 New Genuine Part |
90126-06002 |
US $2.40 |
||
|
9155281040
|
9155281040
91552-81040 Bolt(For Alternator) |
91552-81040 |
from US $1.21 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.68 |
||
