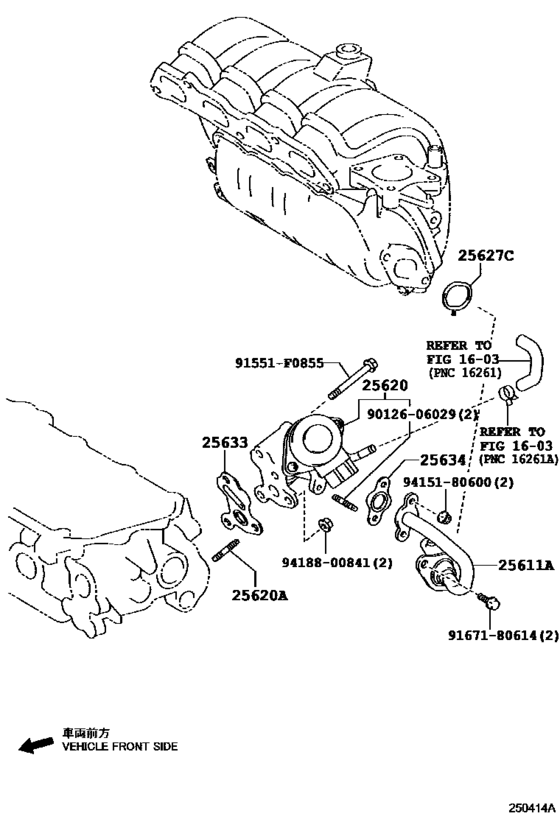

Exhaust Gas Recirculation System ([12.2010 - ] (1012- )1NRFE) Diagram Toyota VITZ
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- NSP135
- grade
- U
- ENGINE
- 1NRFE
- TRANSMISSION
- CVT
- From
- 12.2010
- No.of Doors
- 5D
- Vehicle Model
- VITZ
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25611A
|
25611A
25611-47011 Pipe, Egr, No.1[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
25611-47011 |
US $36.69 |
||
|
25620
|
25620
25620-47020 Valve Assy, EgrEGR [12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
25620-47020 |
US $264.96 |
||
|
25620A
|
25620A
90126-08063 Bolt, Stud(For Exhaust Manifold To Cylinder Head)STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) [12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
90126-08063 |
US $1.28 |
||
|
25627C
|
25627C
25629-47010 Gasket(For Egr Pipe No.2)[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
25629-47010 |
US $12 |
||
|
25633
|
25633
25633-47010 Gasket, Egr ValveEGR VALVE [12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
25633-47010 |
US $2.56 |
||
|
25634
|
25634
25634-47010 Gasket, Egr PipeEGR PIPE [12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
25634-47010 |
US $0.80 |
||
|
91551F0855
|
91551F0855
91551-F0855 Bolt(For Cylinder Head Set Sub) |
91551-F0855 |
from US $0.94 |
||
|
9012606029
|
9012606029
90126-06029 Bolt, Stud(For Vacuum Transmitting Pipe) |
90126-06029 |
from US $0.68 |
||
| replacement | |||||
|
9012606029
|
9012606029
90126-A0014 Bolt, Stud(For Oil Strainer) |
90126-A0014 |
US $1.77 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.68 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
|
9418800841
|
9418800841
94188-00841 NUT LOCK |
94188-00841 |
from US $0.80 |
||
