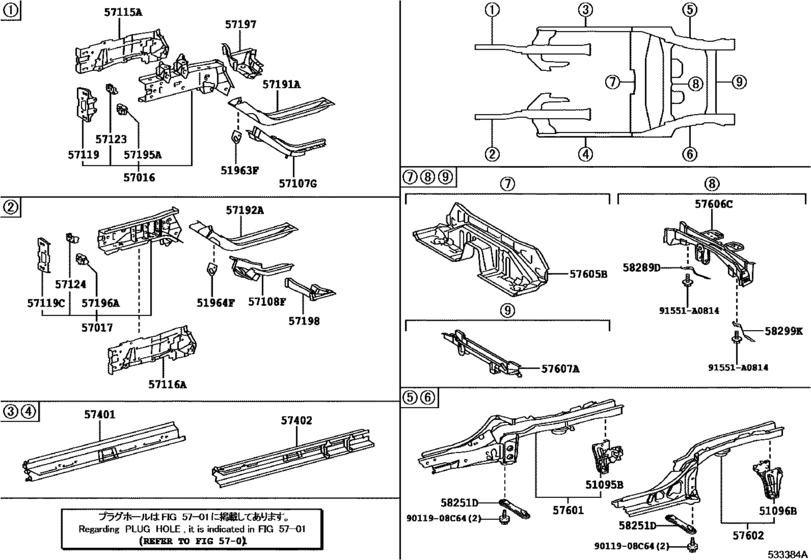

Floor Side Member ([12.2010 - ] (1012- )NSP135) Diagram Toyota VITZ
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- NSP135
- grade
- U
- ENGINE
- 1NRFE
- TRANSMISSION
- CVT
- From
- 12.2010
- No.of Doors
- 5D
- Vehicle Model
- VITZ
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51095B
|
51095B
51095-52020 Hook Sub-Assy, Transport, Rear Rh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
51095-52020 |
US $54.45 |
||
|
51096B
|
51096B
51096-52010 Hook Sub-Assy, Transport, Rear Lh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
51096-52010 |
US $52.27 |
||
|
51963F
|
51963F
51963-52050 Hook, Transport[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
51963-52050 |
US $9.32 |
||
|
51964F
|
51964F
51963-52050 Hook, Transport[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
51963-52050 |
US $9.32 |
||
|
57016
|
57016
57016-52070 Reinforcement Sub-Assy, Front Side Member, Rh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
57016-52070 |
US $123.76 |
||
|
57017
|
57017
57017-52060 Reinforcement Sub-Assy, Front Side Member, Lh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
57017-52060 |
US $109.20 |
||
|
57107G
|
57107G
57107-52030 Plate Sub-Assy, Front Side Member, No.2 Rh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
57107-52030 |
US $32.91 |
||
|
57108F
|
57108F
57108-52030 Bracket Sub-Assy, Strut Bar, Lh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
57108-52030 |
US $32.91 |
||
|
57115A
|
57115A
57025-52010 Member Sub-Assy, Front Side, Outer Rh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
57025-52010 |
US $76.96 |
||
|
57116A
|
57116A
57026-52010 Member Sub-Assy, Front Side, Outer Lh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
57026-52010 |
US $76.96 |
||
|
57119
|
57119
57119-52020 Plate, Front Side Member, Front[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
57119-52020 |
US $17.50 |
||
|
57119C
|
57119C
57129-52010 Plate, Front Side Member, Front[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
57129-52010 |
US $17.50 |
||
|
57123
|
57123
57123-52010 Support, Front Side Member, Rh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
57123-52010 |
US $10.19 |
||
|
57124
|
57124
57124-52010 Support, Front Side Member, Lh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
57124-52010 |
US $10.19 |
||
|
57191A
|
57191A
57191-52020 Member, Front Side, Inner Rear Rh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
57191-52020 |
US $91.73 |
||
|
57192A
|
57192A
57192-52020 Member, Front Side, Inner Rear Lh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
57192-52020 |
US $91.73 |
||
|
57195A
|
57195A
57195-52020 Reinforcement, Front Side Member, Front Rh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
57195-52020 |
US $10.19 |
||
|
57196A
|
57196A
57196-52010 Reinforcement, Front Side Member, Front Lh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
57196-52010 |
US $10.19 |
||
|
57197
|
57197
57197-52030 Box, Torque, Front Rh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
57197-52030 |
US $55.47 |
||
|
57198
|
57198
57198-52030 Box, Torque, Front Lh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
57198-52030 |
US $55.47 |
||
|
57401
|
57401
57401-52200 Member Sub-Assy, Main Floor Side, Rh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
57401-52200 |
US $186.37 |
||
|
57402
|
57402
57402-52220 Member Sub-Assy, Main Floor Side, Lh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
57402-52220 |
US $186.37 |
||
|
57601
|
57601
57601-52310 Member Sub-Assy, Rear Floor Side, Rh[12.2010 - 04.2014] NSP135..CBU |
57601-52310 |
US $393.12 |
||
| replacement | |||||
|
57601
|
57601
57601-52313 Member Sub-Assy, Rear Floor Side, Rh[12.2010 - 04.2014] NSP135..CBU |
57601-52313 |
US $356.72 |
||
|
57601
|
57601
57601-52313 Member Sub-Assy, Rear Floor Side, Rh[01.2015 - 01.2017] NSP135..CBU |
57601-52313 |
US $356.72 |
||
|
57602
|
57602
57602-52370 Member Sub-Assy, Rear Floor Side, Lh[12.2010 - 04.2014] NSP135..CBU |
57602-52370 |
US $393.12 |
||
| replacement | |||||
|
57602
|
57602
57602-52373 Member Sub-Assy, Rear Floor Side, Lh[12.2010 - 04.2014] NSP135..CBU |
57602-52373 |
US $356.72 |
||
|
57602
|
57602
57602-52373 Member Sub-Assy, Rear Floor Side, Lh[01.2015 - 01.2017] NSP135..CBU |
57602-52373 |
US $356.72 |
||
|
57605B
|
57605B
57605-52170 Member Sub-Assy, Rear Floor Cross, No.1[12.2010 - 04.2014] NSP135..CBU |
57605-52170 |
US $246.06 |
||
|
57606C
|
57606C
57606-52180 Member Sub-Assy, Rear Floor Cross, No.2[12.2010 - 07.2013] NSP135..CBU |
57606-52180 |
US $297.02 |
||
| replacement | |||||
|
57606C
|
57606C
57606-52183 Member Sub-Assy, Rear Floor Cross, No.2[12.2010 - 07.2013] NSP135..CBU |
57606-52183 |
US $269.36 |
||
|
57606C
|
57606C
57606-52181 Member Sub-Assy, Rear Floor Cross, No.2[08.2013 - 04.2014] NSP135..CBU |
57606-52181 |
US $297.02 |
||
| replacement | |||||
|
57606C
|
57606C
57606-52183 Member Sub-Assy, Rear Floor Cross, No.2[08.2013 - 04.2014] NSP135..CBU |
57606-52183 |
US $269.36 |
||
|
57606C
|
57606C
57606-52182 Member Sub-Assy, Rear Floor Cross, No.2[02.2015 - 01.2016] NSP135..CBU |
57606-52182 |
US $297.02 |
||
| replacement | |||||
|
57606C
|
57606C
57606-52183 Member Sub-Assy, Rear Floor Cross, No.2[02.2015 - 01.2016] NSP135..CBU |
57606-52183 |
US $269.36 |
||
|
57606C
|
57606C
57606-52183 Member Sub-Assy, Rear Floor Cross, No.2[02.2016 - 01.2017] NSP135..CBU |
57606-52183 |
US $269.36 |
||
|
57607A
|
57607A
57607-52071 Member Sub-Assy, Rear Floor Cross, No.3[12.2010 - 04.2014] NSP135..CBU |
57607-52071 |
US $179.09 |
||
|
58251D
|
58251D
58251-52020 Brace, Floor Panel, Front[12.2010 - 04.2014] NSP135..CBU |
58251-52020 |
US $14.88 |
||
|
58289D
|
58289D
58289-52040 Bracket, Floor Brake Hose, Rear[12.2010 - 04.2014] NSP135..CBU |
58289-52040 |
US $5.10 |
||
|
58299K
|
58299K
58299-52070 Bracket, Floor Brake Hose, Rear[12.2010 - 04.2014] NSP135..CBU |
58299-52070 |
US $6.84 |
||
|
91551A0814
|
91551A0814
91551-A0814 BOLT FLANGE |
91551-A0814 |
US $1.28 |
||
|
9011908C64
|
9011908C64
90119-08C64 Bolt with washer |
90119-08C64 |
US $1.44 |
||
