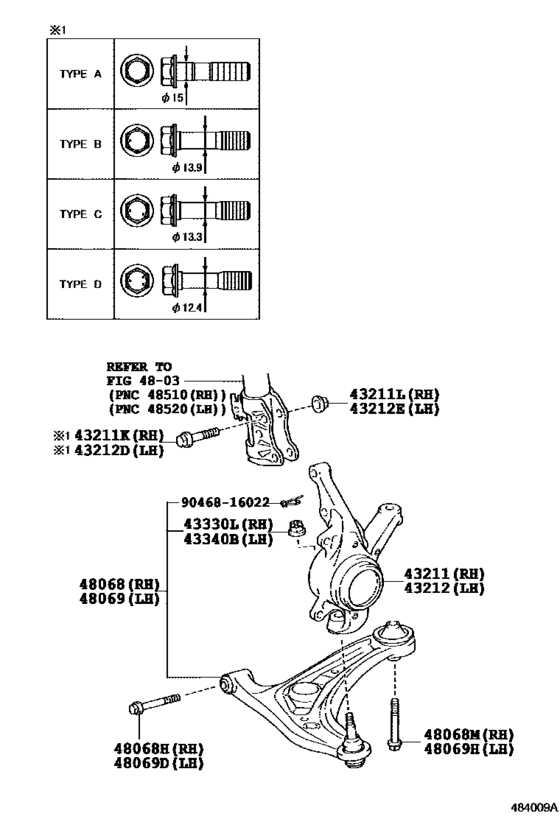

Front Axle Arm & Steering Knuckle ([12.2010 - ] (1012- )) Diagram Toyota VITZ
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- NSP135
- grade
- U
- ENGINE
- 1NRFE
- TRANSMISSION
- CVT
- From
- 12.2010
- No.of Doors
- 5D
- Vehicle Model
- VITZ
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43211-52050 Knuckle, Steering, Rh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
43211-52050 |
from US $161.28 |
||
|
43211K
|
43211K
90109-15001 Bolt (For Rear Axle Carrier)[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU 外径＝１５,ＴＹＰＥ Ａ：イラスト参照 |
90109-15001 |
US $4.32 |
||
|
43211K
|
43211K
90109-15002 Bolt (For Steering Knuckle Rh)[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU 外径＝１３．９,ＴＹＰＥ Ｂ：イラスト参照 |
90109-15002 |
US $3.84 |
||
|
43211K
|
43211K
90109-15003 Bolt (For Steering Knuckle Rh)[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU 外径＝１３．３,ＴＹＰＥ Ｃ：イラスト参照 |
90109-15003 |
US $3.84 |
||
|
43211K
|
43211K
90109-15004 Bolt (For Steering Knuckle Rh)[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU 外径＝１２．４,ＴＹＰＥ Ｄ：イラスト参照 |
90109-15004 |
US $3.84 |
||
|
43211L
|
43211L
90179-15004 Nut (For Steering Knuckle Rh)[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
90179-15004 |
from US $1.44 |
||
|
43212
|
43212
43212-52050 Knuckle, Steering, Lh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
43212-52050 |
from US $161.28 |
||
|
43212D
|
43212D
90109-15001 Bolt (For Rear Axle Carrier)[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU 外径＝１５,ＴＹＰＥ Ａ：イラスト参照 |
90109-15001 |
US $4.32 |
||
|
43212D
|
43212D
90109-15002 Bolt (For Steering Knuckle Rh)[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU 外径＝１３．９,ＴＹＰＥ Ｂ：イラスト参照 |
90109-15002 |
US $3.84 |
||
|
43212D
|
43212D
90109-15003 Bolt (For Steering Knuckle Rh)[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU 外径＝１３．３,ＴＹＰＥ Ｃ：イラスト参照 |
90109-15003 |
US $3.84 |
||
|
43212D
|
43212D
90109-15004 Bolt (For Steering Knuckle Rh)[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU 外径＝１２．４,ＴＹＰＥ Ｄ：イラスト参照 |
90109-15004 |
US $3.84 |
||
|
43212E
|
43212E
90179-15004 Nut (For Steering Knuckle Rh)[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
90179-15004 |
from US $1.44 |
||
|
43330L
|
43330L
90171-12007 Nut, Castle (For Front Lower Ball Joint Setting)[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
90171-12007 |
US $1.76 |
||
|
43340B
|
43340B
90171-12007 Nut, Castle (For Front Lower Ball Joint Setting)[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
90171-12007 |
US $1.76 |
||
|
48068
|
48068
48068-59155 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
48068-59155 |
US $230.40 |
||
|
48068H
|
48068H
90119-14086 Bolt(For Front Suspension Lower Arm No.1 Rh)[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
90119-14086 |
from US $3.71 |
||
|
48068M
|
48068M
90119-14145 Bolt(For Front Suspension Lower Arm No.2 Rh)[12.2010 - 01.2014] NSP135..CBU |
90119-14145 |
US $6.26 |
||
| replacement | |||||
|
48068M
|
48068M
90119-14152 Bolt(For Front Suspension Lower Arm No.2 Rh)[12.2010 - 01.2014] NSP135..CBU |
90119-14152 |
US $6.88 |
||
|
48068M
|
48068M
90119-14152 Bolt(For Front Suspension Lower Arm No.2 Rh)[02.2014 - 04.2014] NSP135..CBU |
90119-14152 |
US $6.88 |
||
|
48069
|
48069
48069-59145 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
48069-59145 |
from US $230.40 |
||
|
48069D
|
48069D
90119-14086 Bolt(For Front Suspension Lower Arm No.1 Rh)[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
90119-14086 |
from US $3.71 |
||
|
48069H
|
48069H
90119-14145 Bolt(For Front Suspension Lower Arm No.2 Rh)[12.2010 - 01.2014] NSP135..CBU |
90119-14145 |
US $6.26 |
||
| replacement | |||||
|
48069H
|
48069H
90119-14152 Bolt(For Front Suspension Lower Arm No.2 Rh)[12.2010 - 01.2014] NSP135..CBU |
90119-14152 |
US $6.88 |
||
|
48069H
|
48069H
90119-14152 Bolt(For Front Suspension Lower Arm No.2 Rh)[02.2014 - 04.2014] NSP135..CBU |
90119-14152 |
US $6.88 |
||
|
9046816022
|
9046816022
90468-16022 CLIP |
90468-16022 |
US $1.44 |
||
