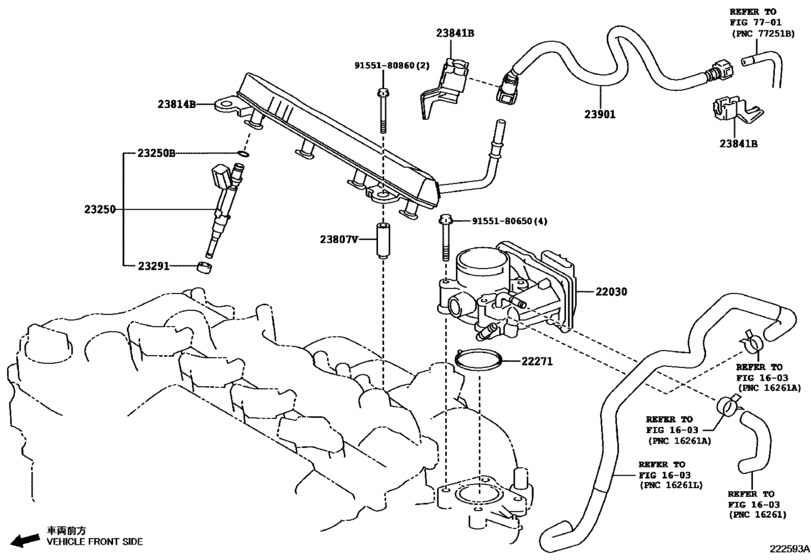

Fuel Injection System ([12.2010 - ] (1012- )1NRFE) Diagram Toyota VITZ
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- NSP135
- grade
- U
- ENGINE
- 1NRFE
- TRANSMISSION
- CVT
- From
- 12.2010
- No.of Doors
- 5D
- Vehicle Model
- VITZ
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22030
|
22030
22030-47010 Body Assy, Throttle W/motorTHROTTLE W/MOTOR [12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
22030-47010 |
US $737.80 |
||
|
22271
|
22271
22271-47010 Gasket, Throttle BodyTHROTTLE BODY [12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
22271-47010 |
US $4.66 |
||
|
23250
|
23250
23209-49225 Injector Assy, Fuel[12.2010 - 04.2012] 1NRFE..NSP13#..CBU |
23209-49225 |
US $224.22 |
||
| replacement | |||||
|
23250
|
23250
23209-49226 Injector Assy, Fuel[12.2010 - 04.2012] 1NRFE..NSP13#..CBU |
23209-49226 |
US $181.44 |
||
|
23250
|
23250
23209-49226 Injector Assy, Fuel[04.2012 - 04.2014] 1NRFE..NSP13#..CBU |
23209-49226 |
US $181.44 |
||
|
23250B
|
23250B
90301-07037 Ring, O(For Fuel Injector)[12.2010 - 04.2014] 1N#..NCP131,NSP13#..CBU |
90301-07037 |
from US $2.24 |
||
|
23291
|
23291
23291-23010 Insulator, Injector Vibration[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
23291-23010 |
from US $2.73 |
||
|
23807V
|
23807V
23891-47010 Spacer, No.1(For Delivery Pipe)NO.1(FOR DELIVERY PIPE) [12.2010 - 02.2013] 1NRFE..NSP13#..CBU |
23891-47010 |
US $5.24 |
||
| replacement | |||||
|
23807V
|
23807V
23891-47030 Spacer, No.1(For Delivery Pipe)[12.2010 - 02.2013] 1NRFE..NSP13#..CBU |
23891-47030 |
US $3.93 |
||
|
23807V
|
23807V
23891-47030 Spacer, No.1(For Delivery Pipe)[02.2013 - 04.2014] 1NRFE..NSP13#..CBU |
23891-47030 |
US $3.93 |
||
|
23814B
|
23814B
23814-47020 Pipe, Fuel DeliveryFUEL DELIVERY [12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
23814-47020 |
US $100.46 |
||
| replacement | |||||
|
23814B
|
23814B
23814-47050 Pipe, Fuel Delivery[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
23814-47050 |
US $94.64 |
||
|
23814B
|
23814B
23814-47050 Pipe, Fuel Delivery[07.2014 - 01.2017] 1NR#..NSP13#..CBU |
23814-47050 |
US $94.64 |
||
|
23841B
|
23841B
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
23841-21050 |
US $3.52 |
||
|
23901
|
23901
23901-47040 Tube Sub-Assy, Fuel[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
23901-47040 |
US $42.52 |
||
|
9155180650
|
9155180650
91551-80650 BOLT FLANGE |
91551-80650 |
US $1.28 |
||
|
9155180860
|
9155180860
91551-80860 Bolt(For Head To Camshaft Bearing Cap) |
91551-80860 |
US $1.60 |
||
