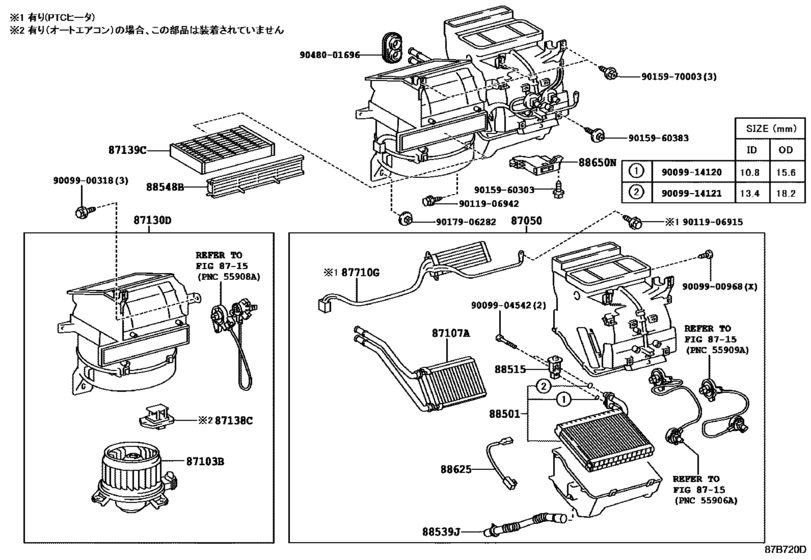

Heating & Air Conditioning - Cooler Unit ([12.2010 - ] ﾏﾆｭｱﾙｴｱｺﾝ (1012- )) Diagram Toyota VITZ
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- NSP135
- grade
- U
- ENGINE
- 1NRFE
- TRANSMISSION
- CVT
- From
- 12.2010
- No.of Doors
- 5D
- Vehicle Model
- VITZ
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87050
|
87050
87050-52141 Radiator Assy, Air Conditioner[12.2010 - 04.2014] NCP131,NSP13#..(RS,U)..CBU |
87050-52141 |
US $854.67 |
||
|
87050
|
87050
87050-52161 Radiator Assy, Air Conditioner[12.2010 - 04.2014] NCP131,NSP13#..(RS,U)..CBU 寒冷地仕様 |
87050-52161 |
US $1,029.39 |
||
|
87103B
|
87103B
87103-52131
Motor Sub-Assy, Blower W/fan
[12.2010 - 01.2011] NCP131,NSP13#..(RS,U)..CBU |
87103-52131 |
— | ||
| replacement | |||||
|
87103B
|
87103B
87103-52132
Motor Sub-Assy, Blower W/fan
[12.2010 - 01.2011] NCP131,NSP13#..(RS,U)..CBU |
87103-52132 |
— | ||
|
87103B
|
87103B
87103-52132
Motor Sub-Assy, Blower W/fan
[01.2011 - 04.2014] NCP131,NSP13#..(RS,U)..CBU |
87103-52132 |
— | ||
|
87107A
|
87107A
87107-52061
Unit Sub-Assy, Heater Radiator
[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
87107-52061 |
— | ||
|
87130D
|
87130D
87130-52061
Blower Assy
[12.2010 - 04.2014] NCP131,NSP13#..(RS,U)..CBU |
87130-52061 |
— | ||
|
87139C
|
87139C
87139-30040 Filter, Clean Air[12.2010 - 04.2012] KSP130,NCP131,NSP13#..CBU 微細塵フィルタ |
87139-30040 |
from US $30.40 |
||
| replacement | |||||
|
87139C
|
87139C
87139-YZZ45 Filter, Clean Air[12.2010 - 04.2012] KSP130,NCP131,NSP13#..CBU 微細塵フィルタ |
87139-YZZ45 |
US $125.66 |
||
|
87139C
|
87139C
87139-50100 Clean Air Filter (Charcoal type)[05.2012 - 04.2014] KSP130,NCP131,NSP13#..CBU 花粉脱臭フィルタ |
87139-50100 |
from US $60.80 |
||
|
87139C
|
87139C
87139-52020 Filter, Clean Air[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU 標準仕様 |
87139-52020 |
from US $30.40 |
||
|
87139C
|
87139C
87139-52040 Filter, Clean Air[04.2014 - 01.2017] KSP130,NCP131,NSP13#..(F,JEWL,U)..CBU 花粉フィルタ |
87139-52040 |
from US $30.40 |
||
|
87710G
|
87710G
87710-52060
Quick Heater Assy
[12.2010 - 04.2014] NCP131..CVT..RS Ｃパッケージ＊（Ｃ）＆寒冷地仕様; KSP130,NCP131,NSP13#..CBU 寒冷地仕様 |
87710-52060 |
— | ||
|
88501
|
88501
88501-52102
Evaporator Sub-Assy, Cooler, No.1
[12.2010 - 11.2011] KSP130,NCP131,NSP13#..CBU |
88501-52102 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-52103 Evaporator Sub-Assy, Cooler, No.1[12.2010 - 11.2011] KSP130,NCP131,NSP13#..CBU |
88501-52103 |
US $444.66 |
||
|
88501
|
88501
88501-52103 Evaporator Sub-Assy, Cooler, No.1[12.2011 - 04.2014] KSP130,NCP131,NSP13#..CBU |
88501-52103 |
US $444.66 |
||
|
88515
|
88515
88515-68010 Valve, Cooler ExpansionCOOLER EXPANSION [12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
88515-68010 |
from US $105.51 |
||
|
88539J
|
88539J
88539-52020
Hose, Drain Cooler
[12.2010 - 01.2011] KSP130,NCP131,NSP13#..CBU |
88539-52020 |
— | ||
| replacements | |||||
|
88539J
|
88539J
88539-52030
Hose, Drain Cooler
[12.2010 - 01.2011] KSP130,NCP131,NSP13#..CBU |
88539-52030 |
— | ||
|
88539J
|
88539J
88539-52040
Hose, Drain Cooler
[12.2010 - 01.2011] KSP130,NCP131,NSP13#..CBU |
88539-52040 |
— | ||
|
88539J
|
88539J
88539-52030
Hose, Drain Cooler
[01.2011 - 04.2014] KSP130,NCP131,NSP13#..CBU |
88539-52030 |
— | ||
|
88548B
|
88548B
88548-52040 Case, Air Filter[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
88548-52040 |
US $14.59 |
||
|
88625
|
88625
88625-26090 Thermistor, Cooler, No.1[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
88625-26090 |
from US $8.04 |
||
| replacement | |||||
|
88625
|
88625
88620-02110 Thermistor, Cooler, No.1COOLER, NO.1 [12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
88620-02110 |
US $10.20 |
||
|
88650N
|
88650N
88650-52710 Amplifier Assy, Air Conditioner[12.2010 - 04.2014] NCP131,NSP13#..(RS,U)..CBU |
88650-52710 |
US $307.51 |
||
|
88650N
|
88650N
88650-52A40
Amplifier Assy, Air Conditioner
[04.2014 - 09.2016] NCP131,NSP13#..(JEWL,U)..CBU |
88650-52A40 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-52A41
Amplifier Assy, Air Conditioner
[04.2014 - 09.2016] NCP131,NSP13#..(JEWL,U)..CBU |
88650-52A41 |
— | ||
|
88650N
|
88650N
88650-52A41
Amplifier Assy, Air Conditioner
[10.2016 - 01.2017] NCP131,NSP13#..(JEWL,U)..CBU |
88650-52A41 |
— | ||
|
9009900318
|
9009900318
90099-00318
New Genuine Part
|
90099-00318 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.88 |
||
|
9009904542
|
9009904542
90099-04542 Bolt(For Cooler Expansion Valve) |
90099-04542 |
from US $1.92 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $2.13 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $2.18 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.70 |
||
|
9011906942
|
9011906942
90119-06942 BOLT WWASHER |
90119-06942 |
from US $0.96 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.38 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
|
9017906282
|
9017906282
90179-06282 New Genuine Part |
90179-06282 |
US $0.67 |
||
|
9048001696
|
9048001696
90480-01696
Grommet, Heater
|
90480-01696 |
— | ||
