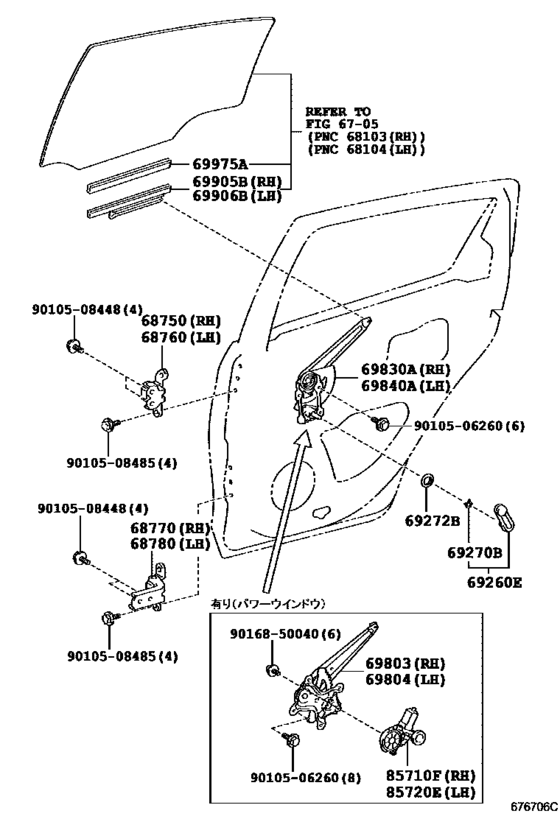

Rear Door Window Regulator & Hinge ([12.2010 - ] (1012- )) Diagram Toyota VITZ
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- NSP135
- grade
- U
- ENGINE
- 1NRFE
- TRANSMISSION
- CVT
- From
- 12.2010
- No.of Doors
- 5D
- Vehicle Model
- VITZ
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68750
|
68750
68750-20121
Hinge Assy, Rear Door, Upper Rh
[12.2010 - 06.2012] KSP130,NCP131,NSP13#..CBU |
68750-20121 |
— | ||
| replacement | |||||
|
68750
|
68750
68750-20122 Hinge Assy, Rear Door, Upper Rh[12.2010 - 06.2012] KSP130,NCP131,NSP13#..CBU |
68750-20122 |
from US $28.12 |
||
|
68750
|
68750
68750-20122 Hinge Assy, Rear Door, Upper Rh[07.2012 - 04.2014] KSP130,NCP131,NSP13#..CBU |
68750-20122 |
from US $28.12 |
||
|
68760
|
68760
68760-20121
Hinge Assy, Rear Door, Upper Lh
[12.2010 - 06.2012] KSP130,NCP131,NSP13#..CBU |
68760-20121 |
— | ||
| replacement | |||||
|
68760
|
68760
68760-20122 Hinge Assy, Rear Door, Upper Lh[12.2010 - 06.2012] KSP130,NCP131,NSP13#..CBU |
68760-20122 |
from US $28.12 |
||
|
68760
|
68760
68760-20122 Hinge Assy, Rear Door, Upper Lh[07.2012 - 04.2014] KSP130,NCP131,NSP13#..CBU |
68760-20122 |
from US $28.12 |
||
|
68770
|
68770
68770-52031 Hinge Assy, Rear Door, Lower Rh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
68770-52031 |
from US $28.12 |
||
|
68780
|
68780
68780-52031 Hinge Assy, Rear Door, Lower Lh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
68780-52031 |
US $28.12 |
||
|
69803
|
69803
69803-52090 Regulator Sub-Assy, Rear Door Window, Rh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
69803-52090 |
US $42.37 |
||
|
69804
|
69804
69804-52100 Regulator Sub-Assy, Rear Door Window, Lh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
69804-52100 |
US $42.37 |
||
|
69905B
|
69905B
69905-52060 Channel Sub-Assy, Rear Door Glass, Rh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
69905-52060 |
from US $6.40 |
||
|
69906B
|
69906B
69906-52060 Channel Sub-Assy, Rear Door Glass, Lh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
69906-52060 |
US $6.40 |
||
|
69975A
|
69975A
69975-52010 Filler, Rear Door Glass Channel[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
69975-52010 |
from US $5.92 |
||
|
85710F
|
85710F
85720-52150 Motor Assy, Power Window Regulator, Rh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
85720-52150 |
US $298.77 |
||
|
85720E
|
85720E
85710-52160 Motor Assy, Power Window Regulator, Lh[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
85710-52160 |
US $220.32 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.25 |
||
|
9010508448
|
9010508448
90105-08448 BOLT FLANGE |
90105-08448 |
from US $0.82 |
||
|
9010508485
|
9010508485
90105-08485 BOLT FLANGE |
90105-08485 |
from US $0.78 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
US $1.12 |
||
