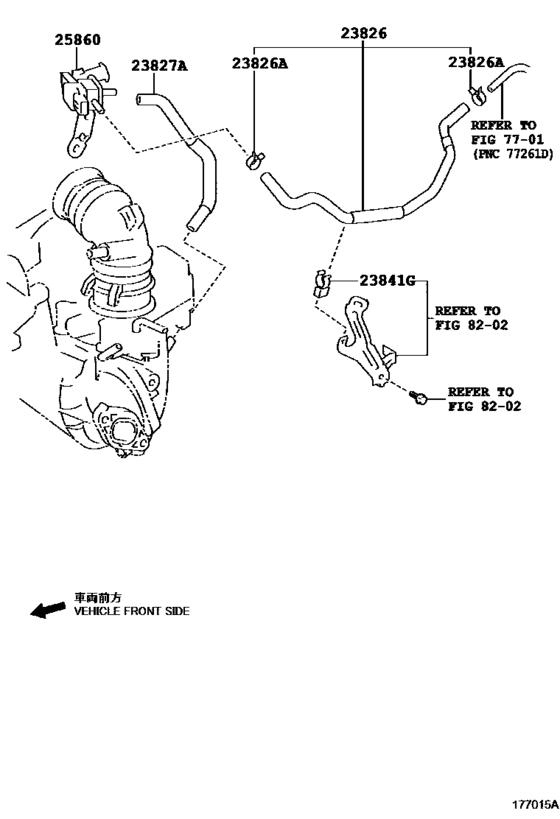

Vacuum Piping ([12.2010 - ] (1012- )1NRFE) Diagram Toyota VITZ
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- NSP135
- grade
- U
- ENGINE
- 1NRFE
- TRANSMISSION
- CVT
- From
- 12.2010
- No.of Doors
- 5D
- Vehicle Model
- VITZ
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23826
|
23826
23826-47030 Hose, Fuel Vapor Feed, No.1FUEL VAPOR FEED, NO.1 [12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
23826-47030 |
US $18.78 |
||
|
23826A
|
23826A
90466-11003 Clamp Or Clip(For Radiator Reserve Tank Hose)[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
90466-11003 |
US $1.60 |
||
| replacement | |||||
|
23826A
|
23826A
90466-A0001 Clip(For Fuel Vapor Feed Hose, No.1)[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
90466-A0001 |
US $3.15 |
||
|
23827A
|
23827A
23827-47030 Hose, Fuel Vapor Feed, No.2FUEL VAPOR FEED, NO.2 [12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
23827-47030 |
US $22.04 |
||
|
23841G
|
23841G
23847-47010 Clamp, Fuel HoseFUEL HOSE [12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
23847-47010 |
US $2.48 |
||
|
25860
|
25860
25860-47020 Valve Assy, Vacuum Switching, No.1VACUUM SWITCHING, NO.1 [12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
25860-47020 |
US $46.88 |
||
