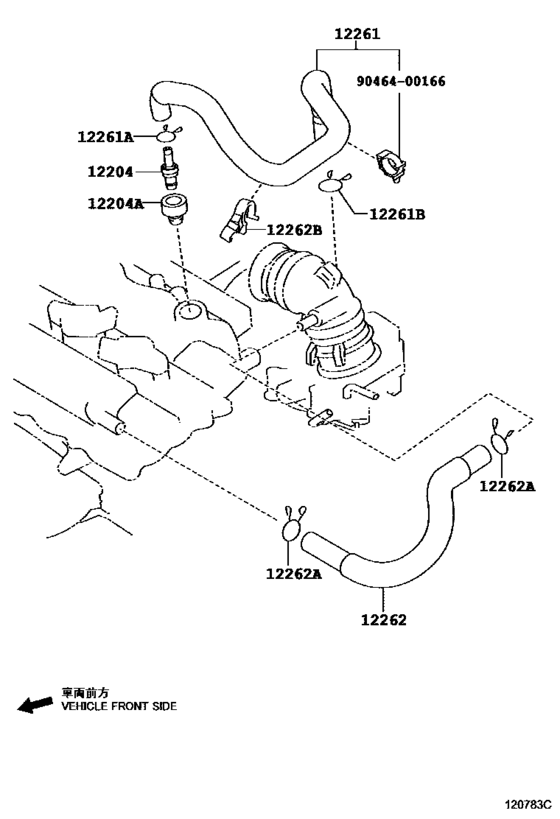

Ventilation Hose ([12.2010 - ] (1012- )1NRFE) Diagram Toyota VITZ
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- NSP135
- grade
- U
- ENGINE
- 1NRFE
- TRANSMISSION
- CVT
- From
- 12.2010
- No.of Doors
- 5D
- Vehicle Model
- VITZ
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12204
|
12204
12204-47010 Valve Sub-Assy, VentilationVENTILATION [12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
12204-47010 |
US $19.61 |
||
|
12204
|
12204
12204-47060 Valve Sub-Assy, Ventilation[07.2014 - 01.2017] 1NRFE..NSP135..CBU |
12204-47060 |
US $12.41 |
||
|
12204A
|
12204A
11249-47020 Grommet(For Ventilation System)[12.2014 - 01.2017] 1NR#..NSP13#..CBU |
11249-47020 |
US $14.08 |
||
|
12204A
|
12204A
90480-18016 Grommet(For Ventilation System)[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
90480-18016 |
US $2.88 |
||
|
12261
|
12261
12261-47010 Hose, VentilationVENTILATION [12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
12261-47010 |
US $17.47 |
||
|
12261A
|
12261A
90467-16035 Clip Or Clamp(For Ventilation Hose)[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
90467-16035 |
from US $0.88 |
||
|
12261B
|
12261B
90467-22010 Clip Or Clamp(For Ventilation Hose)[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
90467-22010 |
from US $1.56 |
||
|
12262
|
12262
12262-47010 Hose, Ventilation, No.2VENTILATION, NO.2 [12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
12262-47010 |
US $12.81 |
||
|
12262A
|
12262A
90467-21004 Clip Or Clamp(For Ventilation Hose)[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
90467-21004 |
from US $1.33 |
||
|
12262B
|
12262B
16581-47020 Clamp(For Ventilation Hose)[12.2010 - 04.2014] 1NRFE..NSP13#..CBU |
16581-47020 |
US $4.51 |
||
|
9046400166
|
9046400166
90464-00166 Clamp, Automatic Transmission Oil Cooler Tube, No.7 |
90464-00166 |
US $2.56 |
