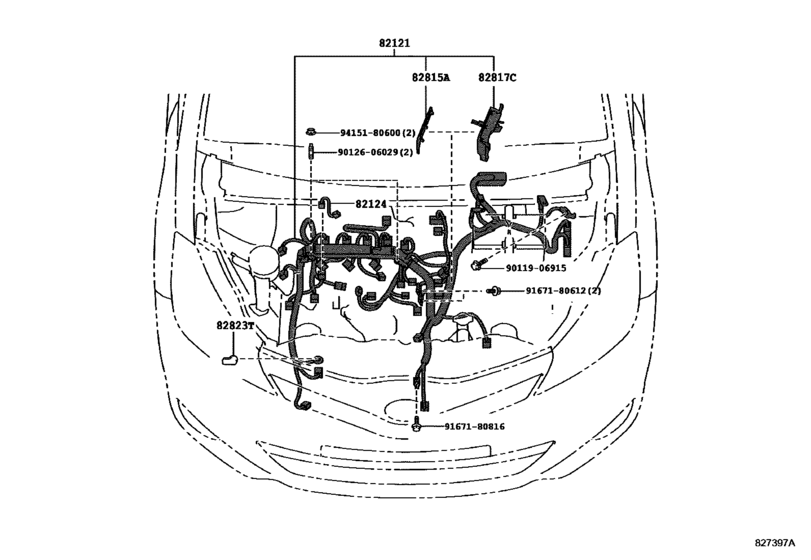

Wiring & Clamp ([12.2010 - ] ｴﾝｼﾞﾝ (1012- )NSP13#..HTWC) Diagram Toyota VITZ
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- NSP135
- grade
- U
- ENGINE
- 1NRFE
- TRANSMISSION
- CVT
- From
- 12.2010
- No.of Doors
- 5D
- Vehicle Model
- VITZ
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-52M00 Wire, Engine[12.2010 - 04.2014] NSP135..CBU |
82121-52M00 |
US $643.55 |
||
|
82121
|
82121
82121-52T40 Wire, Engine[04.2014 - 01.2017] NSP135..CBU |
82121-52T40 |
US $650.83 |
||
|
82124
|
82124
82124-12150 Wire, Engine, No.4ENGINE, NO.4 [12.2010 - 04.2014] NSP13#..CBU |
82124-12150 |
US $23 |
||
|
82815A
|
82815A
82815-52160 Cover, Wiring Harness Protector[12.2010 - 04.2014] NSP13#..CBU |
82815-52160 |
US $5.68 |
||
|
82817C
|
82817C
82817-52870 Protector, Wiring Harness, No.2[12.2010 - 04.2014] NSP13#..CBU |
82817-52870 |
US $10.63 |
||
|
82823T
|
82823T
82823-22050 Cap, Terminal, No.1[12.2010 - 04.2014] KSP130,NCP131,NSP13#..CBU |
82823-22050 |
from US $4.13 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.68 |
||
|
9012606029
|
9012606029
90126-06029 Bolt, Stud(For Vacuum Transmitting Pipe) |
90126-06029 |
from US $0.68 |
||
| replacement | |||||
|
9012606029
|
9012606029
90126-A0014 Bolt, Stud(For Oil Strainer) |
90126-A0014 |
US $1.77 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.68 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.88 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.74 |
||
