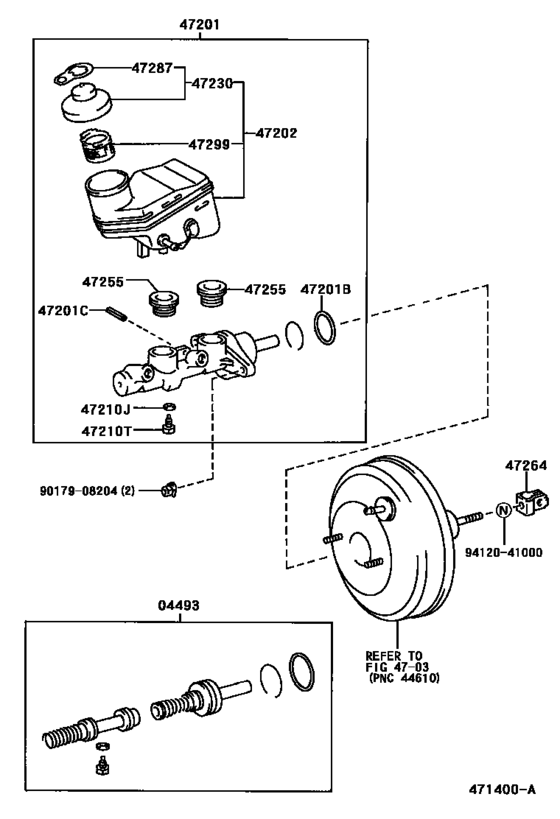

Brake Master Cylinder ([01.1999 - 01.2001] ﾅｼ(VSC) (9901-0101)B) Diagram Toyota VITZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP10
- grade
- B
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- From
- 01.1999
- To
- 01.2005
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- VITZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-52010
Cylinder Kit, Brake Master
[01.1999 - 12.2001] NCP15,SCP10..B,F,U ｱﾘ(ABS) |
04493-52010 |
— | ||
|
04493
|
04493
04493-52030 Cylinder Kit, Brake Master[01.1999 - 01.2001] SCP10..B ﾅｼ(ABS) |
04493-52030 |
US $82.99 |
||
|
04493
|
04493
04493-52040 Cylinder Kit, Brake Master[08.2002 - 12.2002] NCP1#,SCP10 |
04493-52040 |
US $93.24 |
||
|
47201
|
47201
47201-52010 Cylinder Sub-Assy, Brake Master[01.1999 - 08.1999] SCP10..5F S-ｼｷ ﾌﾚｱ:ILLUST NO. 2 OF 2 ｻﾝｼﾖｳ, ｱﾘ(ABS) |
47201-52010 |
US $390.21 |
||
|
47201
|
47201
47201-52011 Cylinder Sub-Assy, Brake Master[08.1999 - 12.2001] SCP10..5F D-ｼｷ ﾌﾚｱ:ILLUST NO. 2 OF 2 ｻﾝｼﾖｳ, ｱﾘ(ABS) |
47201-52011 |
US $390.21 |
||
|
47201
|
47201
47201-52050 Cylinder Sub-Assy, Brake Master[01.1999 - 08.1999] SCP10..5F..B S-ｼｷ ﾌﾚｱ:ILLUST NO. 2 OF 2 ｻﾝｼﾖｳ, ﾅｼ(ABS) |
47201-52050 |
US $390.21 |
||
|
47201
|
47201
47201-52051 Cylinder Sub-Assy, Brake Master[08.1999 - 01.2001] SCP10..5F..B D-ｼｷ ﾌﾚｱ:ILLUST NO. 2 OF 2 ｻﾝｼﾖｳ, ﾅｼ(ABS) |
47201-52051 |
US $323.23 |
||
|
47201
|
47201
47201-52210
Cylinder Sub-Assy, Brake Master
[08.2002 - 12.2002] NCP1#,SCP10..5F..(B,F,RS); NCP1#,SCP10..5F |
47201-52210 |
— | ||
|
47201B
|
47201B
90029-20059 Ring, O(For Brake Master Cylinder)[01.1999 - 12.2001] NCP1#,SCP10 |
90029-20059 |
from US $3.20 |
||
|
47201C
|
47201C
90029-15804 Ring Pin, Brake Master Cylinder[01.1999 - 12.2001] NCP1#,SCP10 |
90029-15804 |
US $4.02 |
||
|
47202
|
47202
47220-52010 Reservoir Sub-Assy, Brake Master Cylinder[01.1999 - 12.2001] NCP15,SCP10..5F..(B,F,U) ｱﾘ(ABS) |
47220-52010 |
US $131.04 |
||
|
47202
|
47202
47220-52050 Reservoir Sub-Assy, Brake Master Cylinder[01.1999 - 01.2001] SCP10..5F..B ﾅｼ(ABS) |
47220-52050 |
US $88.82 |
||
|
47210J
|
47210J
90430-06104 Gasket(For Brake Actuator)[01.1999 - 01.2001] SCP10..B |
90430-06104 |
from US $1.60 |
||
|
47210T
|
47210T
90109-06077 Bolt(For Brake Master Cylinder)[01.1999 - 01.2001] SCP10..B |
90109-06077 |
from US $2.56 |
||
|
47230
|
47230
47230-12040 Cap Assy, Brake Master Cylinder Reservoir Filler[01.1999 - 12.2001] NCP15,SCP10..B,F,U ｱﾘ(ABS) |
47230-12040 |
from US $8.32 |
||
|
47230
|
47230
47230-20140 Cap Assy, Brake Master Cylinder Reservoir Filler[01.1999 - 01.2001] SCP10..B ﾅｼ(ABS) |
47230-20140 |
from US $7.22 |
||
|
47255
|
47255
31417-35010 Grommet[01.1999 - 12.2001] NCP1#,SCP10 |
31417-35010 |
from US $2.08 |
||
|
47264
|
47264
47264-52010 Clevis, Master Cylinder Push Rod[01.1999 - 12.2001] NCP1#,SCP10 |
47264-52010 |
US $4.22 |
||
|
47264
|
47264
47264-52040 Clevis, Master Cylinder Push Rod[08.2002 - 12.2002] NCP1#,SCP10 |
47264-52040 |
US $2.77 |
||
|
47287
|
47287
47287-20010 Label, Brake Fluid Information[01.1999 - 01.2001] SCP10..B |
47287-20010 |
US $2.08 |
||
|
47299
|
47299
47299-20060 Strainer, Brake Master Cylinder Reservoir[01.1999 - 12.2001] NCP1#,SCP10 |
47299-20060 |
US $1.89 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.80 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
