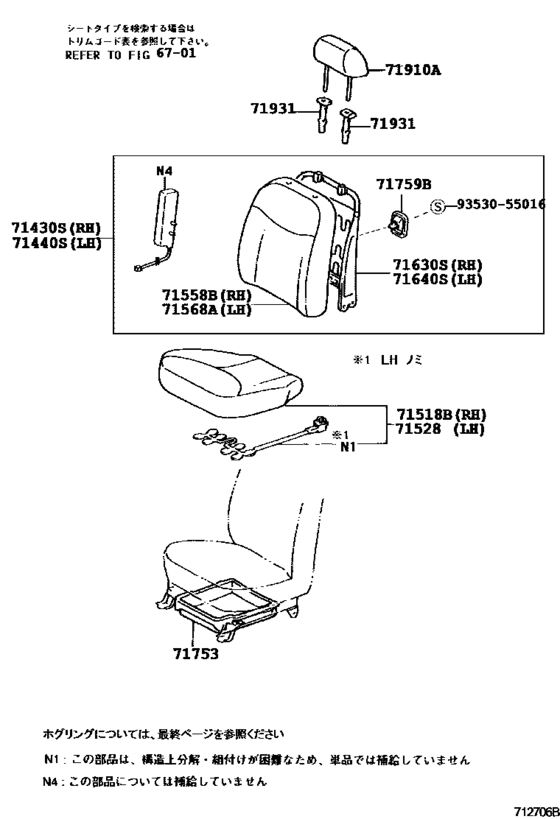

Front Seat & Seat Track ([12.2002 - ] ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) (0212- )NCP15,SCP1#..4FC,5F,CVFC) Diagram Toyota VITZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP10
- grade
- B
- ENGINE
- 1SZFE
- TRANSMISSION
- MTM
- From
- 01.1999
- To
- 01.2005
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- VITZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71430S
|
71430S
71430-52010-B1 Back Assy, Front Seat, Rh(For Separate Type)[01.1999 - 01.2001] NCP15,SCP10..B,F ***,ｼ-ﾄ = TYPE A-*104,SHADOW GRAY,TRIM1# |
71430-52010-B1 |
US $844.48 |
||
|
71430S
|
71430S
71430-52010-H1 Back Assy, Front Seat, Rh(For Separate Type)[01.1999 - 01.2001] NCP15,SCP10..B,F ***,ｼ-ﾄ = TYPE A-*104,FRENCH TORQUOISE,TRIM7# |
71430-52010-H1 |
US $844.48 |
||
|
71430S
|
71430S
71430-52440-B0 Back Assy, Front Seat, Rh(For Separate Type)[01.2001 - 12.2001] NCP15,SCP10..B,F ***,ｼ-ﾄ = TYPE J-*104,SHADOW GRAY,TRIM1# |
71430-52440-B0 |
US $844.48 |
||
|
71430S
|
71430S
71430-52440-H0 Back Assy, Front Seat, Rh(For Separate Type)[01.2001 - 12.2001] NCP15,SCP10..B,F ***,ｼ-ﾄ = TYPE J-*104,FRENCH TURQUOISE,TRIM7# |
71430-52440-H0 |
US $844.48 |
||
|
71440S
|
71440S
71440-52010-B1 Back Assy, Front Seat, Lh(For Separate Type)[01.1999 - 01.2001] NCP15,SCP10..B,F ***,ｼ-ﾄ = TYPE A-*104,SHADOW GRAY,TRIM1# |
71440-52010-B1 |
US $844.48 |
||
|
71440S
|
71440S
71440-52010-H1 Back Assy, Front Seat, Lh(For Separate Type)[01.1999 - 01.2001] NCP15,SCP10..B,F ***,ｼ-ﾄ = TYPE A-*104,FRENCH TORQUOISE,TRIM7# |
71440-52010-H1 |
US $844.48 |
||
|
71440S
|
71440S
71440-52670-B0 Back Assy, Front Seat, Lh(For Separate Type)[01.2001 - 12.2001] NCP15,SCP10..B,F ***,ｼ-ﾄ = TYPE J-*104,SHADOW GRAY,TRIM1# |
71440-52670-B0 |
US $844.48 |
||
|
71440S
|
71440S
71440-52670-H0 Back Assy, Front Seat, Lh(For Separate Type)[01.2001 - 12.2001] NCP15,SCP10..B,F ***,ｼ-ﾄ = TYPE J-*104,FRENCH TURQUOISE,TRIM7# |
71440-52670-H0 |
US $844.48 |
||
|
71518B
|
71518B
71518-52010-B0 Pad, Front Seat Cushion W/cover, Rh[01.1999 - 01.2001] NCP15,SCP10..B,F ｼ-ﾄ = TYPE A-*104,GRAY,TRIM1# |
71518-52010-B0 |
US $388.75 |
||
|
71518B
|
71518B
71518-52010-H0 Pad, Front Seat Cushion W/cover, Rh[01.1999 - 01.2001] NCP15,SCP10..B,F ｼ-ﾄ = TYPE A-*104,TORQUOISE,TRIM7# |
71518-52010-H0 |
US $388.75 |
||
|
71518B
|
71518B
71518-52660-H0 Pad, Front Seat Cushion W/cover, Rh[01.2001 - 12.2001] NCP15,SCP10..B,F ｼ-ﾄ = TYPE J-*104,FRENCH TURQUOISE,TRIM7# |
71518-52660-H0 |
US $388.75 |
||
| replacement | |||||
|
71518B
|
71518B
71518-52670-H0 Pad, Front Seat Cushion W/cover, Rh[01.2001 - 12.2001] NCP15,SCP10..B,F ｼ-ﾄ = TYPE J-*104,FRENCH TURQUOISE,TRIM7# |
71518-52670-H0 |
US $388.75 |
||
|
71518B
|
71518B
71518-52670-B0 Pad, Front Seat Cushion W/cover, Rh[01.2001 - 12.2002] NCP15,SCP10..B,F ｼ-ﾄ = TYPE J-*104,SHADOW GRAY,TRIM1# |
71518-52670-B0 |
US $388.75 |
||
|
71528
|
71528
71528-52010-B0 Pad, Front Seat Cushion W/cover, Lh[01.1999 - 07.1999] SCP10..B,F ｼ-ﾄ = TYPE A-*104,GRAY,TRIM1# |
71528-52010-B0 |
US $473.20 |
||
|
71528
|
71528
71528-52010-H0 Pad, Front Seat Cushion W/cover, Lh[01.1999 - 07.1999] SCP10..B,F ｼ-ﾄ = TYPE A-*104,TORQUOISE,TRIM7# |
71528-52010-H0 |
US $473.20 |
||
|
71528
|
71528
71528-52011-B0 Pad, Front Seat Cushion W/cover, Lh[07.1999 - 01.2001] NCP15,SCP10..B,F ｼ-ﾄ = TYPE A-*104,GRAY,TRIM1# |
71528-52011-B0 |
US $473.20 |
||
|
71528
|
71528
71528-52011-H0 Pad, Front Seat Cushion W/cover, Lh[07.1999 - 01.2001] NCP15,SCP10..B,F ｼ-ﾄ = TYPE A-*104,TORQUOISE,TRIM7# |
71528-52011-H0 |
US $473.20 |
||
|
71528
|
71528
71528-52850-B0 Pad, Front Seat Cushion W/cover, Lh[01.2001 - 12.2002] NCP15,SCP10..B,F ｼ-ﾄ = TYPE J-*104,SHADOW GRAY,TRIM1# |
71528-52850-B0 |
US $474.66 |
||
|
71528
|
71528
71528-52850-H0 Pad, Front Seat Cushion W/cover, Lh[01.2001 - 12.2001] NCP15,SCP10..B,F ｼ-ﾄ = TYPE J-*104,FRENCH TURQUOISE,TRIM7# |
71528-52850-H0 |
US $473.20 |
||
|
71558B
|
71558B
71558-52010-B0 Pad, Front Seat Back W/cover, Rh[01.1999 - 01.2001] NCP15,SCP10..B,F ｼ-ﾄ = TYPE A-*104,GRAY,TRIM1# |
71558-52010-B0 |
US $513.97 |
||
|
71558B
|
71558B
71558-52010-H0 Pad, Front Seat Back W/cover, Rh[01.1999 - 01.2001] NCP15,SCP10..B,F ｼ-ﾄ = TYPE A-*104,TORQUOISE,TRIM7# |
71558-52010-H0 |
US $513.97 |
||
|
71558B
|
71558B
71558-52510-B0 Pad, Front Seat Back W/cover, Rh[01.2001 - 12.2001] NCP15,SCP10..B,F ｼ-ﾄ = TYPE J-*104,SHADOW GRAY,TRIM1# |
71558-52510-B0 |
US $513.97 |
||
|
71558B
|
71558B
71558-52510-H0 Pad, Front Seat Back W/cover, Rh[01.2001 - 12.2001] NCP15,SCP10..B,F ｼ-ﾄ = TYPE J-*104,FRENCH TURQUOISE,TRIM7# |
71558-52510-H0 |
US $513.97 |
||
|
71558B
|
71558B
71558-52820-B1 Pad, Front Seat Back W/cover, Rh[12.2001 - 12.2002] NCP15,SCP10..B,F ｼ-ﾄ = TYPE J-*104,SHADOW GRAY,TRIM1# |
71558-52820-B1 |
US $515.42 |
||
|
71568A
|
71568A
71568-52050-B0 Pad, Front Seat Back W/cover, Lh[01.1999 - 01.2001] NCP15,SCP10..B,F ｼ-ﾄ = TYPE A-*104,GRAY,TRIM1# |
71568-52050-B0 |
US $513.97 |
||
|
71568A
|
71568A
71568-52050-H0 Pad, Front Seat Back W/cover, Lh[01.1999 - 01.2001] NCP15,SCP10..B,F ｼ-ﾄ = TYPE A-*104,TORQUOISE,TRIM7# |
71568-52050-H0 |
US $513.97 |
||
|
71568A
|
71568A
71568-52390-B0 Pad, Front Seat Back W/cover, Lh[01.2001 - 12.2002] NCP15,SCP10..B,F ｼ-ﾄ = TYPE J-*104,SHADOW GRAY,TRIM1# |
71568-52390-B0 |
US $515.42 |
||
|
71568A
|
71568A
71568-52390-H0 Pad, Front Seat Back W/cover, Lh[01.2001 - 12.2001] NCP15,SCP10..B,F ｼ-ﾄ = TYPE J-*104,FRENCH TURQUOISE,TRIM7# |
71568-52390-H0 |
US $513.97 |
||
|
71630S
|
71630S
71630-52010 Spring Assy, Front Seat Back, Rh(For Separate Type)[01.1999 - 12.2001] NCP10,15,SCP10..B,CLA,F,U |
71630-52010 |
US $251.89 |
||
|
71630S
|
71630S
71630-52120 Spring Assy, Front Seat Back, Rh(For Separate Type)[12.2001 - 08.2002] NCP15,SCP10..B,F;NCP15..5D..4FC..(CLA,U); NCP10,15,SCP10..B,CLA,F,U |
71630-52120 |
US $251.89 |
||
|
71630S
|
71630S
71630-52240 Spring Assy, Front Seat Back, Rh(For Separate Type)[08.2002 - 12.2002] NCP10..U;NCP15,SCP10;NCP10..3D..CLA |
71630-52240 |
US $250.43 |
||
|
71630S
|
71630S
71630-52250 Spring Assy, Front Seat Back, Rh(For Separate Type)[08.2002 - 12.2002] NCP10,15,SCP10..B,CLA,F,U ｱﾘ(ﾌﾂｸ) |
71630-52250 |
US $250.43 |
||
|
71640S
|
71640S
71630-52010 Spring Assy, Front Seat Back, Rh(For Separate Type)[12.2001 - 08.2002] NCP15,SCP10..B,F;NCP15..5D..4FC..(CLA,U); NCP10,15,SCP10..B,CLA,F,U |
71630-52010 |
US $251.89 |
||
|
71640S
|
71640S
71630-52020 Spring Assy, Front Seat Back, Lh(For Separate Type)[01.1999 - 12.2001] NCP10,15,SCP10..B,CLA,F,U |
71630-52020 |
US $251.89 |
||
|
71640S
|
71640S
71630-52240 Spring Assy, Front Seat Back, Rh(For Separate Type)[08.2002 - 12.2002] NCP10,15,SCP10..B,CLA,F,U |
71630-52240 |
US $250.43 |
||
|
71759B
|
71759B
71759-13020-B0 Hook, Front Seat Back[12.2001 - 04.2002] NCP10,15,SCP10..B,CLA,F,U DK.GRAY,TRIM12 |
71759-13020-B0 |
US $12.67 |
||
|
71759B
|
71759B
71759-13020-B1 Hook, Front Seat Back[12.2001 - 04.2002] NCP15,SCP10..B,F;NCP15..5D..4FC..(CLA,U) SHADOW GRAY,TRIM1#; NCP10,13..RS SHADOW GRAY,TRIM9#; NCP10,15,SCP10..B,CLA,F,U SHADOW GRAY,TRIM1# |
71759-13020-B1 |
US $12.67 |
||
|
71910A
|
71910A
71910-52010-B0 Headrest Assy, Front Seat[01.1999 - 12.2002] NCP15,SCP10..B,F SHADOW GRAY,TRIM1# |
71910-52010-B0 |
US $189.28 |
||
|
71910A
|
71910A
71910-52010-H0 Headrest Assy, Front Seat[01.1999 - 12.2001] NCP15,SCP10..B,F FRENCH TURQUOISE,TRIM7# |
71910-52010-H0 |
US $189.28 |
||
|
71910A
|
71910A
71910-52011-B4 Headrest Assy, Front Seat[12.2002 - 01.2005] NCP15,SCP10..(4FC,5F)..(B,F) DK.GRAY,TRIM9# |
71910-52011-B4 |
US $189.28 |
||
|
71931
|
71931
71930-47010-B2 Support, Front Seat Headrest[08.2002 - 12.2002] NCP15,SCP10..B,F;NCP15..5D..4FC..U ロック付,DK.GRAY,TRIM1#; NCP10,15,SCP10..B,F,U ロック付,DK.GRAY,TRIM1# |
71930-47010-B2 |
US $13.98 |
||
|
71931
|
71931
71930-52010-B0 Support, Front Seat Headrest[01.1999 - 01.2001] NCP15..5F;NCP15..3D..4FC..U;NCP15..4FC..(CLA,F);NCP10,SCP10..3D..(B,CLA,F);NCP10,S CP10..5D..(B,CLA,F,U) ロック付,SHADOW GRAY,TRIM1# |
71930-52010-B0 |
US $16.60 |
||
|
71931
|
71931
71930-52010-B4 Support, Front Seat Headrest[12.2001 - 08.2002] NCP15,SCP10..B,F;NCP15..5D..4FC..U ロック付,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1#; NCP10..4FC..U;NCP15,SCP10..4FC..F ロック付,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
71930-52010-B4 |
US $16.89 |
||
|
71931
|
71931
71930-52010-G0 Support, Front Seat Headrest[01.1999 - 01.2001] NCP15..4FC..F;NCP15..5F..(F,U);SCP10..3D..(B,F);NCP15..3D..4FC..U;NCP10,SCP10..5D. .(B,F,U) ロック付,AGATE,TRIM7# |
71930-52010-G0 |
US $16.60 |
||
|
71931
|
71931
71931-47010-B2 Support Assy, Front Seat Headrest[08.2002 - 12.2002] NCP15,SCP10..B,F;NCP15..5D..4FC..U ロック無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1#; NCP10..U;NCP15,SCP10..B,F ロック無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
71931-47010-B2 |
US $6.99 |
||
|
71931
|
71931
71931-52010-B0 Support, Front Seat Headrest[01.1999 - 01.2001] NCP15..5F;NCP15..3D..4FC..U;NCP15..4FC..(CLA,F);NCP10,SCP10..3D..(B,CLA,F);NCP10,S CP10..5D..(B,CLA,F,U) ロック無,SHADOW GRAY,TRIM1# |
71931-52010-B0 |
US $9.90 |
||
|
71931
|
71931
71931-52010-B4 Support, Front Seat Headrest[12.2001 - 08.2002] NCP15,SCP10..B,F;NCP15..5D..4FC..U ロック無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1#; NCP10..4FC..U;NCP15,SCP10..4FC..F ロック無,ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM1# |
71931-52010-B4 |
US $9.90 |
||
|
71931
|
71931
71931-52010-G0 Support, Front Seat Headrest[01.1999 - 01.2001] NCP15..4FC..F;NCP15..5F..(F,U);SCP10..3D..(B,F);NCP15..3D..4FC..U;NCP10,SCP10..5D. .(B,F,U) ロック無,AGATE,TRIM7# |
71931-52010-G0 |
US $9.76 |
||
|
9353055016
|
9353055016
93530-55016 New Genuine Part |
93530-55016 |
US $0.61 |
||
