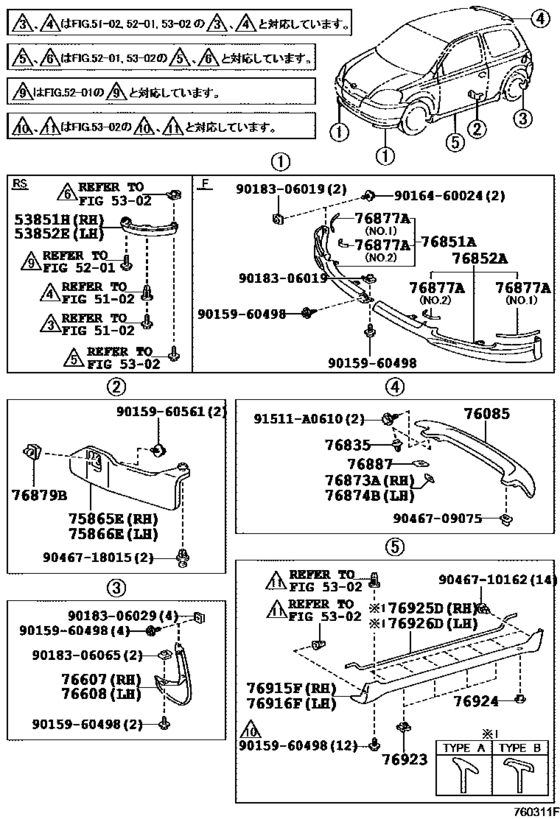

Mudguard & Spoiler ([08.2003 - ] SCP10;ｱﾘ(ﾌﾛﾝﾄ ｽﾎﾟｲﾗ) (0010- )RS ; (0308- )SCP10..5D..4FC..F) Diagram Toyota VITZ
- Year
- 1999 - 2005
- Sales region
- Japan
- Frame
- SCP10
- grade
- F
- ENGINE
- 1SZFE
- TRANSMISSION
- ATM
- From
- 01.1999
- To
- 01.2005
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- VITZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76085
|
76085
76871-52900 Spoiler Sub-Assy, Rear[01.1999 - 12.2001] NCP1#,SCP10..B,F,RS,U |
76871-52900 |
US $195.10 |
||
|
76607
|
76607
76625-52010 Mudguard Sub-Assy, Quarter Panel, Rear Rh[01.1999 - 12.2001] NCP10,15,SCP10..B,CLA,F,U |
76625-52010 |
US $50.77 |
||
|
76607
|
76607
76625-52050 Mudguard Sub-Assy, Quarter Panel, Rear Rh[12.2001 - 12.2002] NCP10,15,SCP10..B,F,U |
76625-52050 |
US $42.22 |
||
|
76608
|
76608
76626-52010 Mudguard Sub-Assy, Quarter Panel, Rear Lh[01.1999 - 12.2001] NCP10,15,SCP10..B,CLA,F,U |
76626-52010 |
US $50.77 |
||
|
76608
|
76608
76626-52050 Mudguard Sub-Assy, Quarter Panel, Rear Lh[12.2001 - 12.2002] NCP10,15,SCP10..B,F,U |
76626-52050 |
US $42.22 |
||
|
76835
|
76835
76835-52010 Retainer, Rear Spoiler Side, No.1[08.2003 -] SCP10..5D..4FC..F |
76835-52010 |
US $5.76 |
||
|
76851A
|
76851A
76851-52080-A0 Cover, Front Spoiler, Rh[08.2003 -] SCP10..5D..4FC..F WHITE,068 |
76851-52080-A0 |
US $205.30 |
||
|
76851A
|
76851A
76851-52080-B0 Cover, Front Spoiler, Rh[08.2003 -] SCP10..5D..4FC..F GRAY ME.,1D2 |
76851-52080-B0 |
US $205.30 |
||
|
76851A
|
76851A
76851-52080-C0 Cover, Front Spoiler, Rh[08.2003 -] SCP10..5D..4FC..F BLACK MC.,209 |
76851-52080-C0 |
US $205.30 |
||
|
76851A
|
76851A
76851-52080-D0 Cover, Front Spoiler, Rh[08.2003 -] SCP10..5D..4FC..F SUPER RED 5,3P0 |
76851-52080-D0 |
US $205.30 |
||
|
76851A
|
76851A
76851-52080-J0 Cover, Front Spoiler, Rh[08.2003 -] SCP10..5D..4FC..F PALE BLUE M.M.,8R0 |
76851-52080-J0 |
US $205.30 |
||
|
76851A
|
76851A
76851-52080-J1 Cover, Front Spoiler, Rh[08.2003 -] SCP10..5D..4FC..F BLUE ME.,8P1 |
76851-52080-J1 |
US $205.30 |
||
|
76852A
|
76852A
76852-52060-A0 Cover, Front Spoiler, Lh[08.2003 -] SCP10..5D..4FC..F WHITE,068 |
76852-52060-A0 |
US $206.13 |
||
|
76852A
|
76852A
76852-52060-B0 Cover, Front Spoiler, Lh[08.2003 -] SCP10..5D..4FC..F GRAY ME.,1D2 |
76852-52060-B0 |
US $205.30 |
||
|
76852A
|
76852A
76852-52060-C0 Cover, Front Spoiler, Lh[08.2003 -] SCP10..5D..4FC..F BLACK MC.,209 |
76852-52060-C0 |
US $205.30 |
||
|
76852A
|
76852A
76852-52060-D0 Cover, Front Spoiler, Lh[08.2003 -] SCP10..5D..4FC..F SUPER RED 5,3P0 |
76852-52060-D0 |
US $205.30 |
||
|
76852A
|
76852A
76852-52060-J0 Cover, Front Spoiler, Lh[08.2003 -] SCP10..5D..4FC..F PALE BLUE M.M.,8R0 |
76852-52060-J0 |
US $205.30 |
||
|
76852A
|
76852A
76852-52060-J1 Cover, Front Spoiler, Lh[08.2003 -] SCP10..5D..4FC..F BLUE ME.,8P1 |
76852-52060-J1 |
US $205.30 |
||
|
76873A
|
76873A
76873-52010 Protector, Rear Spoiler, Rh[01.1999 - 08.2003] NCP1#,SCP1#..B,F,RS,U |
76873-52010 |
US $5.10 |
||
|
76874B
|
76874B
76874-52010 Protector, Rear Spoiler, Lh[01.1999 - 08.2003] NCP1#,SCP1#..B,F,RS,U |
76874-52010 |
US $5.10 |
||
|
76877A
|
76877A
76877-52050-B0 Protector, Front Spoiler[08.2003 -] SCP10..5D..4FC..F GRAY,1D2 ,8R0,ＮＯ．１ |
76877-52050-B0 |
US $7.28 |
||
|
76877A
|
76877A
76877-52050-C0 Protector, Front Spoiler[08.2003 -] SCP10..5D..4FC..F BLACK,209 ,3P0 ,8P1,ＮＯ．１ |
76877-52050-C0 |
US $7.28 |
||
|
76877A
|
76877A
76877-52060-A0 Protector, Front Spoiler[08.2003 - 04.2004] SCP10..5D..4FC..F WHITE,068,ＮＯ．１ |
76877-52060-A0 |
US $7.28 |
||
|
76877A
|
76877A
76877-52070-B0 Protector, Front Spoiler[08.2003 -] SCP10..5D..4FC..F GRAY,1D2 ,8R0,ＮＯ．２ |
76877-52070-B0 |
US $4.95 |
||
|
76877A
|
76877A
76877-52070-C0 Protector, Front Spoiler[08.2003 -] SCP10..5D..4FC..F BLACK,209 ,3P0 ,8P1,ＮＯ．２ |
76877-52070-C0 |
US $4.95 |
||
|
76877A
|
76877A
76877-52080-A0 Protector, Front Spoiler[08.2003 -] SCP10..5D..4FC..F WHITE,068,ＮＯ．２ |
76877-52080-A0 |
US $4.95 |
||
|
76887
|
76887
76887-52010 Seal, Rear Spoiler[01.1999 - 08.2003] NCP1#,SCP1#..B,F,RS,U |
76887-52010 |
US $9.46 |
||
|
76915F
|
76915F
76915-52030-A0 Mudguard, Side, Fr Rh[08.2003 - 04.2004] SCP10..5D..4FC..F WHITE,068 |
76915-52030-A0 |
US $396.03 |
||
|
76915F
|
76915F
76915-52030-B0 Mudguard, Side, Fr Rh[08.2003 - 04.2004] SCP10..5D..4FC..F GRAY ME.,1D2 |
76915-52030-B0 |
US $396.03 |
||
|
76915F
|
76915F
76915-52030-B1 Mudguard, Side, Fr Rh[08.2003 - 04.2004] SCP10..5D..4FC..F SILVER M.M.,1E7 |
76915-52030-B1 |
US $394.58 |
||
| replacement | |||||
|
76915F
|
76915F
76915-52900 Mudguard, Side, Fr RhSIDE, FR RH [08.2003 - 04.2004] SCP10..5D..4FC..F SILVER M.M.,1E7 |
76915-52900 |
US $237.33 |
||
|
76915F
|
76915F
76915-52030-C0 Mudguard, Side, Fr Rh[08.2003 - 04.2004] SCP10..5D..4FC..F BLACK MC.,209 |
76915-52030-C0 |
US $396.03 |
||
|
76915F
|
76915F
76915-52030-D0 Mudguard, Side, Fr Rh[08.2003 - 04.2004] SCP10..5D..4FC..F SUPER RED 5,3P0 |
76915-52030-D0 |
US $396.03 |
||
|
76915F
|
76915F
76915-52030-J1 Mudguard, Side, Fr Rh[08.2003 - 04.2004] SCP10..5D..4FC..F BLUE ME.,8P1 |
76915-52030-J1 |
US $396.03 |
||
|
76915F
|
76915F
76915-52030-J2 Mudguard, Side, Fr Rh[08.2003 - 04.2004] SCP10..5D..4FC..F PALE BLUE M.M.,8R0 |
76915-52030-J2 |
US $394.58 |
||
|
76916F
|
76916F
76916-52030-A0 Mudguard, Side, Fr Lh[08.2003 - 04.2004] SCP10..5D..4FC..F WHITE,068 |
76916-52030-A0 |
US $396.03 |
||
|
76916F
|
76916F
76916-52030-B0 Mudguard, Side, Fr Lh[08.2003 - 04.2004] SCP10..5D..4FC..F GRAY ME.,1D2 |
76916-52030-B0 |
US $396.03 |
||
|
76916F
|
76916F
76916-52030-B1 Mudguard, Side, Fr Lh[08.2003 - 04.2004] SCP10..5D..4FC..F SILVER M.M.,1E7 |
76916-52030-B1 |
US $396.03 |
||
| replacement | |||||
|
76916F
|
76916F
76916-52900 Mudguard, Side, Fr LhSIDE, FR LH [08.2003 - 04.2004] SCP10..5D..4FC..F SILVER M.M.,1E7 |
76916-52900 |
US $237.33 |
||
|
76916F
|
76916F
76916-52030-C0 Mudguard, Side, Fr Lh[08.2003 - 04.2004] SCP10..5D..4FC..F BLACK MC.,209 |
76916-52030-C0 |
US $396.03 |
||
|
76916F
|
76916F
76916-52030-D0 Mudguard, Side, Fr Lh[08.2003 - 04.2004] SCP10..5D..4FC..F SUPER RED 5,3P0 |
76916-52030-D0 |
US $396.03 |
||
|
76916F
|
76916F
76916-52030-J1 Mudguard, Side, Fr Lh[08.2003 - 04.2004] SCP10..5D..4FC..F BLUE ME.,8P1 |
76916-52030-J1 |
US $396.03 |
||
|
76916F
|
76916F
76916-52030-J2 Mudguard, Side, Fr Lh[08.2003 - 04.2004] SCP10..5D..4FC..F PALE BLUE M.M.,8R0 |
76916-52030-J2 |
US $394.58 |
||
|
76923
|
76923
76923-52020 Retainer, Side Mudguard[08.2003 - 04.2004] SCP10..5D..4FC..F |
76923-52020 |
from US $1.83 |
||
|
76924
|
76924
76924-52021 Retainer, Side Mudguard[08.2003 - 04.2004] SCP10..5D..4FC..F |
76924-52021 |
from US $1.15 |
||
|
76925D
|
76925D
76925-52060-B0 Protector, Side Mudguard, Rh[08.2003 - 04.2004] SCP10..5D..4FC..F GRAY,1D2 ,1E7 ,8R0 |
76925-52060-B0 |
US $13.80 |
||
|
76925D
|
76925D
76925-52060-C0 Protector, Side Mudguard, Rh[08.2003 - 04.2004] SCP10..5D..4FC..F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK,209 ,3P0 ,8P1 |
76925-52060-C0 |
US $34.40 |
||
|
76925D
|
76925D
76925-52070-A0
Protector, Side Mudguard, Rh
[08.2003 - 04.2004] SCP10..5D..4FC..F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,WHITE,068 |
76925-52070-A0 |
— | ||
|
76926D
|
76926D
76925-52060-B0 Protector, Side Mudguard, Rh[08.2003 - 04.2004] SCP10..5D..4FC..F GRAY,1D2 ,1E7 ,8R0 |
76925-52060-B0 |
US $13.80 |
||
|
76926D
|
76926D
76925-52060-C0 Protector, Side Mudguard, Rh[08.2003 - 04.2004] SCP10..5D..4FC..F TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,BLACK,209 ,3P0 ,8P1 |
76925-52060-C0 |
US $34.40 |
||
|
76926D
|
76926D
76925-52070-A0
Protector, Side Mudguard, Rh
[08.2003 - 04.2004] SCP10..5D..4FC..F TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,WHITE,068 |
76925-52070-A0 |
— | ||
|
91511A0610
|
91511A0610
91511-A0610
Bolt (For Propeller Shaft Heat Insulator)
|
91511-A0610 |
— | ||
| replacement | |||||
|
91511A0610
|
91511A0610
91531-A0610 Bolt (For Propeller Shaft Heat Insulator) |
91531-A0610 |
US $0.96 |
||
|
9015960498
|
9015960498
90159-60498 SCREW W-WASHER |
90159-60498 |
from US $0.72 |
||
|
9015960561
|
9015960561
90159-60561 SCREW WWASHER |
90159-60561 |
from US $0.72 |
||
|
9016460024
|
9016460024
90164-60024 SCREW, BINDING |
90164-60024 |
from US $0.92 |
||
|
9018306019
|
9018306019
90183-06019 Clip, Outside Moulding, No.1 |
90183-06019 |
from US $0.86 |
||
|
9018306029
|
9018306029
90183-06029 NUT SPRING |
90183-06029 |
US $1.12 |
||
|
9018306065
|
9018306065
90183-06065 NUTSPRG |
90183-06065 |
US $1.76 |
||
|
9046709075
|
9046709075
90467-09075 Clip, Rear Spoiler, No.1 |
90467-09075 |
from US $0.96 |
||
|
9046710162
|
9046710162
90467-10162 Clip, Front Wheel Opening Extensoion |
90467-10162 |
from US $0.94 |
||
|
9046718015
|
9046718015
90467-18015 CLIP |
90467-18015 |
US $2.24 |
||
