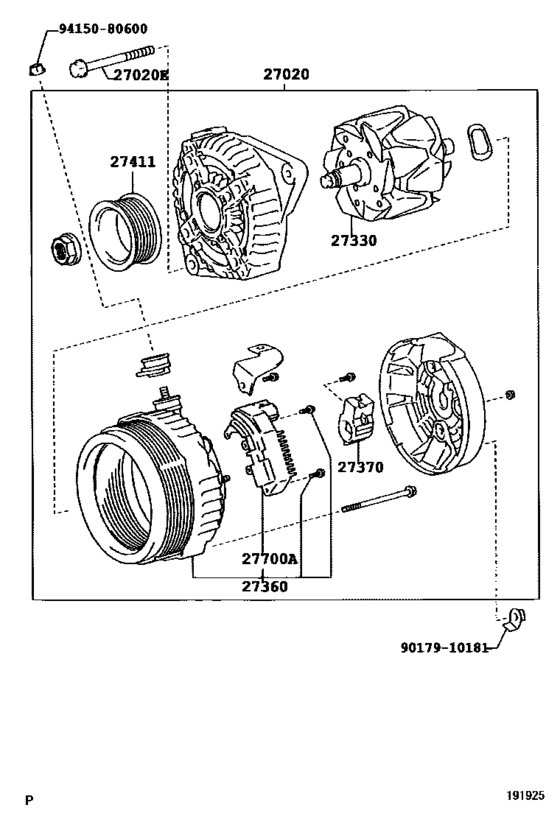

Alternator ([12.2002 - ] 12V 100A (0212- )2SZFE..U) Diagram Toyota VITZ
- Year
- 2002 - 2005
- Sales region
- Japan
- Frame
- SCP13
- grade
- U
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- From
- 12.2002
- To
- 01.2005
- Gear Shift Type
- CVFC
- No.of Doors
- 5D
- Vehicle Model
- VITZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-23110 Alternator Assy[12.2002 -] 2SZFE..SCP13 １２Ｖ ８０Ａ |
27060-23110 |
US $1,659.84 |
||
|
27020
|
27020
27060-23120 Alternator Assy[02.2003 -] 2SZFE..SCP13..U １２Ｖ １００Ａ |
27060-23120 |
US $1,820 |
||
|
27020E
|
27020E
90105-10468 Bolt(For Alternator)[01.1999 - 12.2001] 1SZFE..SCP10 |
90105-10468 |
US $4.95 |
||
|
27330
|
27330
27330-23130
Rotor Assy, Alternator
[12.2002 -] 2SZFE..SCP13..U 12V 100A |
27330-23130 |
— | ||
|
27330
|
27330
27330-62220
Rotor Assy, Alternator
[12.2002 -] 2SZFE..SCP13 12V 80A |
27330-62220 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-30130 Rotor Assy, AlternatorALTERNATOR [12.2002 -] 2SZFE..SCP13 12V 80A |
27330-30130 |
US $246.36 |
||
|
27360
|
27360
27360-23130
Coil Assy, Alternator
[12.2002 -] 2SZFE..SCP13..U |
27360-23130 |
— | ||
|
27370
|
27370
27370-23120 Holder Assy, Alternator Brush[12.2002 -] 2SZFE..SCP13 12V 80A |
27370-23120 |
from US $15.54 |
||
|
27370
|
27370
27370-58460 Holder Assy, Alternator Brush[12.2002 -] 2SZFE..SCP13..U 12V 100A |
27370-58460 |
from US $16.25 |
||
|
27411
|
27411
27411-23130
Pulley, Alternator
[12.2002 -] 2SZFE..SCP13..U 12V 100A |
27411-23130 |
— | ||
|
27411
|
27411
27411-70200
Pulley, Alternator
[12.2002 -] 1SZFE,2SZFE..SCP1#..4HC,CVFC 12V 80A; 1SZFE..SCP10..4FC,5F 12V 70A |
27411-70200 |
— | ||
|
27700A
|
27700A
27700-23040 Regulator Assy, Generator[12.2002 -] 2SZFE..SCP13 12V 80A |
27700-23040 |
US $218.40 |
||
|
27700A
|
27700A
27700-23050 Regulator Assy, Generator[02.2003 -] 2SZFE..SCP13..U 12V 100A |
27700-23050 |
US $264.99 |
||
|
9017910181
|
9017910181
90179-10181 New Genuine Part |
90179-10181 |
US $2.56 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.72 |
||
