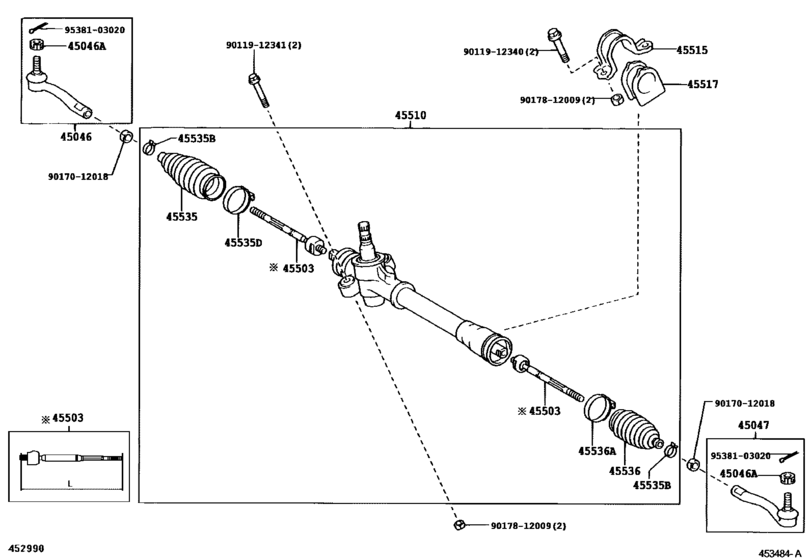

Front Steering Gear & Link ([12.2002 - ] ｱﾘ(ﾃﾞﾝﾄﾞｳｼｷ ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) (0212- )SCP13) Diagram Toyota VITZ
- Year
- 2002 - 2005
- Sales region
- Japan
- Frame
- SCP13
- grade
- CLA
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- From
- 12.2002
- To
- 01.2005
- Gear Shift Type
- CVFC
- No.of Doors
- 5D
- Vehicle Model
- VITZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-59045 End Sub-Assy, Tie Rod, Rh[12.2002 - 01.2005] SCP13 |
45046-59045 |
US $56.09 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[12.2002 -] NCP1#,SCP1# |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45047-59035 End Sub-Assy, Tie Rod, Lh[12.2002 - 01.2005] SCP13 |
45047-59035 |
US $57.66 |
||
|
45503
|
45503
45503-59045 End Sub-Assy, Steering Rack[12.2002 - 01.2005] NCP10,SCP10 ｲﾗｽﾄ ｻﾝｼﾖｳ,長さ＝２５６; NCP15,SCP13 ｲﾗｽﾄ ｻﾝｼﾖｳ,長さ＝２５６ |
45503-59045 |
from US $85.84 |
||
|
45510
|
45510
45510-52090
Gear Assy, Steering
[12.2002 -] SCP13 |
45510-52090 |
— | ||
|
45510
|
45510
45510-52100
Gear Assy, Steering
[12.2002 -] SCP13 ｱﾘ(175/65R14) |
45510-52100 |
— | ||
|
45515
|
45515
45515-52010 Bracket, Steering Rack Housing, No.2[12.2002 -] NCP10,13,SCP1# |
45515-52010 |
US $9.09 |
||
|
45517
|
45517
45517-52010 Grommet, Steering Rack Housing, No.2[12.2002 -] SCP10..4HC;NCP10,13,SCP13; SCP10..4FC,5F ｱﾘ(ﾕｱﾂｼｷ ﾊﾟﾜ-ｽﾃｱﾘﾝｸﾞ) |
45517-52010 |
from US $20.52 |
||
|
45535
|
45535
45535-52010 Boot, Steering Rack, No.1[12.2002 -] NCP15,SCP13 |
45535-52010 |
from US $11.49 |
||
|
45535B
|
45535B
90467-17021 Clamp Or Clip, Hose(For Water By-Pass Hose)[12.2002 -] NCP15,SCP13 |
90467-17021 |
US $1.92 |
||
|
45535D
|
45535D
45538-52010 Clamp(For Steering Rack Boot No.1)[12.2002 - 01.2005] SCP13 |
45538-52010 |
US $3.52 |
||
|
45536
|
45536
45535-52010 Boot, Steering Rack, No.1[12.2002 -] NCP15,SCP13 |
45535-52010 |
from US $11.49 |
||
|
45536A
|
45536A
45538-52010 Clamp(For Steering Rack Boot No.1)[12.2002 - 01.2005] SCP13 |
45538-52010 |
US $3.52 |
||
|
9011912340
|
9011912340
90119-12340 BOLT WWASHER |
90119-12340 |
from US $3.84 |
||
|
9011912341
|
9011912341
90119-12341 New Genuine Part |
90119-12341 |
US $5.07 |
||
|
9017012018
|
9017012018
90170-12018 Nut (For Propeller Shaft) |
90170-12018 |
from US $1.28 |
||
|
9017812009
|
9017812009
90178-12009 Nut(For Suspension Lower Arm Shaft) |
90178-12009 |
US $1.92 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $1.44 |
