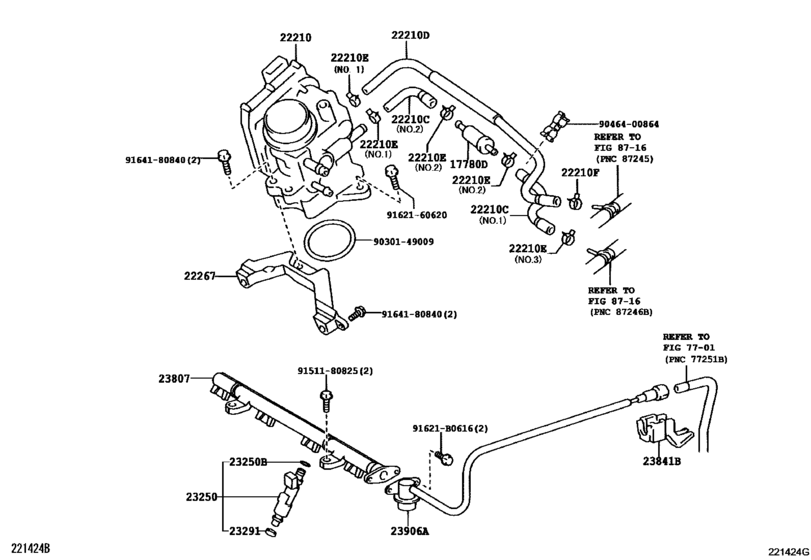

Fuel Injection System ([12.2002 - ] (0212- )2SZFE) Diagram Toyota VITZ
- Year
- 2002 - 2005
- Sales region
- Japan
- Frame
- SCP13
- grade
- CLA
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- From
- 12.2002
- To
- 01.2005
- Gear Shift Type
- CVFC
- No.of Doors
- 5D
- Vehicle Model
- VITZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17780D
|
17780D
17780-23010 Valve Assy, Thermostat[12.2002 -] 2SZFE..SCP13 |
17780-23010 |
US $45.30 |
||
|
22210
|
22210
22030-23010 Body Assy, Throttle[12.2002 -] 2SZFE..SCP13 |
22030-23010 |
US $939.12 |
||
|
22210C
|
22210C
16261-23040 Hose, Water By-Pass, No.1[12.2002 -] 2SZFE..SCP13 ＮＯ．２ |
16261-23040 |
US $9.28 |
||
|
22210C
|
22210C
16261-23050 Hose, Water By-Pass, No.1[12.2002 -] 2SZFE..SCP13 ＮＯ．１ |
16261-23050 |
US $7.72 |
||
|
22210D
|
22210D
16264-23040 Hose, Water By-Pass, No.2[12.2002 -] 2SZFE..SCP13 |
16264-23040 |
US $7.72 |
||
|
22210E
|
22210E
90466-10002 Clamp Or Clip, Hose(For Water By-Pass Hose, No.1)[12.2002 -] 2SZFE..SCP13 ＮＯ．１ |
90466-10002 |
US $2.08 |
||
|
22210E
|
22210E
90466-12001 Clamp Or Clip, Hose(For Water By-Pass Hose, No.1)[12.2002 -] 2SZFE..SCP13 ＮＯ．３; 1SZFE..SCP10 ＮＯ．２ |
90466-12001 |
US $1.92 |
||
|
22210E
|
22210E
90467-12062 Clamp Or Clip, Hose(For Water By-Pass Hose, No.1)[12.2002 -] 2SZFE..SCP13 ＮＯ．２ |
90467-12062 |
US $1.44 |
||
|
22210F
|
22210F
90466-12001 Clamp Or Clip, Hose(For Water By-Pass Hose, No.1)[12.2002 -] 2SZFE..SCP13; 1SZFE..SCP10 ＮＯ．２ |
90466-12001 |
US $1.92 |
||
|
22267
|
22267
22267-23020 Bracket, Throttle Body[12.2002 - 01.2005] 2SZFE..SCP13 |
22267-23020 |
US $38.44 |
||
|
23250
|
23250
23209-29015 Injector Assy, Fuel[12.2002 -] 1SZFE,2SZFE..SCP1# |
23209-29015 |
US $281.40 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[12.2002 -] 1NZFE,2NZFE..NCP1#; 1SZFE,2SZFE..SCP1# |
90301-07024 |
from US $2.91 |
||
|
23291
|
23291
23291-23010 Insulator, Injector Vibration[12.2002 -] 1SZFE,2SZFE..SCP1# |
23291-23010 |
from US $2.98 |
||
|
23807
|
23807
23807-23040 Pipe Sub-Assy, Fuel Delivery[12.2002 - 10.2003] 2SZFE..SCP13 |
23807-23040 |
US $77.17 |
||
| replacement | |||||
|
23807
|
23807
23807-23041 Pipe Sub-Assy, Fuel Delivery[12.2002 - 10.2003] 2SZFE..SCP13 |
23807-23041 |
US $63.77 |
||
|
23807
|
23807
23807-23041 Pipe Sub-Assy, Fuel Delivery[10.2003 -] 2SZFE..SCP13 |
23807-23041 |
US $63.77 |
||
|
23841B
|
23841B
23841-28010
Clamp, Fuel Pipe, No.1(For Efi)
[12.2002 -] 1NZFE,2NZFE..NCP1#; 1SZFE,2SZFE..SCP1# |
23841-28010 |
— | ||
| replacement | |||||
|
23841B
|
23841B
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[12.2002 -] 1NZFE,2NZFE..NCP1#; 1SZFE,2SZFE..SCP1# |
23841-21050 |
US $3.52 |
||
|
23906A
|
23906A
23901-23020 Hose Sub-Assy, Fuel[12.2002 -] 2SZFE..SCP13 |
23901-23020 |
US $135.41 |
||
|
91621B0616
|
91621B0616
91621-B0616 Bolt |
91621-B0616 |
from US $0.94 |
||
|
9030149009
|
9030149009
90301-49009 RING O |
90301-49009 |
from US $4.08 |
||
|
9046400864
|
9046400864
90464-00864 New Genuine Part |
90464-00864 |
US $2.04 |
||
|
9151180825
|
9151180825
91511-80825 BOLTFLANGE |
91511-80825 |
US $1.60 |
||
|
9162160620
|
9162160620
91621-60620 Bolt, W/washer(For Repair Actuator Set) |
91621-60620 |
US $0.44 |
||
|
9164180840
|
9164180840
91641-80840 BOLTWWASHER |
91641-80840 |
from US $0.96 |
||
