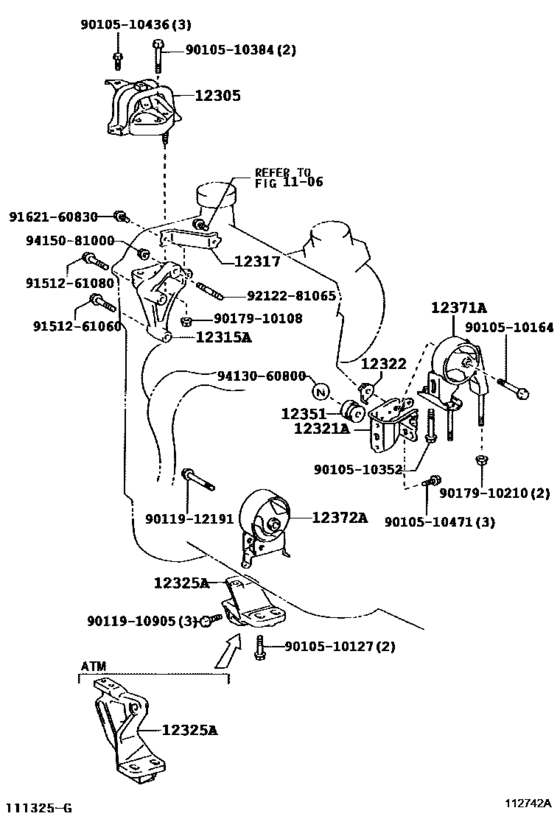

Mounting ([12.2002 - ] (0212- )2SZFE) Diagram Toyota VITZ
- Year
- 2002 - 2005
- Sales region
- Japan
- Frame
- SCP13
- grade
- CLA
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- From
- 12.2002
- To
- 01.2005
- Gear Shift Type
- CVFC
- No.of Doors
- 5D
- Vehicle Model
- VITZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12305
|
12305
12305-23040
Insulator Sub-Assy, Engine Mounting, Rh
[12.2002 -] 2SZFE..SCP13 |
12305-23040 |
— | ||
|
12315A
|
12315A
12315-23030 Bracket, Engine Mounting, Rh(For Transverse Engine)[12.2002 -] 2SZFE..SCP13 |
12315-23030 |
US $74.26 |
||
|
12317
|
12317
12317-23020 Stay, Engine Mounting, Rh[12.2002 -] 2SZFE..SCP13 |
12317-23020 |
US $13.69 |
||
|
12321A
|
12321A
12321-23050 Bracket, Engine Mounting, Rear(For Transverse Engine)[12.2002 -] 2SZFE..SCP13 |
12321-23050 |
US $31.01 |
||
|
12322
|
12322
12322-23020 Bracket, Engine Mounting, Rear No.2[12.2002 -] 1NZFE,2NZFE..NCP10,13; 1SZFE,2SZFE..SCP1# |
12322-23020 |
US $7.28 |
||
|
12325A
|
12325A
12325-23050 Bracket, Engine Mounting, Lh(For Transverse Engine)[12.2002 -] 2SZFE..SCP13 |
12325-23050 |
US $55.47 |
||
|
12351
|
12351
12351-23040 Damper, Engine Mounting[12.2002 -] 2SZFE..SCP13 |
12351-23040 |
US $25.68 |
||
|
12371A
|
12371A
12371-23061 Insulator, Engine Mounting, Rear[12.2002 -] 2SZFE..SCP13 |
12371-23061 |
US $122.30 |
||
|
12372A
|
12372A
12372-23050 Insulator, Engine Mounting, Lh(For Transverse Engine)[12.2002 -] 2SZFE..SCP13; 1NZFE..NCP13..4FC |
12372-23050 |
US $90.28 |
||
|
9010510127
|
9010510127
90105-10127 New Genuine Part |
90105-10127 |
US $1.49 |
||
|
9010510164
|
9010510164
90105-10164 New Genuine Part |
90105-10164 |
US $3.32 |
||
|
9010510352
|
9010510352
90105-10352 New Genuine Part |
90105-10352 |
US $4.96 |
||
|
9010510384
|
9010510384
90105-10384 BOLT WASHER BASED |
90105-10384 |
US $3.52 |
||
|
9010510436
|
9010510436
90105-10436 BOLT WASHER BASED |
90105-10436 |
US $1.76 |
||
|
9010510471
|
9010510471
90105-10471 New Genuine Part |
90105-10471 |
US $2.48 |
||
|
9011910905
|
9011910905
90119-10905 New Genuine Part |
90119-10905 |
US $3.52 |
||
|
9011912191
|
9011912191
90119-12191 New Genuine Part |
90119-12191 |
US $6.64 |
||
|
9017910108
|
9017910108
90179-10108 NUT |
90179-10108 |
US $2.40 |
||
|
9017910210
|
9017910210
90179-10210 NUT |
90179-10210 |
from US $1.01 |
||
|
9151261060
|
9151261060
91512-61060 Bolt(For Transaxle Case & Engine Setting) |
91512-61060 |
US $3.52 |
||
|
9151261080
|
9151261080
91512-61080 Bolt |
91512-61080 |
US $4.51 |
||
|
9162160830
|
9162160830
91621-60830 New Genuine Part |
91621-60830 |
US $3.06 |
||
|
9212281065
|
9212281065
92122-81065 New Genuine Part |
92122-81065 |
US $3.35 |
||
|
9413060800
|
9413060800
94130-60800 Nut(For Clutch Pedal Stopper) |
94130-60800 |
from US $0.72 |
||
| replacement | |||||
|
9413060800
|
9413060800
90170-A0003 New Genuine Part |
90170-A0003 |
US $2.22 |
||
|
9415081000
|
9415081000
94150-81000 NUT FLANGE |
94150-81000 |
US $1.60 |
||
