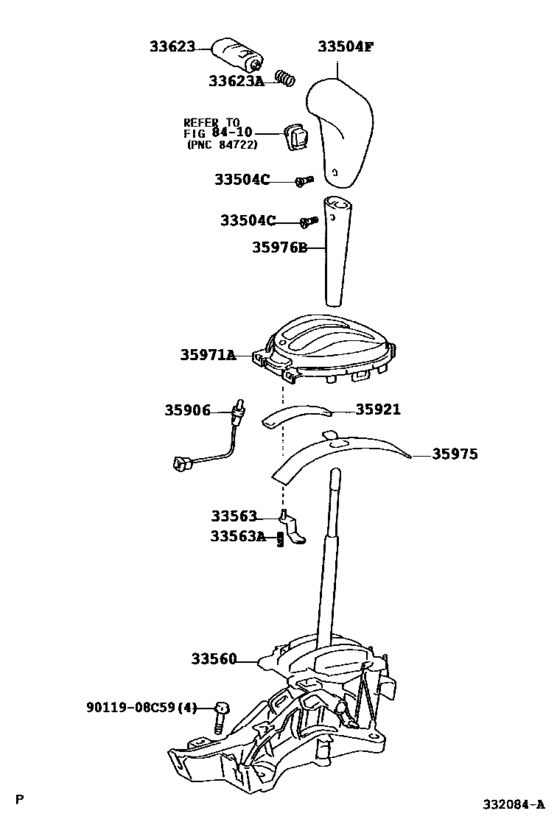

Shift Lever & Retainer ([12.2002 - ] (0212- )SCP13) Diagram Toyota VITZ
- Year
- 2002 - 2005
- Sales region
- Japan
- Frame
- SCP13
- grade
- CLA
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- From
- 12.2002
- To
- 01.2005
- Gear Shift Type
- CVFC
- No.of Doors
- 5D
- Vehicle Model
- VITZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504C
|
33504C
90159-40221 Screw (For Shift Lever Knob Setting)[12.2002 -] NCP1#,SCP1#..4FC,CVFC |
90159-40221 |
from US $1.05 |
||
|
33504F
|
33504F
33542-52010-B4 Knob Sub-Assy, Shift Lever[12.2002 - 01.2005] SCP13..U DK.GRAY,TRIM0#,96,98; NCP15..CLA,U;NCP15,SCP10..3D..4FC..F;NCP10,13,SCP1#..ATM..(B,CLA,RS) DK.GRAY,TRIM9# |
33542-52010-B4 |
US $76.35 |
||
|
33560
|
33560
33560-52140 Unit Assy, Shift Lock Control[12.2002 -] SCP13 |
33560-52140 |
US $330.51 |
||
|
33563
|
33563
33563-52030 Button, Shift Lock Release[12.2002 -] NCP1#,SCP1#..4FC,CVFC |
33563-52030 |
US $2.48 |
||
|
33563A
|
33563A
90501-05055 Spring, Compression (For Shift Lock Release Button)[12.2002 -] NCP1#,SCP1#..4FC,CVFC |
90501-05055 |
US $1.16 |
||
|
33623
|
33623
33623-52040-B1
Button, Shift Lever Knob
[12.2002 - 01.2005] NCP15..5D..4FC..F;SCP1#..5D..(4FC,CVFC)..(F,U) ｱﾘ(ﾉﾌﾞ=ﾒﾂｷ),DK.GRAY,TRIM0#,96,98; NCP10,13..4FC ｱﾘ(ﾉﾌﾞ=ﾒﾂｷ),DK.GRAY,TRIM9#; SCP13..CLA;NCP15..CLA,U ｱﾘ(ﾉﾌﾞ=ﾒﾂｷ),DK.GRAY,TRIM9# |
33623-52040-B1 |
— | ||
|
33623A
|
33623A
90501-06082 Spring, Compression (For Shift Lever Knob Button)[12.2002 -] NCP1#,SCP1#..4FC,CVFC |
90501-06082 |
US $0.87 |
||
|
35906
|
35906
35906-52010 Wire Sub-Assy, Indicator Lamp[12.2002 -] NCP1#,SCP1#..4FC,CVFC |
35906-52010 |
US $10.63 |
||
|
35921
|
35921
35921-52040 Plate, Control Position Indicator[12.2002 -] SCP13 |
35921-52040 |
US $16.60 |
||
|
35971A
|
35971A
35971-52180 Housing, Position Indicator, Upper[12.2002 -] NCP15,SCP13..CLA |
35971-52180 |
US $20.09 |
||
|
35975
|
35975
35975-52070 Cover, Slide (For Position Indicator)[12.2002 -] SCP13 |
35975-52070 |
US $9.61 |
||
|
35976B
|
35976B
35976-52010-B4 Cover, Shift Lever Knob (For Floor Shift)[12.2002 - 01.2005] SCP13..U DK.GRAY,TRIM0#,96,98; NCP15..CLA,U;NCP15,SCP10..3D..4FC..F;NCP10,13,SCP1#..ATM..(B,CLA,RS) DK.GRAY,TRIM9# |
35976-52010-B4 |
US $62.38 |
||
|
9011908C59
|
9011908C59
90119-08C59 New Genuine Part |
90119-08C59 |
US $1.28 |
