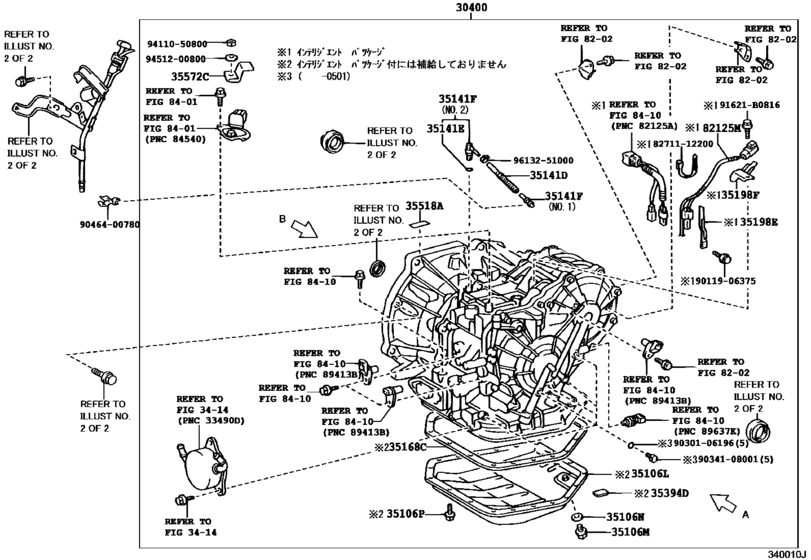

Transaxle Assy(Cvt) ([12.2002 - ] K210 (0212- )SCP13) Diagram Toyota VITZ
- Year
- 2002 - 2005
- Sales region
- Japan
- Frame
- SCP13
- grade
- CLA
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- From
- 12.2002
- To
- 01.2005
- Gear Shift Type
- CVFC
- No.of Doors
- 5D
- Vehicle Model
- VITZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30400
|
30400
30400-52010 Transaxle Assy, Continuously Variable[12.2002 - 01.2005] SCP13 Ｋ２１０ |
30400-52010 |
US $6,799.52 |
||
|
35106L
|
35106L
35106-52050 Pan Sub-Assy, Transaxle Oil(Cvt)[12.2002 -] SCP13 |
35106-52050 |
US $66.73 |
||
|
35106M
|
35106M
90341-10011 Drain Plug (No Type)[12.2002 -] SCP13 |
90341-10011 |
from US $1.60 |
||
|
35106N
|
35106N
35178-30010 Drain Plug Gasket[12.2002 -] SCP13 |
35178-30010 |
from US $3.04 |
||
|
35106P
|
35106P
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[12.2002 -] SCP13 |
90119-06173 |
from US $0.82 |
||
|
35141D
|
35141D
90447-11053 Hose(For Breather Plug)[12.2002 -] SCP13 |
90447-11053 |
US $10.48 |
||
|
35141E
|
35141E
90301-08015 Ring, O (For Breather Plug)[12.2002 -] SCP13 |
90301-08015 |
US $2.24 |
||
|
35141F
|
35141F
90930-03149 Plug Sub-Assy, Breather(For Transmission)[12.2002 -] SCP13 ＮＯ．１ |
90930-03149 |
from US $3.52 |
||
|
35141F
|
35141F
90930-03156 Plug, Breather, No.1 (Atm)[12.2002 -] SCP13 ＮＯ．２ |
90930-03156 |
US $3.67 |
||
|
35168C
|
35168C
35168-52040 Gasket, Transaxle Oil Pan(Cvt)[12.2002 -] SCP13 |
35168-52040 |
US $21.58 |
||
|
35394D
|
35394D
35394-30011 Magnet, Oil Cleaner (For Transmission)[12.2002 - 07.2004] SCP13 |
35394-30011 |
from US $5.76 |
||
|
35394D
|
35394D
35394-48010 Magnet, Oil Cleaner (For Transmission)[07.2004 -] SCP13 |
35394-48010 |
from US $4.48 |
||
|
35518A
|
35518A
35518-63010 Label, Automatic Transaxle Information, No.2[12.2002 -] SCP13 |
35518-63010 |
US $2.33 |
||
|
35572C
|
35572C
35572-52060 Lever, Transmission Control Shaft[12.2002 - 01.2005] SCP13 |
35572-52060 |
US $13.10 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.90 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.66 |
||
|
9011906375
|
9011906375
90119-06375 Bolt (For Transmission Housing & Case Setting) |
90119-06375 |
US $1.12 |
||
|
9030106196
|
9030106196
90301-06196 O Ring, Transaxle Case, No.1 |
90301-06196 |
from US $2.72 |
||
|
9034108001
|
9034108001
90341-08001 Plug, Transaxle Case, No.1 |
90341-08001 |
from US $1.64 |
||
|
9046400780
|
9046400780
90464-00780 New Genuine Part |
90464-00780 |
US $2.04 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.28 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
|
9613251000
|
9613251000
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.62 |
