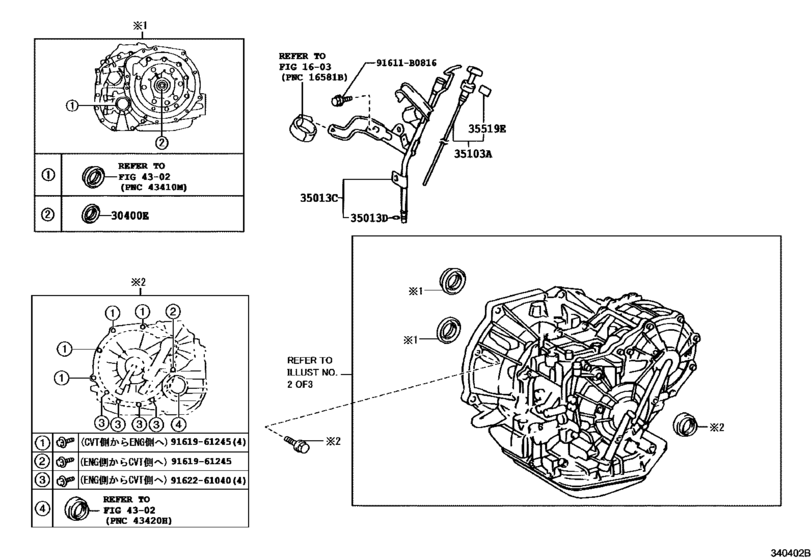

Transaxle Assy(Cvt) ([12.2002 - ] K210 (0212- )SCP13) Diagram Toyota VITZ
- Year
- 2002 - 2005
- Sales region
- Japan
- Frame
- SCP13
- grade
- CLA
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- From
- 12.2002
- To
- 01.2005
- Gear Shift Type
- CVFC
- No.of Doors
- 5D
- Vehicle Model
- VITZ
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30400E
|
30400E
90311-45027 Seal, Type T Oil(For Cvt Oil Pump)[08.2003 - 01.2005] SCP13 |
90311-45027 |
from US $7.52 |
||
|
35013C
|
35013C
35013-52100 Tube Sub-Assy, Transmission Oil Filler[12.2002 -] SCP13 |
35013-52100 |
US $44.12 |
||
|
35013D
|
35013D
90301-09173 Ring, O(For Transmission Oil Filler Tube)[12.2002 -] SCP13 |
90301-09173 |
from US $2.24 |
||
|
35103A
|
35103A
35103-52120 Gage Sub-Assy, Transmission Oil Level[12.2002 -] SCP13 |
35103-52120 |
US $15.58 |
||
|
35519E
|
35519E
35519-63010 Label, Automatic Trans Information[12.2002 -] SCP13 |
35519-63010 |
US $4.51 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9161961245
|
9161961245
91619-61245 Bolt(For Transaxle & Engine Setting) |
91619-61245 |
from US $1.92 |
||
|
9162261040
|
9162261040
91622-61040 Bolt(For Transaxle & Engine Setting) |
91622-61040 |
US $1.92 |
