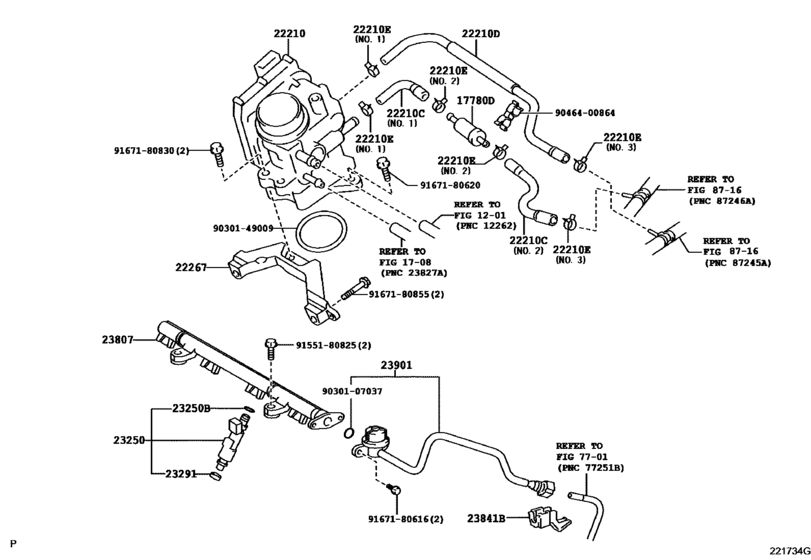

Fuel Injection System ([01.2005 - ] (0501- )2SZFE) Diagram Toyota VITZ
- Year
- 2007 - 2010
- Sales region
- Japan
- Frame
- SCP90
- grade
- RS
- ENGINE
- 2SZFE
- TRANSMISSION
- ATM
- From
- 08.2007
- To
- 12.2010
- Gear Shift Type
- CVFC
- No.of Doors
- 5D
- Vehicle Model
- VITZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17780D
|
17780D
17780-23010 Valve Assy, Thermostat[08.2007 - 09.2008] 2SZFE..SCP90..RS |
17780-23010 |
US $45.30 |
||
|
22210
|
22210
22030-23010 Body Assy, Throttle[08.2007 - 09.2008] 2SZFE..SCP90..RS |
22030-23010 |
US $939.12 |
||
|
22210C
|
22210C
16261-23040 Hose, Water By-Pass, No.1[08.2007 - 09.2008] 2SZFE..SCP90 ＮＯ．１ |
16261-23040 |
US $9.28 |
||
|
22210C
|
22210C
16261-23070 Hose, Water By-Pass, No.1[08.2007 - 09.2008] 2SZFE..SCP90 ＮＯ．２ |
16261-23070 |
US $9.28 |
||
|
22210D
|
22210D
16264-23050 Hose, Water By-Pass, No.2[08.2007 - 09.2008] 2SZFE..SCP90 |
16264-23050 |
US $9.28 |
||
|
22210E
|
22210E
90466-10002 Clamp Or Clip, Hose(For Water By-Pass Hose, No.1)[08.2007 - 09.2008] 2SZFE..SCP90 ＮＯ．１ |
90466-10002 |
US $2.08 |
||
|
22210E
|
22210E
90466-12001 Clamp Or Clip, Hose(For Water By-Pass Hose, No.1)[08.2007 - 09.2008] 2SZFE..SCP90 ＮＯ．３ |
90466-12001 |
US $1.92 |
||
|
22210E
|
22210E
90467-12062 Clamp Or Clip, Hose(For Water By-Pass Hose, No.1)[08.2007 - 09.2008] 2SZFE..SCP90 ＮＯ．２ |
90467-12062 |
US $1.44 |
||
|
22267
|
22267
22267-23020 Bracket, Throttle Body[08.2007 - 09.2008] 2SZFE..SCP90..RS |
22267-23020 |
US $38.44 |
||
|
23250
|
23250
23209-29015 Injector Assy, Fuel[08.2007 - 09.2008] 2SZFE..SCP90..RS |
23209-29015 |
US $281.40 |
||
|
23250B
|
23250B
90301-07037 Ring, O(For Fuel Injector)[08.2007 - 09.2008] 1NZFE..NCP91..RS; 2SZFE..SCP90..RS |
90301-07037 |
from US $2.20 |
||
|
23291
|
23291
23291-23010 Insulator, Injector Vibration[08.2007 - 09.2008] 2SZFE..SCP90..RS |
23291-23010 |
from US $2.98 |
||
|
23807
|
23807
23807-23041 Pipe Sub-Assy, Fuel Delivery[08.2007 - 09.2008] 2SZFE..SCP90..RS |
23807-23041 |
US $63.77 |
||
|
23841B
|
23841B
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[08.2007 - 09.2008] 2SZFE..SCP90; 1NZFE,2NZFE..NCP9# |
23841-21050 |
US $3.52 |
||
|
23901
|
23901
23901-23040 Tube Sub-Assy, Fuel[08.2007 - 09.2008] 2SZFE..SCP90 |
23901-23040 |
US $143.27 |
||
|
9030107037
|
9030107037
90301-07037 Ring, O(For Fuel Injector) |
90301-07037 |
from US $2.20 |
||
|
9030149009
|
9030149009
90301-49009 RING O |
90301-49009 |
from US $4.08 |
||
|
9046400864
|
9046400864
90464-00864 New Genuine Part |
90464-00864 |
US $2.04 |
||
|
9155180825
|
9155180825
91551-80825 Bolt(For Cylinder Head Set Sub) |
91551-80825 |
from US $0.82 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
|
9167180620
|
9167180620
91671-80620 New Genuine Part |
91671-80620 |
US $0.96 |
||
|
9167180830
|
9167180830
91671-80830 BOLT FLANGE |
91671-80830 |
US $1.28 |
||
|
9167180855
|
9167180855
91671-80855 New Genuine Part |
91671-80855 |
US $2.72 |
