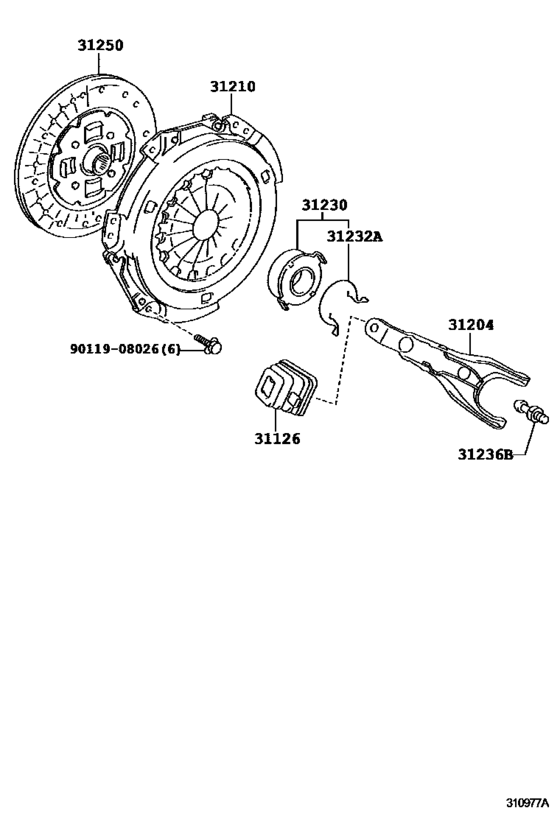

Clutch & Release Fork ([05.2002 - ] (0205- )6F) Diagram Toyota VOLTZ
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE137
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- From
- 05.2002
- To
- 02.2004
- Gear Shift Type
- 6F
- Vehicle Model
- VOLTZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-12051 Boot, Clutch Release Fork[05.2002 - 02.2004] ZZE137..6F |
31126-12051 |
from US $10.08 |
||
|
31204
|
31204
31204-17010 Fork Sub-Assy, Clutch Release[05.2002 - 02.2004] ZZE137..6F |
31204-17010 |
from US $44.23 |
||
|
31210
|
31210
31210-20380 Cover Assy, Clutch[05.2002 -] ZZE137..6F |
31210-20380 |
US $154.34 |
||
| replacement | |||||
|
31210
|
31210
31210-12291 Cover Assy, ClutchCLUTCH [05.2002 -] ZZE137..6F |
31210-12291 |
from US $143.11 |
||
|
31230
|
31230
31230-12191 Bearing Assy, Clutch Release[05.2002 - 02.2004] ZZE137..6F |
31230-12191 |
from US $37.65 |
||
|
31232A
|
31232A
31232-12070 Clip, Release Bearing Hub[05.2002 - 02.2004] ZZE137..6F |
31232-12070 |
US $3.20 |
||
|
31236B
|
31236B
31236-12020 Support, Release Fork[05.2002 - 02.2004] ZZE137..6F |
31236-12020 |
US $8.16 |
||
|
31250
|
31250
31250-12360
Disc Assy, Clutch
[05.2002 -] ZZE137..6F |
31250-12360 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-12361 Disc Assy, Clutch[05.2002 -] ZZE137..6F |
31250-12361 |
from US $126.83 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
