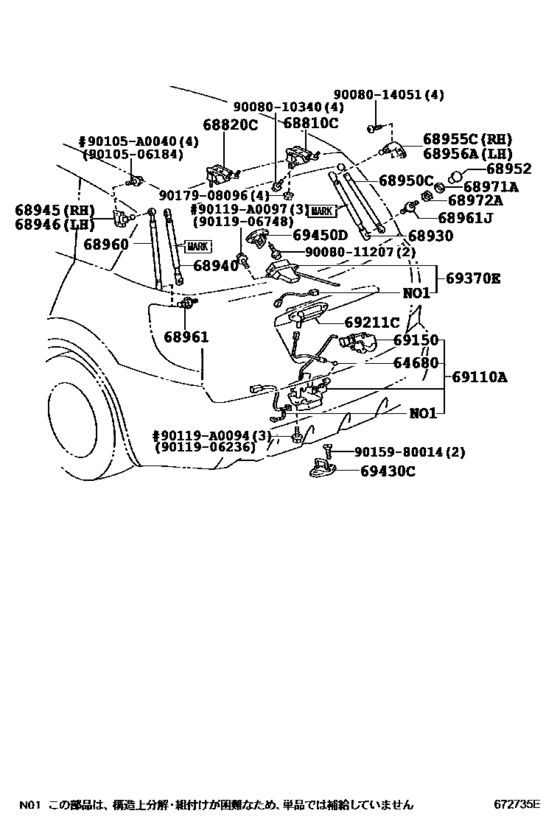

Back Door Lock & Handle ([05.2002 - ] (0205- )) Diagram Toyota VOLTZ
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE137
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 05.2002
- To
- 02.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- VOLTZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64680
|
64680
64680-01010
Cable Assy, Back Door Lock Control
[05.2002 -] ZZE13# |
64680-01010 |
— | ||
|
68810C
|
68810C
68810-01010 Hinge Assy, Back Door, Rh[05.2002 - 02.2004] ZZE13# |
68810-01010 |
US $65.08 |
||
|
68820C
|
68820C
68820-01010 Hinge Assy, Back Door, Lh[05.2002 - 02.2004] ZZE13# |
68820-01010 |
US $65.08 |
||
|
68930
|
68930
68930-01010 Stay Assy, Back Window, Rh[05.2002 - 10.2002] ZZE13# |
68930-01010 |
US $126.67 |
||
| replacement | |||||
|
68930
|
68930
68930-01012
Stay Assy, Back Window, Rh
[05.2002 - 10.2002] ZZE13# |
68930-01012 |
— | ||
|
68930
|
68930
68930-01011 Stay Assy, Back Window, Rh[10.2002 -] ZZE13# マーク ６８９３０−０１０１１ |
68930-01011 |
US $126.67 |
||
| replacement | |||||
|
68930
|
68930
68930-01012
Stay Assy, Back Window, Rh
[10.2002 -] ZZE13# マーク ６８９３０−０１０１１ |
68930-01012 |
— | ||
|
68940
|
68940
68940-01010 Stay Assy, Back Window, Lh[05.2002 - 10.2002] ZZE13# |
68940-01010 |
US $126.67 |
||
| replacement | |||||
|
68940
|
68940
68940-01012
Stay Assy, Back Window, Lh
[05.2002 - 10.2002] ZZE13# |
68940-01012 |
— | ||
|
68940
|
68940
68940-01011 Stay Assy, Back Window, Lh[10.2002 -] ZZE13# マーク ６８９４０−０１０１１ |
68940-01011 |
US $126.67 |
||
| replacement | |||||
|
68940
|
68940
68940-01012
Stay Assy, Back Window, Lh
[10.2002 -] ZZE13# マーク ６８９４０−０１０１１ |
68940-01012 |
— | ||
|
68945
|
68945
68945-12030 Bracket, Back Door Damper Stay, Upper Rh[05.2002 -] ZZE13# |
68945-12030 |
US $8.80 |
||
|
68946
|
68946
68945-12030 Bracket, Back Door Damper Stay, Upper Rh[05.2002 -] ZZE13# |
68945-12030 |
US $8.80 |
||
|
68950C
|
68950C
68950-01030
Stay Assy, Back Door, Rh
[05.2002 -] ZZE13# |
68950-01030 |
— | ||
| replacement | |||||
|
68950C
|
68950C
68950-01032
Stopper Assy, Rear Swing Gate Lock
[05.2002 -] ZZE13# |
68950-01032 |
— | ||
|
68952
|
68952
68952-32011 Retainer, Back Door Stay[05.2002 - 02.2004] ZZE13# |
68952-32011 |
US $6.88 |
||
|
68955C
|
68955C
68955-12040 Bracket, Back Window Stay, Upper Rh[05.2002 -] ZZE13# |
68955-12040 |
US $15.58 |
||
|
68956A
|
68956A
68956-12020 Bracket, Back Window Stay, Upper Lh[05.2002 -] ZZE13# |
68956-12020 |
US $15.58 |
||
|
68960
|
68960
68960-01010
Stay Assy, Back Door, Lh
[05.2002 -] ZZE13# |
68960-01010 |
— | ||
| replacement | |||||
|
68960
|
68960
68960-01012
Stay Assy, Back Door, Lh
[05.2002 -] ZZE13# |
68960-01012 |
— | ||
|
68961
|
68961
68961-20140 Bolt, Back Door Stay[05.2002 -] ZZE13# |
68961-20140 |
US $4.48 |
||
|
68961J
|
68961J
68961-12060 Bolt, Back Window Stay[05.2002 - 02.2004] ZZE13# |
68961-12060 |
US $5.97 |
||
|
68971A
|
68971A
68971-32010 Packing, Back Door Stay, No.1[05.2002 - 02.2004] ZZE13# |
68971-32010 |
US $3.20 |
||
|
68972A
|
68972A
68972-32010 Packing, Back Door Stay, No.2[05.2002 - 02.2004] ZZE13# |
68972-32010 |
US $7.86 |
||
|
69110A
|
69110A
69110-01010 Lock Assy, Back Door W/motor[05.2002 -] ZZE13# |
69110-01010 |
US $179.09 |
||
|
69150
|
69150
69150-08010
Actuator Assy, Back Door Lock
[05.2002 -] ZZE13# |
69150-08010 |
— | ||
|
69211C
|
69211C
69023-13020 Handle Sub-Assy, Back Door Outside[05.2002 -] ZZE13# |
69023-13020 |
US $33.90 |
||
|
69370E
|
69370E
69370-01010 Lock Assy, Back Window[05.2002 -] ZZE13# |
69370-01010 |
US $78.62 |
||
|
69430C
|
69430C
69410-08020
Striker Assy, Back Door Lock
[05.2002 -] ZZE13# |
69410-08020 |
— | ||
|
69450D
|
69450D
69450-01010 Striker Assy, Back Window Lock[05.2002 -] ZZE13# |
69450-01010 |
US $11.79 |
||
|
90105A0040
|
90105A0040
90105-A0040
New Genuine Part
|
90105-A0040 |
— | ||
|
90119A0094
|
90119A0094
90119-A0094
New Genuine Part
|
90119-A0094 |
— | ||
|
90119A0097
|
90119A0097
90119-A0097
New Genuine Part
|
90119-A0097 |
— | ||
|
9008010340
|
9008010340
90080-10340 New Genuine Part |
90080-10340 |
US $0.96 |
||
|
9008011207
|
9008011207
90080-11207
New Genuine Part
|
90080-11207 |
— | ||
|
9008014051
|
9008014051
90080-14051 New Genuine Part |
90080-14051 |
US $1.46 |
||
|
9015980014
|
9015980014
90159-80014 SCREW |
90159-80014 |
US $1.92 |
||
|
9017908096
|
9017908096
90179-08096 NUT |
90179-08096 |
from US $1.46 |
||
| replacement | |||||
|
9017908096
|
9017908096
90080-18061 New Genuine Part |
90080-18061 |
US $4.47 |
||
