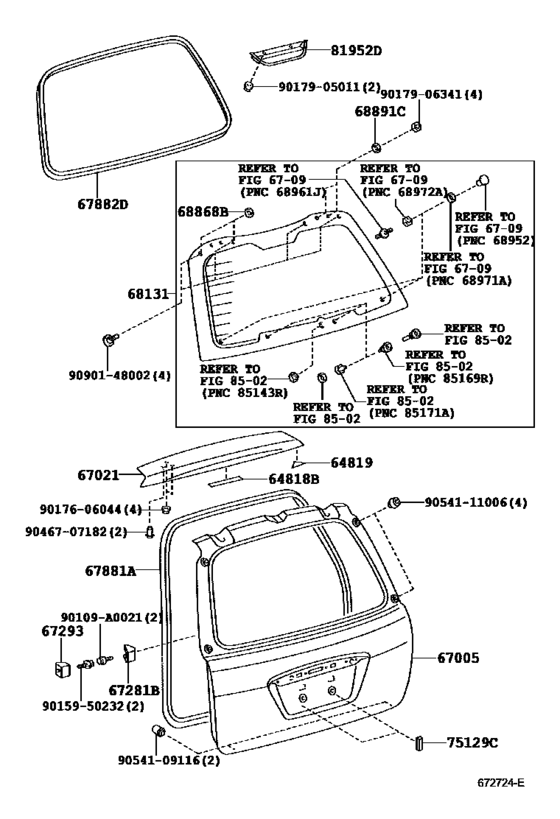

Back Door Panel & Glass ([05.2002 - ] (0205- )) Diagram Toyota VOLTZ
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE137
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 05.2002
- To
- 02.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- VOLTZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64818B
|
64818B
64819-01010 Spacer, Back Door Glass, No.1[05.2002 - 02.2004] ZZE13# |
64819-01010 |
US $3.06 |
||
|
64819
|
64819
64819-01020 Spacer, Back Window Glass, No.2[05.2002 - 02.2004] ZZE13# |
64819-01020 |
US $1.60 |
||
|
67005
|
67005
67005-01110 Panel Sub-Assy, Back Door[05.2002 - 02.2004] ZZE13# |
67005-01110 |
US $824.10 |
||
|
67021
|
67021
67021-01030 Panel Sub-Assy, Back Door, Upper Outer[05.2002 - 02.2004] ZZE13# |
67021-01030 |
US $157.25 |
||
|
67281B
|
67281B
67281-01020 Stopper, Back Door, Lower[05.2002 - 02.2004] ZZE13# |
67281-01020 |
US $15.72 |
||
|
67293
|
67293
67293-01020 Cushion, Back Door Lower Stopper[05.2002 - 02.2004] ZZE13# |
67293-01020 |
US $9.32 |
||
|
67881A
|
67881A
67881-01040 Weatherstrip, Back Door[05.2002 - 02.2003] ZZE13# |
67881-01040 |
US $141.23 |
||
| replacement | |||||
|
67881A
|
67881A
67881-01041 Weatherstrip, Back Door[05.2002 - 02.2003] ZZE13# |
67881-01041 |
US $139.78 |
||
|
67881A
|
67881A
67881-01041 Weatherstrip, Back Door[02.2003 - 02.2004] ZZE13# |
67881-01041 |
US $139.78 |
||
|
67882D
|
67882D
67882-01010 Weatherstrip, Back Door, No.2[05.2002 - 02.2004] ZZE13# |
67882-01010 |
US $103.38 |
||
|
68131
|
68131
68105-01010 Glass, Back Door[05.2002 - 02.2004] ZZE13# ＊ＥＨＴＴ，厚さ＝５．０，グリーン |
68105-01010 |
US $1,557.92 |
||
|
68868B
|
68868B
68868-32010 Seal, Back Door Hinge[05.2002 - 02.2004] ZZE13# |
68868-32010 |
US $2.56 |
||
|
68891C
|
68891C
68891-32010 Packing, Back Door Hinge Male[05.2002 - 02.2004] ZZE13# |
68891-32010 |
US $3.06 |
||
|
75129C
|
75129C
75129-02020
Cushion, Rear Licence Plate
[01.2004 - 02.2004] ZZE13# |
75129-02020 |
— | ||
|
75129C
|
75129C
75129-21010 Cushion, Windshield[05.2002 - 01.2004] ZZE13# |
75129-21010 |
US $1.28 |
||
|
81952D
|
81952D
81952-01010 Cover, Rear Lamp[05.2002 - 02.2004] ZZE13# |
81952-01010 |
US $26.21 |
||
|
90109A0021
|
90109A0021
90109-A0021
New Genuine Part
|
90109-A0021 |
— | ||
|
9015950232
|
9015950232
90159-50232 SCREW WWASHER |
90159-50232 |
US $1.92 |
||
|
9017606044
|
9017606044
90176-06044 New Genuine Part |
90176-06044 |
US $1.46 |
||
|
9017905011
|
9017905011
90179-05011 NUT |
90179-05011 |
from US $0.78 |
||
| replacement | |||||
|
9017905011
|
9017905011
90178-A0005 New Genuine Part |
90178-A0005 |
US $3.02 |
||
|
9017906341
|
9017906341
90179-06341 NUT |
90179-06341 |
US $1.60 |
||
|
9046707182
|
9046707182
90467-07182 New Genuine Part |
90467-07182 |
US $1.75 |
||
|
9054109116
|
9054109116
90541-09116 Cushion(For Luggage Compartment Door Panel) |
90541-09116 |
from US $1.60 |
||
|
9054111006
|
9054111006
90541-11006 Cushion, Luggage Door Hinge |
90541-11006 |
US $1.46 |
||
|
9090148002
|
9090148002
90901-48002 Screw Hex Lobular |
90901-48002 |
US $1.92 |
||
