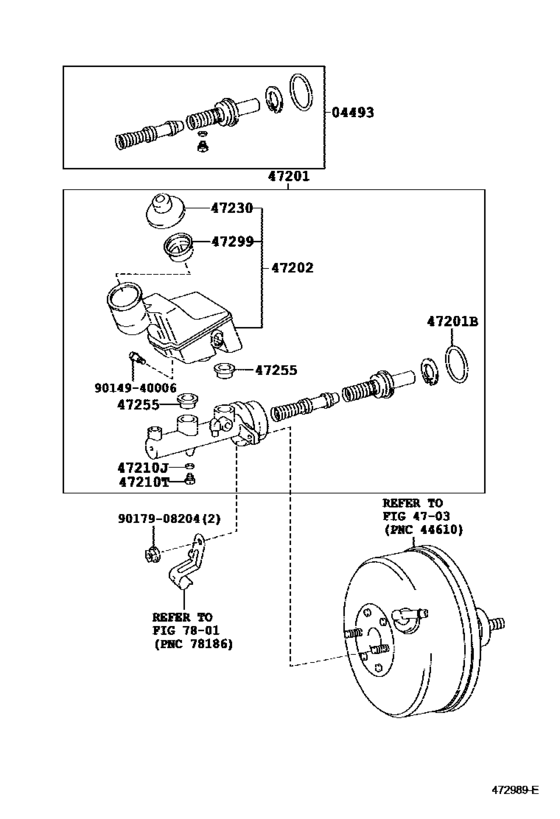

Brake Master Cylinder ([05.2002 - ] (0205- )) Diagram Toyota VOLTZ
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE137
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 05.2002
- To
- 02.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- VOLTZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-01020 Cylinder Kit, Brake Master[05.2002 -] ZZE13# |
04493-01020 |
US $62.61 |
||
|
47201
|
47201
47201-01040 Cylinder Sub-Assy, Brake Master[05.2002 -] ZZE13#..4FC |
47201-01040 |
US $390.21 |
||
|
47201B
|
47201B
90029-20059 Ring, O(For Brake Master Cylinder)[05.2002 -] ZZE13# |
90029-20059 |
from US $3.20 |
||
|
47202
|
47202
47220-01030
Reservoir Sub-Assy, Brake Master Cylinder
[05.2002 -] ZZE13#..4FC |
47220-01030 |
— | ||
| replacements | |||||
|
47202
|
47202
47220-12121 Reservoir Sub-Assy, Brake Master Cylinder[05.2002 -] ZZE13#..4FC |
47220-12121 |
US $131.04 |
||
|
47202
|
47202
90149-40021 New Genuine Part[05.2002 -] ZZE13#..4FC |
90149-40021 |
US $1.28 |
||
|
47210J
|
47210J
90029-43001 Gasket(For Master Cylinder)[05.2002 -] ZZE13# |
90029-43001 |
US $1.40 |
||
|
47210T
|
47210T
90109-06077 Bolt(For Brake Master Cylinder)[05.2002 -] ZZE13# |
90109-06077 |
from US $2.56 |
||
|
47230
|
47230
47230-01030
Cap Assy, Brake Master Cylinder Reservoir Filler
[05.2002 - 02.2004] ZZE13# |
47230-01030 |
— | ||
| replacement | |||||
|
47230
|
47230
47230-01031 Cap Assy, Brake Master Cylinder Reservoir Filler[05.2002 - 02.2004] ZZE13# |
47230-01031 |
US $8.48 |
||
|
47255
|
47255
47255-03010 Grommet, Master Cylinder Reservoir[05.2002 -] ZZE13# |
47255-03010 |
US $4.80 |
||
|
47299
|
47299
47299-25010 Strainer, Master Cylinder Reservoir[05.2002 -] ZZE13# |
47299-25010 |
US $5.42 |
||
|
9014940006
|
9014940006
90149-40006 Bolt |
90149-40006 |
from US $1.44 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
