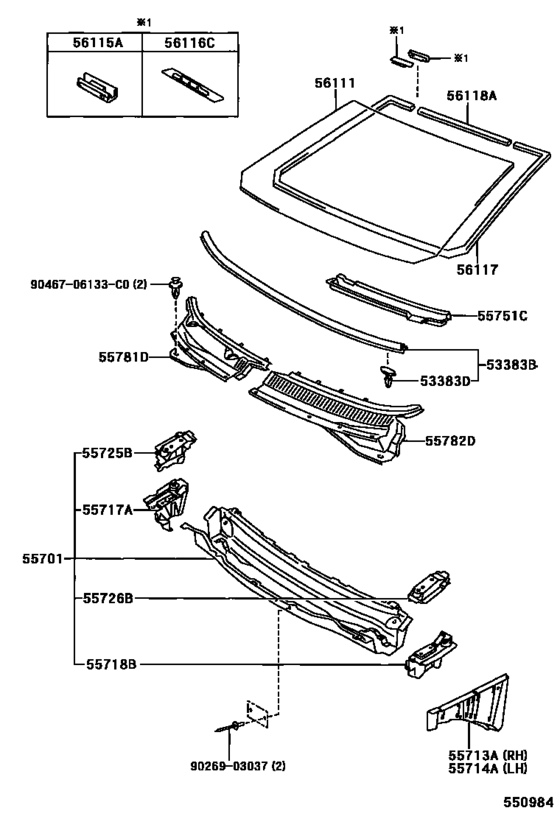

Cowl Panel & Windshield Glass ([05.2002 - ] (0205- )) Diagram Toyota VOLTZ
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE137
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 05.2002
- To
- 02.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- VOLTZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383B
|
53383B
53383-01020 Seal, Hood To Cowl Top[05.2002 -] ZZE13# |
53383-01020 |
US $13.98 |
||
|
53383D
|
53383D
90467-08108 Clip(For Hood To Cowl Top Seal)[05.2002 -] ZZE13# |
90467-08108 |
from US $0.82 |
||
|
55701
|
55701
55700-01050 Panel Sub-Assy, Cowl[05.2002 - 02.2004] ZZE13# |
55700-01050 |
US $500.86 |
||
|
55713A
|
55713A
55713-02040 Panel, Cowl Top Side, Rh[05.2002 - 02.2004] ZZE13# |
55713-02040 |
US $33.20 |
||
|
55714A
|
55714A
55714-02040 Panel, Cowl Top Side, Lh[05.2002 - 02.2004] ZZE13# |
55714-02040 |
US $33.20 |
||
|
55717A
|
55717A
55717-02050 Panel, Cowl Top Side, Inner Rh[05.2002 -] ZZE13# |
55717-02050 |
US $22.57 |
||
|
55718B
|
55718B
55718-02040 Panel, Cowl Top Side, Inner Lh[05.2002 -] ZZE13# |
55718-02040 |
US $22.57 |
||
|
55725B
|
55725B
55705-01020 Reinforcement, Hood Hinge Mounting[05.2002 -] ZZE13# |
55705-01020 |
US $20.82 |
||
|
55726B
|
55726B
55706-01020 Reinforcement, Hood Hinge Mounting, Lh[05.2002 -] ZZE13# |
55706-01020 |
US $19.95 |
||
|
55751C
|
55751C
55751-01020
Shield, Cowl Ventilator Splash
[05.2002 -] ZZE13# |
55751-01020 |
— | ||
|
55781D
|
55781D
55708-01020 Louver, Cowl Top Ventilator, Rh[05.2002 - 11.2003] ZZE13# |
55708-01020 |
US $94.64 |
||
| replacement | |||||
|
55781D
|
55781D
55708-01021 Louver, Cowl Top Ventilator, Rh[05.2002 - 11.2003] ZZE13# |
55708-01021 |
US $94.64 |
||
|
55781D
|
55781D
55708-01021 Louver, Cowl Top Ventilator, Rh[11.2003 -] ZZE13# |
55708-01021 |
US $94.64 |
||
|
55782D
|
55782D
55709-01020 Louver, Cowl Top Ventilator, Lh[05.2002 - 11.2003] ZZE13# |
55709-01020 |
US $94.64 |
||
| replacement | |||||
|
55782D
|
55782D
55709-01021 Louver, Cowl Top Ventilator, Lh[05.2002 - 11.2003] ZZE13# |
55709-01021 |
US $94.64 |
||
|
55782D
|
55782D
55709-01021 Louver, Cowl Top Ventilator, Lh[11.2003 -] ZZE13# |
55709-01021 |
US $94.64 |
||
|
56111
|
56111
56101-01020 Glass, Windshield[05.2002 - 02.2004] ZZE13# ＊ＬＡＭ，Ｔ＝４．７６，グリーン |
56101-01020 |
US $2,271.36 |
||
|
56115A
|
56115A
56115-30100 Stopper, Windshield Glass, No.1[05.2002 - 02.2004] ZZE13# |
56115-30100 |
from US $1.70 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[05.2002 - 02.2004] ZZE13# |
56116-22050 |
from US $1.38 |
||
|
56117
|
56117
90998-91004 Dam Kit, Windshield Glass[05.2002 - 02.2004] ZZE13# |
90998-91004 |
US $14.88 |
||
|
56118A
|
56118A
90998-91003 Dam Kit, Windshield Glass[05.2002 - 02.2004] ZZE13# ＊Ｈ，Ｌ＝６８５ |
90998-91003 |
US $5.07 |
||
|
9026903037
|
9026903037
90269-03037 RIVET |
90269-03037 |
US $1.76 |
||
|
9046706133C0
|
9046706133C0
90467-06133-C0 Clip, Step Plate Cover |
90467-06133-C0 |
from US $1.52 |
||
