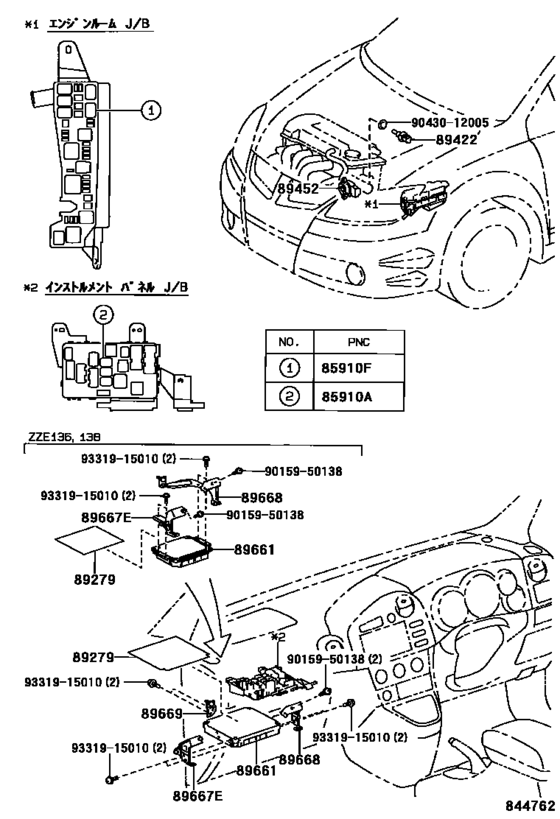

Electronic Fuel Injection System ([05.2002 - 02.2004] (0205-0402)) Diagram Toyota VOLTZ
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE137
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 05.2002
- To
- 02.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- VOLTZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
90080-87010 Relay, Ignition, No.1[05.2002 -] ZZE13# （Ｊ） |
90080-87010 |
US $14.27 |
||
|
85910A
|
85910A
90084-98031 Relay, Ignition, No.1[05.2002 -] ZZE13# （Ｌ） |
90084-98031 |
US $63.48 |
||
|
85910F
|
85910F
90080-87010 Relay, Ignition, No.1[05.2002 -] ZZE13# （Ｊ） |
90080-87010 |
US $14.27 |
||
|
85910F
|
85910F
90084-98031 Relay, Ignition, No.1[05.2002 -] ZZE13# （Ｌ） |
90084-98031 |
US $63.48 |
||
|
89279
|
89279
89279-01010 Cover, Engine Control Computer[05.2002 - 02.2004] ZZE137 |
89279-01010 |
US $3.79 |
||
|
89422
|
89422
89422-35010 Sensor, Water Temperature (For E.f.i.)[05.2002 -] ZZE13# |
89422-35010 |
from US $40.58 |
||
|
89452
|
89452
89452-35020 Sensor, Throttle Position (For E.f.i.)[05.2002 - 02.2004] ZZE137 |
89452-35020 |
from US $77.92 |
||
|
89661
|
89661
89661-01100 Computer, Engine Control[05.2002 - 02.2004] ZZE137..4FC |
89661-01100 |
US $1,499.68 |
||
|
89667E
|
89667E
89667-01010 Bracket, Engine Control Computer, No.1[05.2002 - 02.2004] ZZE137 |
89667-01010 |
US $11.21 |
||
|
89668
|
89668
89668-01010 Bracket, Engine Control Computer, No.2[05.2002 - 02.2004] ZZE137 |
89668-01010 |
US $11.79 |
||
|
89669
|
89669
89669-01010
Bracket, Engine Control Computer, No.3
[05.2002 -] ZZE137 |
89669-01010 |
— | ||
|
9015950138
|
9015950138
90159-50138 SCREW |
90159-50138 |
US $1.12 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.76 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
