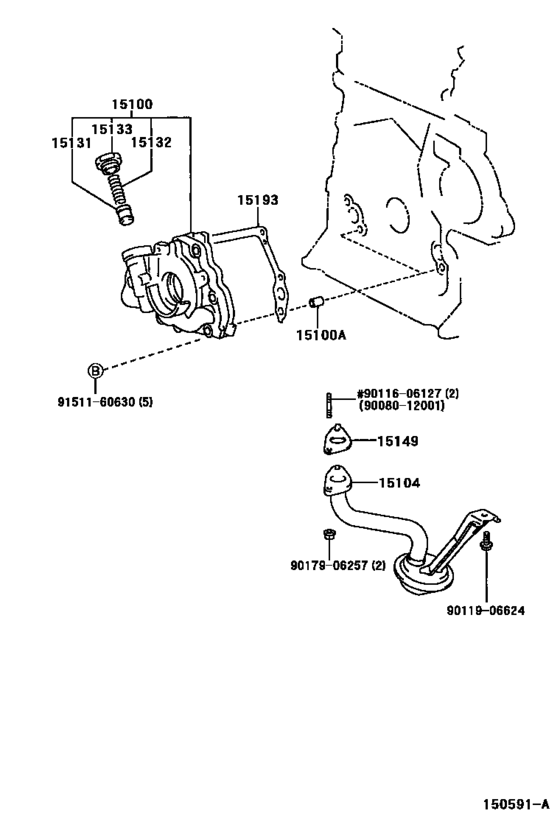

Engine Oil Pump ([05.2002 - ] (0205- )2ZZGE) Diagram Toyota VOLTZ
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE137
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 05.2002
- To
- 02.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- VOLTZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15100
|
15100
15100-88600 Pump Assy, Oil[05.2002 - 02.2004] 2ZZGE..ZZE137 |
15100-88600 |
US $279.55 |
||
|
15100A
|
15100A
90253-09003 Pin, Ring(For Oil Pump Set)[05.2002 - 02.2004] 1ZZFE,2ZZGE..ZZE13# |
90253-09003 |
US $0.33 |
||
|
15104
|
15104
15104-88601 Strainer Sub-Assy, Oil[05.2002 - 02.2004] 2ZZGE..ZZE137 |
15104-88601 |
US $68 |
||
| replacement | |||||
|
15104
|
15104
15104-88600 Strainer Sub-Assy, Oil[05.2002 - 02.2004] 2ZZGE..ZZE137 |
15104-88600 |
US $72.16 |
||
|
15131
|
15131
15131-46040 Valve, Oil Pump Relief[05.2002 - 02.2004] 2ZZGE..ZZE137 |
15131-46040 |
from US $3.10 |
||
|
15132
|
15132
15132-46020 Spring, Oil Pump Relief Valve[05.2002 - 02.2004] 2ZZGE..ZZE137 |
15132-46020 |
from US $1.54 |
||
|
15133
|
15133
15133-17010 Plug, Oil Pump Relief Valve[05.2002 - 02.2004] 2ZZGE..ZZE137 |
15133-17010 |
from US $1.91 |
||
|
15149
|
15149
15149-88600 Gasket, Oil Strainer Flange[05.2002 - 02.2004] 2ZZGE..ZZE137 |
15149-88600 |
US $7.20 |
||
|
15193
|
15193
15193-88600 Gasket, Oil Pump[05.2002 - 02.2004] 2ZZGE..ZZE137 |
15193-88600 |
from US $5.42 |
||
|
9008012001
|
9008012001
90080-12001 New Genuine Part |
90080-12001 |
US $1.16 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.78 |
||
|
9011906624
|
9011906624
90119-06624
New Genuine Part
|
90119-06624 |
— | ||
| replacement | |||||
|
9011906624
|
9011906624
90119-06512 BOLT WWASHER |
90119-06512 |
US $2.56 |
||
|
9017906257
|
9017906257
90179-06257 NUT |
90179-06257 |
US $1.92 |
||
|
9151160630
|
9151160630
91511-60630 BOLT |
91511-60630 |
from US $1.92 |
||
