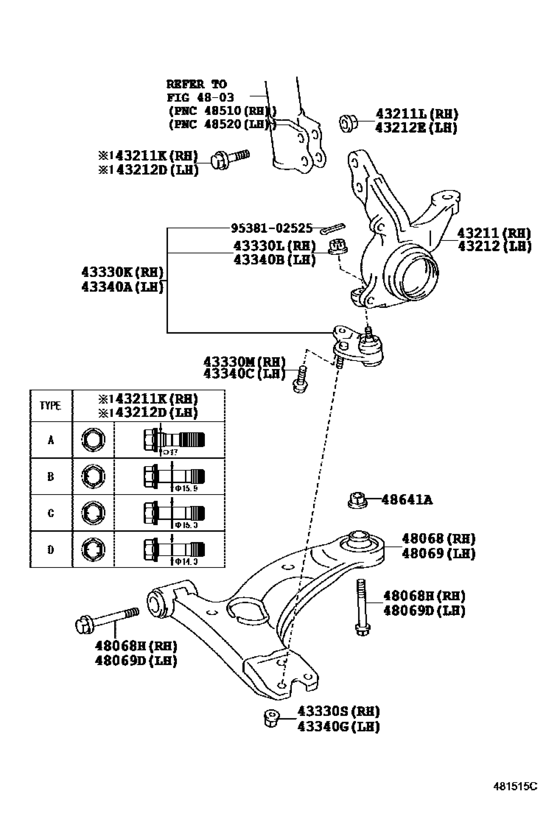

Front Axle Arm & Steering Knuckle ([05.2002 - ] (0205- )) Diagram Toyota VOLTZ
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE137
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 05.2002
- To
- 02.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- VOLTZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43211-12420 Knuckle, Steering, Rh[05.2002 -] ZZE136,137 |
43211-12420 |
US $241.70 |
||
|
43211K
|
43211K
90105-17001 Bolt (For Absorber Setting)[05.2002 - 05.2003] ZZE13# 外径＝１７ |
90105-17001 |
from US $6.05 |
||
|
43211K
|
43211K
90105-17003 Bolt (For Steering Knuckle Rh)[05.2002 -] ZZE13# 外径＝１５．９ |
90105-17003 |
from US $5.07 |
||
|
43211K
|
43211K
90105-17004 Bolt (For Steering Knuckle Rh)[05.2002 -] ZZE13# 外径＝１５ |
90105-17004 |
US $6.99 |
||
|
43211K
|
43211K
90105-17005 Bolt (For Steering Knuckle Rh)[05.2002 -] ZZE13# 外径＝１４ |
90105-17005 |
US $6.60 |
||
|
43211K
|
43211K
90105-A0041
Bolt (For Steering Knuckle Rh)
[05.2003 -] ZZE13# 外径＝１７ |
90105-A0041 |
— | ||
|
43211L
|
43211L
90179-17001 Nut (For Absorber Setting)[05.2002 -] ZZE13# |
90179-17001 |
US $4.16 |
||
|
43212
|
43212
43212-12370 Knuckle, Steering, Lh[05.2002 -] ZZE136,137 |
43212-12370 |
US $226.32 |
||
|
43212D
|
43212D
90105-17001 Bolt (For Absorber Setting)[05.2002 - 05.2003] ZZE13# 外径＝１７ |
90105-17001 |
from US $6.05 |
||
|
43212D
|
43212D
90105-17003 Bolt (For Steering Knuckle Rh)[05.2002 -] ZZE13# 外径＝１５．９ |
90105-17003 |
from US $5.07 |
||
|
43212D
|
43212D
90105-17004 Bolt (For Steering Knuckle Rh)[05.2002 -] ZZE13# 外径＝１５ |
90105-17004 |
US $6.99 |
||
|
43212D
|
43212D
90105-17005 Bolt (For Steering Knuckle Rh)[05.2002 -] ZZE13# 外径＝１４ |
90105-17005 |
US $6.60 |
||
|
43212D
|
43212D
90105-A0041
Bolt (For Steering Knuckle Rh)
[05.2003 -] ZZE13# 外径＝１７ |
90105-A0041 |
— | ||
|
43212E
|
43212E
90179-17001 Nut (For Absorber Setting)[05.2002 -] ZZE13# |
90179-17001 |
US $4.16 |
||
|
43330K
|
43330K
43330-09190
Joint Assy, Lower Ball, Front Rh
[05.2002 -] ZZE13# |
43330-09190 |
— | ||
| replacement | |||||
|
43330K
|
43330K
43330-09670 Joint Assy, Lower Ball, Front[05.2002 -] ZZE13# |
43330-09670 |
from US $119.48 |
||
|
43330L
|
43330L
90171-14003 Nut, Castle (For Front Lower Ball Joint Setting)[05.2002 -] ZZE13# |
90171-14003 |
from US $1.37 |
||
|
43330M
|
43330M
90080-10271 Bolt (For Front Lower Ball Joint Rh)[05.2002 -] ZZE13# |
90080-10271 |
from US $1.60 |
||
|
43330S
|
43330S
90178-12015 Nut (For Front Lower Ball Joint Rh)[05.2002 -] ZZE13# |
90178-12015 |
US $2.56 |
||
|
43340A
|
43340A
43330-09190
Joint Assy, Lower Ball, Front Rh
[05.2002 -] ZZE13# |
43330-09190 |
— | ||
| replacement | |||||
|
43340A
|
43340A
43330-09670 Joint Assy, Lower Ball, Front[05.2002 -] ZZE13# |
43330-09670 |
from US $119.48 |
||
|
43340B
|
43340B
90171-14003 Nut, Castle (For Front Lower Ball Joint Setting)[05.2002 -] ZZE13# |
90171-14003 |
from US $1.37 |
||
|
43340C
|
43340C
90080-10271 Bolt (For Front Lower Ball Joint Rh)[05.2002 -] ZZE13# |
90080-10271 |
from US $1.60 |
||
|
43340G
|
43340G
90178-12015 Nut (For Front Lower Ball Joint Rh)[05.2002 -] ZZE13# |
90178-12015 |
US $2.56 |
||
|
48068
|
48068
48068-02020 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[05.2002 -] ZZE13# |
48068-02020 |
US $222.77 |
||
| replacement | |||||
|
48068
|
48068
48068-02021 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[05.2002 -] ZZE13# |
48068-02021 |
US $222.77 |
||
|
48068H
|
48068H
90080-11506
Bolt(For Front Suspension Lower Arm No.1 Rh)
[05.2002 -] ZZE13# |
90080-11506 |
— | ||
|
48069
|
48069
48069-02020 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[05.2002 -] ZZE13# |
48069-02020 |
US $222.77 |
||
| replacement | |||||
|
48069
|
48069
48069-02021 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[05.2002 -] ZZE13# |
48069-02021 |
US $222.77 |
||
|
48069D
|
48069D
90080-11506
Bolt(For Front Suspension Lower Arm No.1 Rh)
[05.2002 -] ZZE13# |
90080-11506 |
— | ||
|
48641A
|
48641A
90179-14068 Nut(For Front Suspension Lower Arm)[05.2002 -] ZZE13# |
90179-14068 |
from US $1.92 |
||
|
9538102525
|
9538102525
95381-02525 PINCOTTER |
95381-02525 |
from US $1.92 |
||
