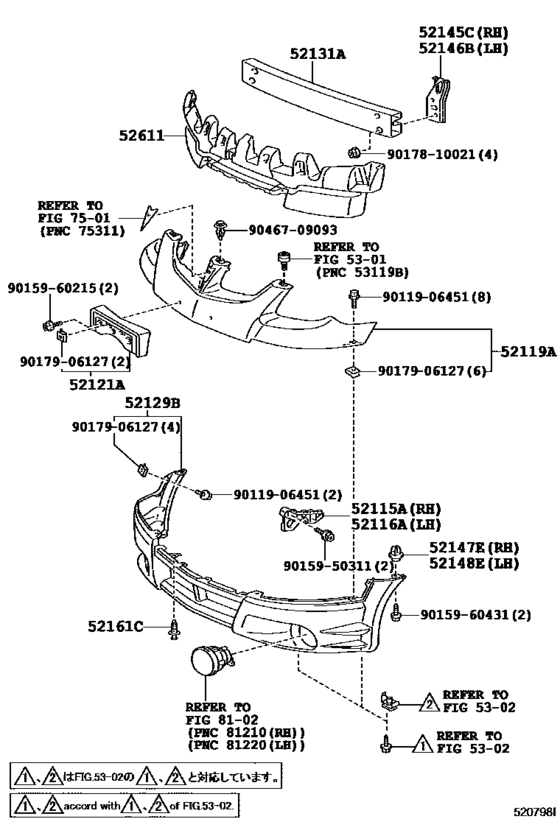

Front Bumper & Bumper Stay ([05.2002 - 02.2004] (0205-0402)) Diagram Toyota VOLTZ
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE137
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 05.2002
- To
- 02.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- VOLTZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52115A
|
52115A
52115-01040
Support, Front Bumper Side, Rh
[05.2002 -] ZZE13# |
52115-01040 |
— | ||
|
52116A
|
52116A
52116-01040 Support, Front Bumper Side, Lh[05.2002 -] ZZE13# |
52116-01040 |
US $28.13 |
||
|
52119A
|
52119A
52119-01120-A0 Cover, Front Bumper[05.2002 - 02.2004] ZZE137 SUPER WHITE 2,040 |
52119-01120-A0 |
US $497.95 |
||
|
52119A
|
52119A
52119-01120-B0 Cover, Front Bumper[01.2003 - 02.2004] ZZE137 SILVER ME.,1C8 |
52119-01120-B0 |
US $497.95 |
||
|
52119A
|
52119A
52119-01120-B1 Cover, Front Bumper[05.2003 - 02.2004] ZZE13# CHARCOAL GRAY ME.,1E6 |
52119-01120-B1 |
US $497.95 |
||
|
52119A
|
52119A
52119-01120-C0
Cover, Front Bumper
[05.2002 - 02.2004] ZZE137 BLACK MC.,209 |
52119-01120-C0 |
— | ||
|
52119A
|
52119A
52119-01120-E0 Cover, Front Bumper[05.2003 - 02.2004] ZZE13# ORANGE ME.,4R9 |
52119-01120-E0 |
US $497.95 |
||
|
52119A
|
52119A
52119-01120-J0 Cover, Front Bumper[05.2003 - 02.2004] ZZE13# DK.BLUE M.M.,8P4 |
52119-01120-J0 |
US $497.95 |
||
|
52121A
|
52121A
52121-01030 Bracket, Front License Plate Mounting, Rh[05.2002 - 02.2004] ZZE13# |
52121-01030 |
US $39.17 |
||
|
52129B
|
52129B
52129-01020-A0 Cover, Front Bumper, Lower[05.2002 - 02.2004] ZZE137 SUPER WHITE 2,040 |
52129-01020-A0 |
US $627.54 |
||
|
52129B
|
52129B
52129-01020-B2 Cover, Front Bumper, Lower[05.2003 - 02.2004] ZZE13# CHARCOAL GRAY ME.,1E6 |
52129-01020-B2 |
US $627.54 |
||
|
52129B
|
52129B
52129-01020-B3 Cover, Front Bumper, Lower[01.2003 - 02.2004] ZZE13# SILVER ME.,1C8 |
52129-01020-B3 |
US $627.54 |
||
|
52129B
|
52129B
52129-01020-C0 Cover, Front Bumper, Lower[05.2002 - 02.2004] ZZE137 BLACK MC.,209 |
52129-01020-C0 |
US $627.54 |
||
|
52129B
|
52129B
52129-01020-E0 Cover, Front Bumper, Lower[05.2003 - 02.2004] ZZE13# ORANGE ME.,4R9 |
52129-01020-E0 |
US $627.54 |
||
|
52129B
|
52129B
52129-01020-J0 Cover, Front Bumper, Lower[05.2003 - 02.2004] ZZE13# DK.BLUE M.M.,8P4 |
52129-01020-J0 |
US $627.54 |
||
|
52131A
|
52131A
52021-01030 Reinforcement, Front Bumper[05.2002 -] ZZE13# |
52021-01030 |
US $275.18 |
||
|
52145C
|
52145C
52145-01030 Bracket, Front Bumper Side Mounting, Rh[05.2002 -] ZZE13# |
52145-01030 |
US $36.40 |
||
|
52146B
|
52146B
52146-01030 Bracket, Front Bumper Side Mounting, Lh[05.2002 -] ZZE13# |
52146-01030 |
US $38.44 |
||
|
52147E
|
52147E
52147-02030 Bracket, Front Bumper Mounting, Rh[05.2002 -] ZZE13# |
52147-02030 |
US $3.32 |
||
|
52148E
|
52148E
52147-02030 Bracket, Front Bumper Mounting, Rh[05.2002 -] ZZE13# |
52147-02030 |
US $3.32 |
||
|
52161C
|
52161C
52161-02020 Clip[05.2002 -] ZZE13# |
52161-02020 |
US $5.27 |
||
| replacement | |||||
|
52161C
|
52161C
52161-16010 Clip[05.2002 -] ZZE13# |
52161-16010 |
from US $1.68 |
||
|
52611
|
52611
52611-01050 Absorber, Front Bumper Energy[05.2002 -] ZZE13# |
52611-01050 |
US $168.90 |
||
|
9011906451
|
9011906451
90119-06451 BOLT WWASHER |
90119-06451 |
from US $0.80 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.76 |
||
| replacement | |||||
|
9015950311
|
9015950311
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9015960215
|
9015960215
90159-60215 SCREW |
90159-60215 |
from US $1.12 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.78 |
||
|
9017810021
|
9017810021
90178-10021 NUT FLANGE |
90178-10021 |
from US $0.96 |
||
|
9017906127
|
9017906127
90179-06127 Bracket, Front Licence Plate Mounting |
90179-06127 |
from US $0.74 |
||
|
9046709093
|
9046709093
90467-09093 Piece, Rear Bumper |
90467-09093 |
from US $2.57 |
||
