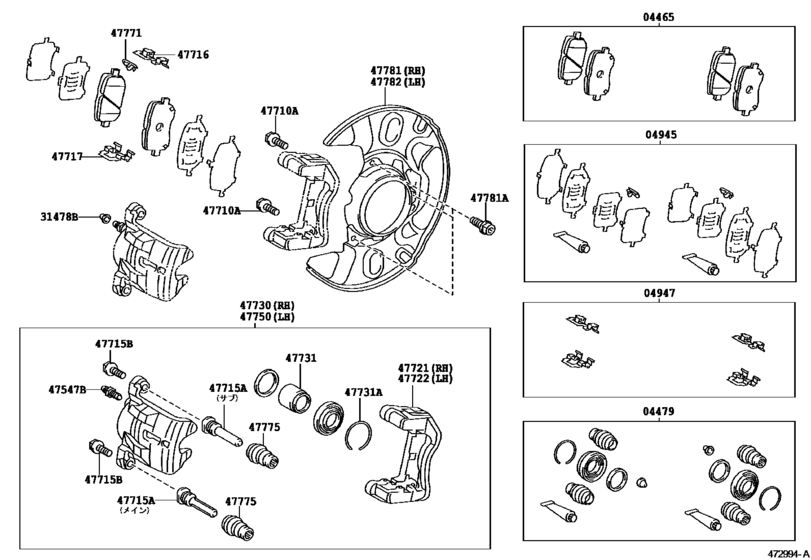

Front Disc Brake Caliper & Dust Cover ([05.2002 - ] (0205- )) Diagram Toyota VOLTZ
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE137
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 05.2002
- To
- 02.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- VOLTZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04465
|
04465
04465-02080 Pad Kit, Disc Brake, Front[05.2002 -] ZZE137,138 マーク ＡＫ ＰＡ５３３ |
04465-02080 |
US $144.14 |
||
|
04479
|
04479
04479-02100 Cylinder Kit, Disc Brake, Front[05.2002 -] ZZE13# |
04479-02100 |
US $38.46 |
||
|
04945
|
04945
04945-02040
Shim Kit, Anti Squeal, Front
[05.2002 -] ZZE137,138 |
04945-02040 |
— | ||
|
04947
|
04947
04947-02060
Fitting Kit, Disc Brake, Front
[05.2002 -] ZZE13# |
04947-02060 |
— | ||
| replacements | |||||
|
04947
|
04947
04947-02130 Fitting Kit, Disc Brake, Front[05.2002 -] ZZE13# |
04947-02130 |
US $18.17 |
||
|
04947
|
04947
47721-02141 Mounting, Front Disc Brake Cylinder, Rh[05.2002 -] ZZE13# |
47721-02141 |
US $110.07 |
||
|
31478B
|
31478B
31478-01030
Cap, Bleeder Plug(For Release Cylinder)
[05.2002 -] ZZE13# |
31478-01030 |
— | ||
|
47547B
|
47547B
47547-06010
Plug, Bleeder(For Front Disc Brake)
[05.2002 -] ZZE13# |
47547-06010 |
— | ||
|
47710A
|
47710A
90080-10067
Bolt, Hexagon(For Front Disc Brake Caliper)
[06.2002 - 02.2004] ZZE13# ＊１２−１．２５ＰＸ２９．５−２３ |
90080-10067 |
— | ||
|
47710A
|
47710A
90105-12208 Bolt, Hexagon(For Front Disc Brake Caliper)[05.2002 - 06.2002] ZZE13# ＊１２−１．２５ＰＸ２９．５−２３ |
90105-12208 |
from US $1.46 |
||
|
47715A
|
47715A
47715-02200 Pin, Front Disc Brake Cylinder Slide[05.2002 -] ZZE13# メイン |
47715-02200 |
US $6.70 |
||
|
47715A
|
47715A
47715-02210 Pin, Front Disc Brake Cylinder Slide[05.2002 -] ZZE13# サブ |
47715-02210 |
US $9.03 |
||
|
47715B
|
47715B
90080-10075 Bolt(For Front Disc Brake Cylinder Slide)[05.2002 -] ZZE13# |
90080-10075 |
US $1.05 |
||
|
47716
|
47716
47716-02100
Plate, Pad Support, No.1(For Front Disc Brake)
[05.2002 -] ZZE13# |
47716-02100 |
— | ||
| replacements | |||||
|
47716
|
47716
04947-02130 Fitting Kit, Disc Brake, Front[05.2002 -] ZZE13# |
04947-02130 |
US $18.17 |
||
|
47716
|
47716
47721-02141 Mounting, Front Disc Brake Cylinder, Rh[05.2002 -] ZZE13# |
47721-02141 |
US $110.07 |
||
|
47717
|
47717
47717-02050
Plate, Pad Support, No.2(For Front Disc Brake)
[05.2002 -] ZZE13# |
47717-02050 |
— | ||
| replacements | |||||
|
47717
|
47717
04947-02130 Fitting Kit, Disc Brake, Front[05.2002 -] ZZE13# |
04947-02130 |
US $18.17 |
||
|
47717
|
47717
47721-02141 Mounting, Front Disc Brake Cylinder, Rh[05.2002 -] ZZE13# |
47721-02141 |
US $110.07 |
||
|
47721
|
47721
47721-02140 Mounting, Front Disc Brake Cylinder, Rh[05.2002 - 02.2004] ZZE13# |
47721-02140 |
US $113.57 |
||
| replacements | |||||
|
47721
|
47721
04947-02130 Fitting Kit, Disc Brake, Front[05.2002 - 02.2004] ZZE13# |
04947-02130 |
US $18.17 |
||
|
47721
|
47721
47721-02141 Mounting, Front Disc Brake Cylinder, Rh[05.2002 - 02.2004] ZZE13# |
47721-02141 |
US $110.07 |
||
|
47722
|
47722
47721-02140 Mounting, Front Disc Brake Cylinder, Rh[05.2002 - 02.2004] ZZE13# |
47721-02140 |
US $113.57 |
||
| replacements | |||||
|
47722
|
47722
04947-02130 Fitting Kit, Disc Brake, Front[05.2002 - 02.2004] ZZE13# |
04947-02130 |
US $18.17 |
||
|
47722
|
47722
47721-02141 Mounting, Front Disc Brake Cylinder, Rh[05.2002 - 02.2004] ZZE13# |
47721-02141 |
US $110.07 |
||
|
47730
|
47730
47730-02140 Cylinder Assy, Front Disc Brake, Rh[05.2002 -] ZZE13# |
47730-02140 |
US $583.56 |
||
|
47731
|
47731
47731-02110 Piston, Front Disc Brake[05.2002 -] ZZE13# |
47731-02110 |
US $29.35 |
||
|
47731A
|
47731A
90080-52086
Ring, Set(For Front Disc Brake Piston)
[05.2002 -] ZZE13# |
90080-52086 |
— | ||
|
47750
|
47750
47750-02140 Cylinder Assy, Disc Brake, Lh[05.2002 -] ZZE13# |
47750-02140 |
US $583.56 |
||
|
47771
|
47771
47771-02090 Plate, Pad Wear Indicator, No.1[05.2002 -] ZZE13# |
47771-02090 |
US $3.35 |
||
|
47775
|
47775
47775-02090 Boot, Bush Dust(For Front Disc Brake)[05.2002 -] ZZE13# |
47775-02090 |
US $3.49 |
||
|
47781
|
47781
47781-12240 Cover, Disc Brake Dust, Front Rh[05.2002 - 02.2004] ZZE13# |
47781-12240 |
from US $20.79 |
||
|
47781A
|
47781A
90080-11429
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
[05.2003 - 02.2004] ZZE13# |
90080-11429 |
— | ||
|
47781A
|
47781A
90119-06227 Bolt(For Dust Cover To Steering Knuckle Arm Setting)[05.2002 - 05.2003] ZZE13# |
90119-06227 |
from US $0.72 |
||
|
47782
|
47782
47782-12240 Cover, Disc Brake Dust, Front Lh[05.2002 - 02.2004] ZZE13# |
47782-12240 |
from US $20.94 |
||
