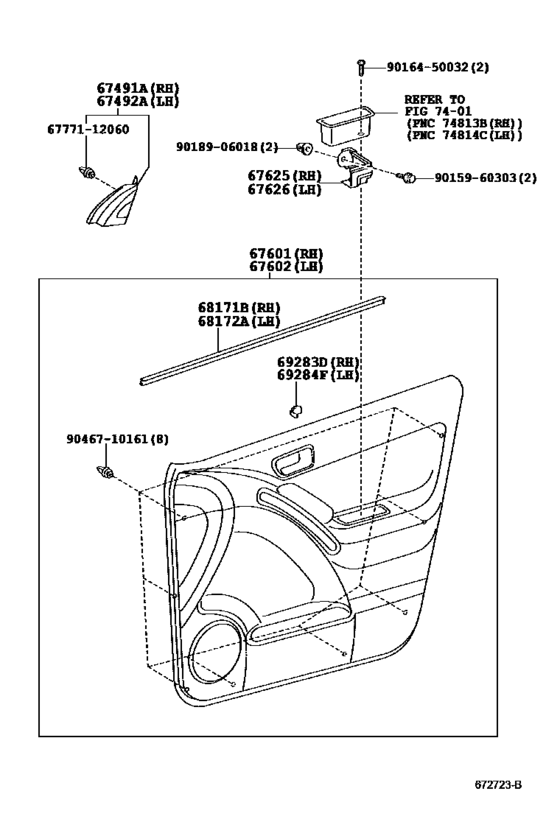

Front Door Panel & Glass ([05.2002 - ] (0205- )) Diagram Toyota VOLTZ
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE137
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 05.2002
- To
- 02.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- VOLTZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67491A
|
67491A
67491-01060
Garnish, Front Door Lower Frame Bracket, Rh
[05.2002 - 02.2004] ZZE13# |
67491-01060 |
— | ||
|
67492A
|
67492A
67492-01060
Garnish, Front Door Lower Frame Bracket, Lh
[05.2002 - 02.2004] ZZE13# |
67492-01060 |
— | ||
|
67601
|
67601
67610-01230-B2 Board Sub-Assy, Front Door Trim, Rh[05.2002 - 05.2003] ZZE13# STONE-LIGHT GRAY,TRIM13 |
67610-01230-B2 |
US $398.94 |
||
| replacement | |||||
|
67601
|
67601
67610-01370-B0 Board Sub-Assy, Front Door Trim, Rh[05.2002 - 05.2003] ZZE13# STONE-LIGHT GRAY,TRIM13 |
67610-01370-B0 |
US $398.94 |
||
|
67601
|
67601
67610-01230-B3
Board Sub-Assy, Front Door Trim, Rh
[05.2002 - 05.2003] ZZE13# DARK GRAY,TRIM14 |
67610-01230-B3 |
— | ||
| replacement | |||||
|
67601
|
67601
67610-01370-B1 Board Sub-Assy, Front Door Trim, Rh[05.2002 - 05.2003] ZZE13# DARK GRAY,TRIM14 |
67610-01370-B1 |
US $398.94 |
||
|
67601
|
67601
67610-01260-B0 Board Sub-Assy, Front Door Trim, Rh[05.2003 - 02.2004] ZZE13# STONE LIGHT GRAY,TRIM13 |
67610-01260-B0 |
US $398.94 |
||
|
67601
|
67601
67610-01260-B1 Board Sub-Assy, Front Door Trim, Rh[05.2003 - 02.2004] ZZE13# DARK GRAY,TRIM14 |
67610-01260-B1 |
US $398.94 |
||
|
67602
|
67602
67620-01340-B2 Board Sub-Assy, Front Door Trim, Lh[05.2002 - 05.2003] ZZE13# STONE-LIGHT GRAY,TRIM13 |
67620-01340-B2 |
US $398.94 |
||
| replacement | |||||
|
67602
|
67602
67620-01500-B0 Board Sub-Assy, Front Door Trim, Lh[05.2002 - 05.2003] ZZE13# STONE-LIGHT GRAY,TRIM13 |
67620-01500-B0 |
US $398.94 |
||
|
67602
|
67602
67620-01340-B3
Board Sub-Assy, Front Door Trim, Lh
[05.2002 - 05.2003] ZZE13# DARK GRAY,TRIM14 |
67620-01340-B3 |
— | ||
| replacement | |||||
|
67602
|
67602
67620-01500-B1 Board Sub-Assy, Front Door Trim, Lh[05.2002 - 05.2003] ZZE13# DARK GRAY,TRIM14 |
67620-01500-B1 |
US $398.94 |
||
|
67602
|
67602
67620-01370-B0
Board Sub-Assy, Front Door Trim, Lh
[05.2003 - 02.2004] ZZE13# STONE LIGHT GRAY,TRIM13 |
67620-01370-B0 |
— | ||
|
67602
|
67602
67620-01370-B1 Board Sub-Assy, Front Door Trim, Lh[05.2003 - 02.2004] ZZE13# DARK GRAY,TRIM14 |
67620-01370-B1 |
US $398.94 |
||
|
67625
|
67625
67625-01010 Bracket, Front Door Trim, Rh[05.2002 - 02.2004] ZZE13# |
67625-01010 |
US $12.67 |
||
|
67626
|
67626
67625-01010 Bracket, Front Door Trim, Rh[05.2002 - 02.2004] ZZE13# |
67625-01010 |
US $12.67 |
||
|
68171B
|
68171B
68171-01040
Weatherstrip, Front Door Glass, Inner Rh
[05.2002 - 02.2004] ZZE13# |
68171-01040 |
— | ||
|
68172A
|
68172A
68172-01040
Weatherstrip, Front Door Glass, Inner Lh
[05.2002 - 02.2004] ZZE13# |
68172-01040 |
— | ||
|
69283D
|
69283D
69283-02010-B1 Plug, Front Door Inside Handle Bezel, Rh[05.2002 - 02.2004] ZZE13# DK.GRAY,TRIM13,14 |
69283-02010-B1 |
US $1.60 |
||
|
69284F
|
69284F
69283-02010-B1 Plug, Front Door Inside Handle Bezel, Rh[05.2002 - 02.2004] ZZE13# DK.GRAY,TRIM13,14 |
69283-02010-B1 |
US $1.60 |
||
|
6777112060
|
6777112060
67771-12060 Retainer, Door Trim |
67771-12060 |
US $1.60 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9016450032
|
9016450032
90164-50032 Screw |
90164-50032 |
US $1.44 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
US $1.28 |
||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.92 |
||
